Crankshaft Seal, Change (front)
Tools:
885820 Puller
9995919 Extractor

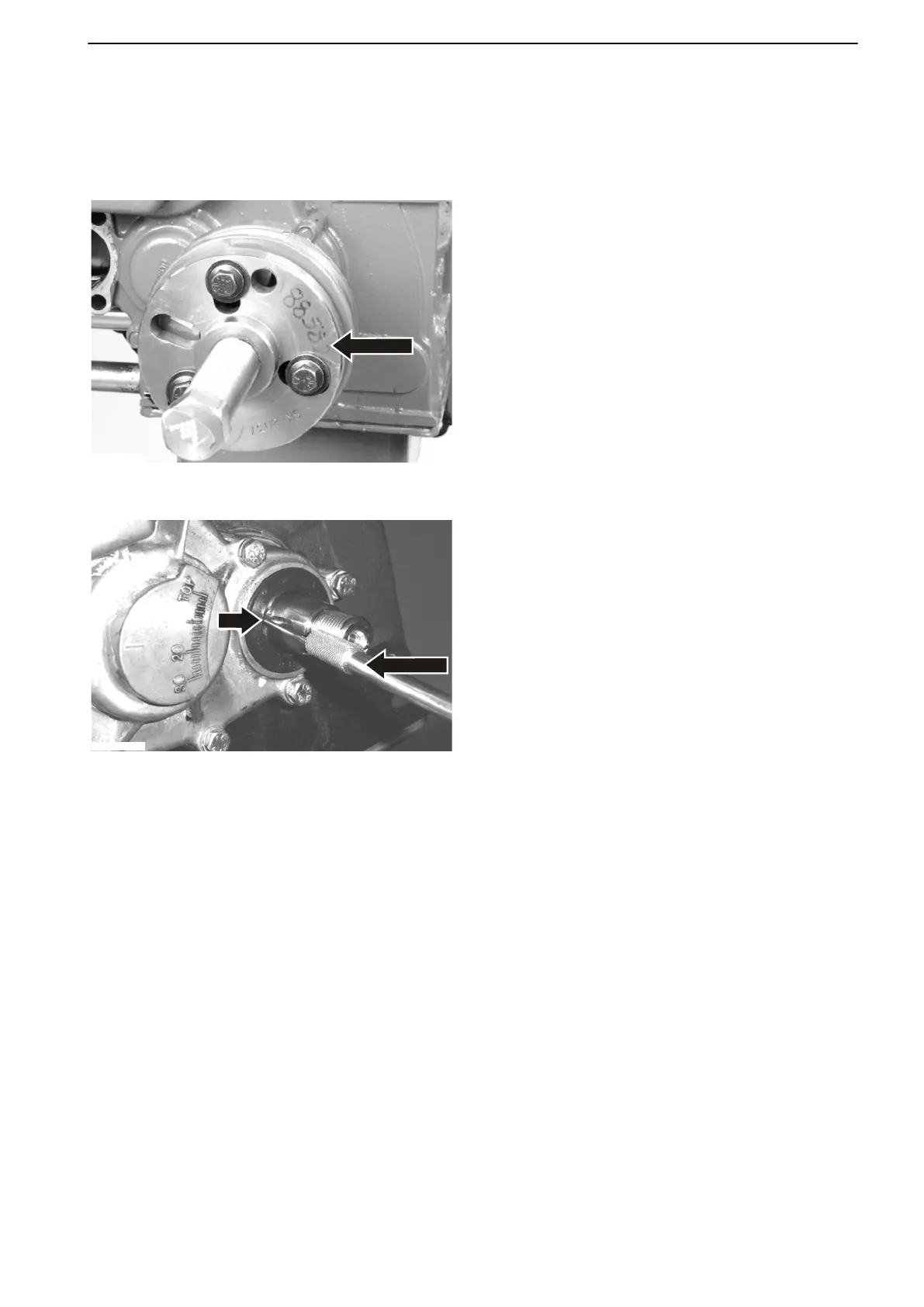

1 Undo the drive belt.
Unscrew the center nut from the crankshaft pul-
ley. Install tool 885820 Puller
on the belt pulley
and pull off the pulley.
Remove the key from the groove in the shaft.
2 Insert tool 9995919 Extractor inside the crank-
shaft seal lip (1) and pull the seal out.
Clean the crankshaft and seal surfaces. Tape
over the key groove on the crankshaft to avoid
damaging the new seal during installation.
3 Lubricate the new crankshaft seal with engine oil
and put it on the crankshaft. Drive the seal into
place with a suitable mandrel.
Remove the tape.
4 Install the belt pulley key on the crankshaft.
Install the belt pulley and tighten it to the fasten it
with the center nut to the specified torque; refer
to Tightening torques page 9.
Install and adjust the drive belt.
