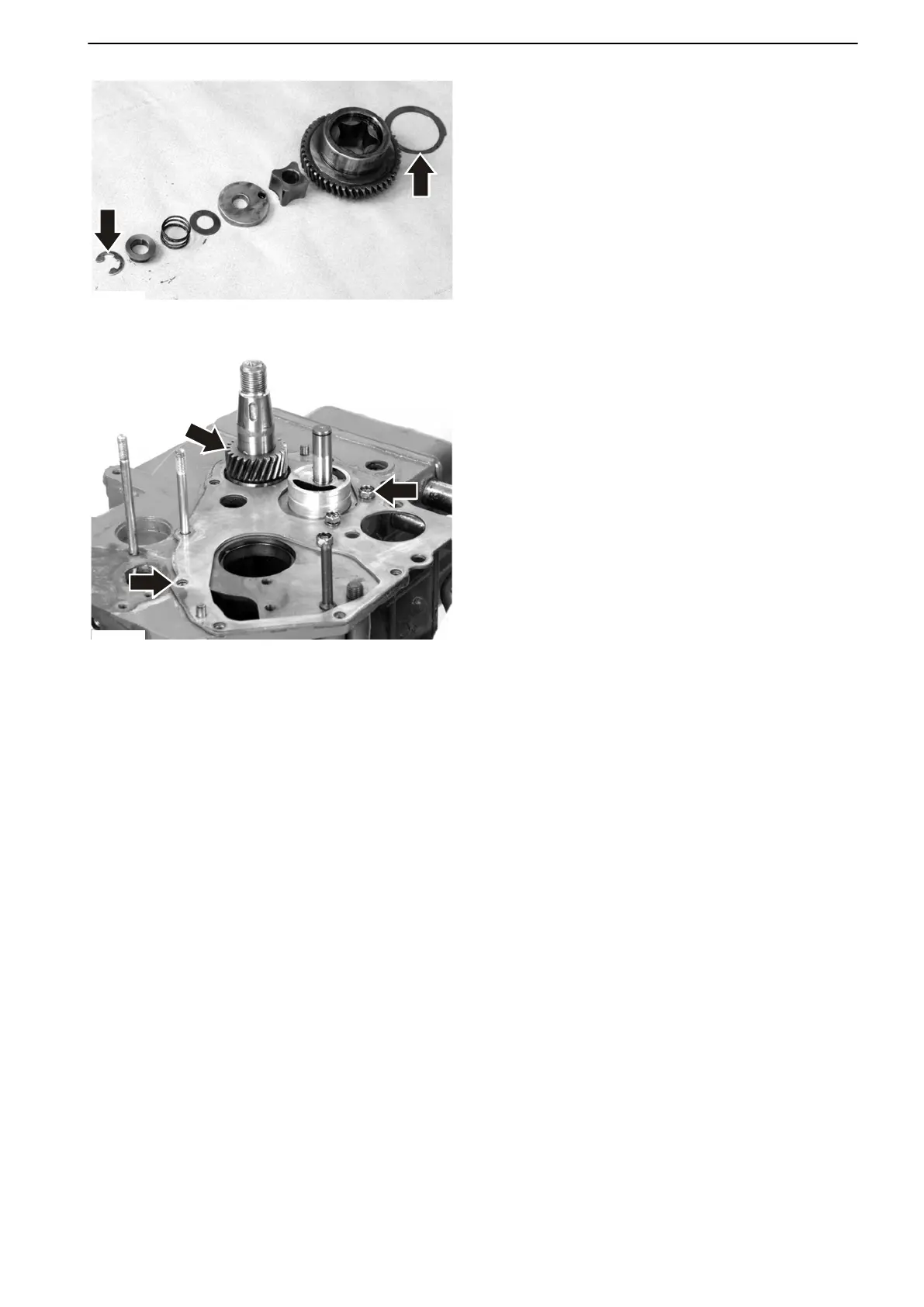

8 Remove the retainer ring (1) on the oil pump
shaft. Remove
all oil pump components. Note the
spacer washer (2) inside the oil pump gear.
9 Undo the remaining bolts (1). Remove the timing
gear plate (2).
Remove the crankshaft gear (3) with a puller.
Remove the gear wheel and its Woodruff key.
21-5 Timing Gears and Shaft
47701798 05-2013 © AB VOLVO PENTA 79
