Volvo Penta D1-13 - Timing Gear Installation

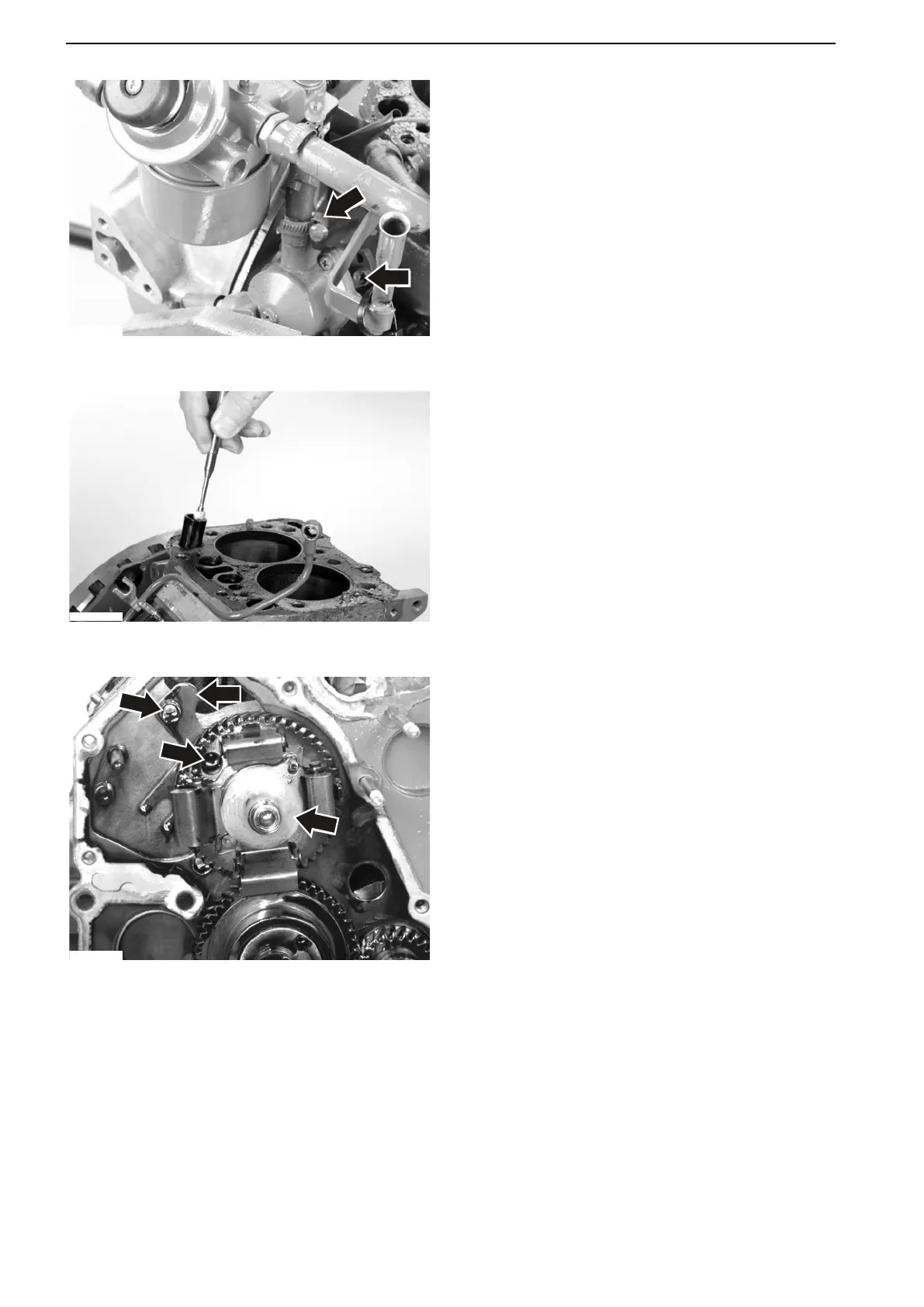

5 Undo the fuel pipe from the fuel filter (1
). Undo the
fuel feed pump screws (2). Wipe dry the fuel that
runs out.
6 Remove the valve lifters with tool 885822 Mag-
netic pen.
IMPORTANT!
Mark the valve lifters so that they are put back in
the same
positions. The D1-20 and D2-40 engines
have certain valve lifters that are beveled.
7 Rotate the
camshaft until the socket cap screw (1)
is visible in the hole in the camshaft drive gear.
Unscrew the socket cap screw and hex head bolt
(2). Remove the lock plate (3).
Remove the camshaft regulator sleeve (4).
Pull the camshaft out carefully.
IMPORTANT!
There is a risk of damaging the inner camshaft
bearing with a camshaft lobe if the camshaft is
pulled out with force.
2
1
P0008085
P0008086
1
2
3
4
P0008087
21-5 Timing Gears and Shaft
78 47701798 05-2013 © AB VOLVO PENTA
