Volvo Penta D1-13 - Page 79

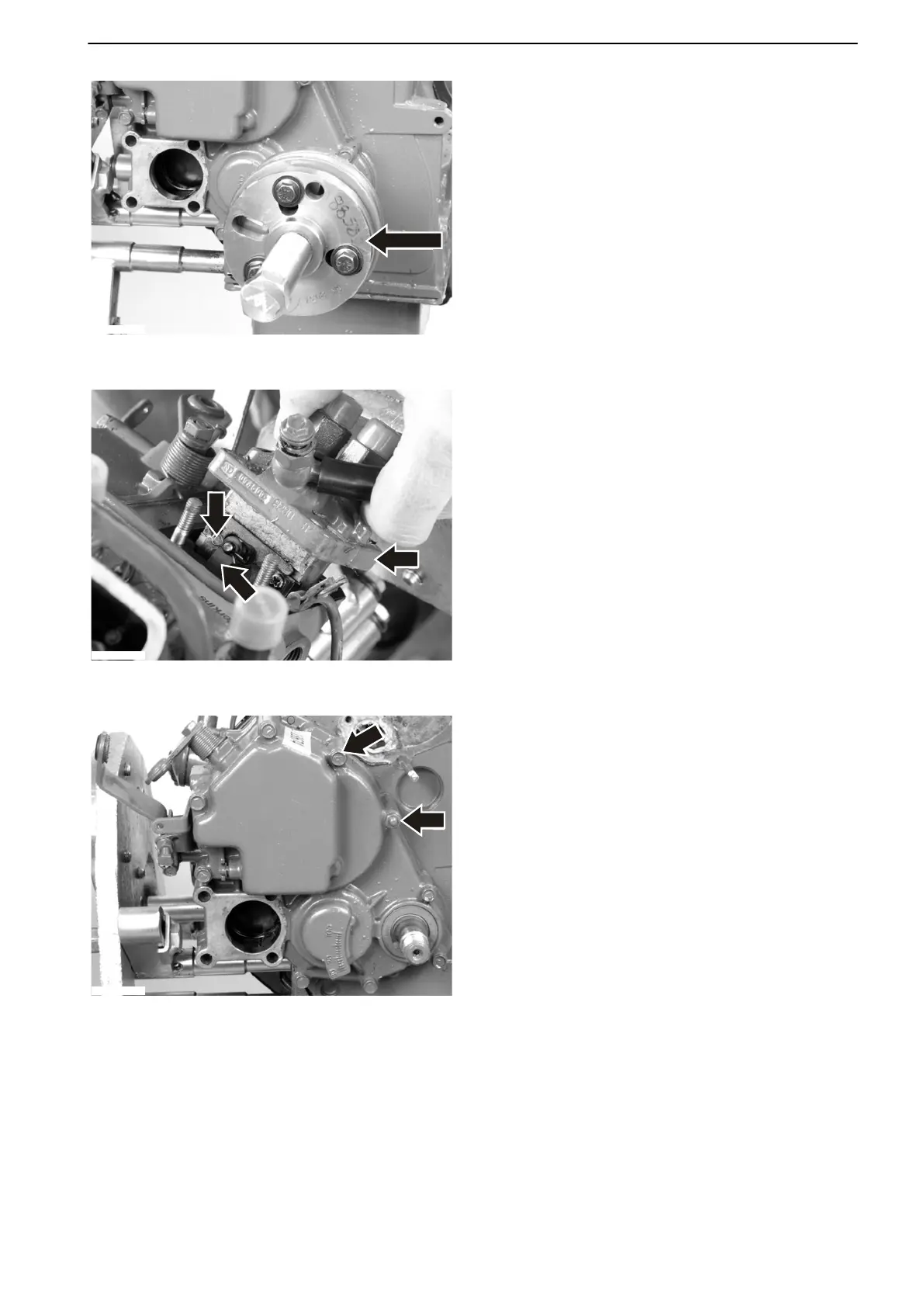

2 Unscrew the
center nut from the pulley. Place tool
885820 Puller on the pulley and remove it.
Remove the key from the groove in the shaft
3 Unbolt the injection pump (1). Lift it up until the
lock clip (2) is accessible. Undo the clip and
release the control rod (3).
4 Undo the timing gear cover bolts (1) and nut (2).
Remove the cover.
885 820
P0008082
1
2
3
P0008083
2
1
P0008084
21-5 Timing Gears and Shaft
47701798 05-2013 © AB VOLVO PENTA 77
