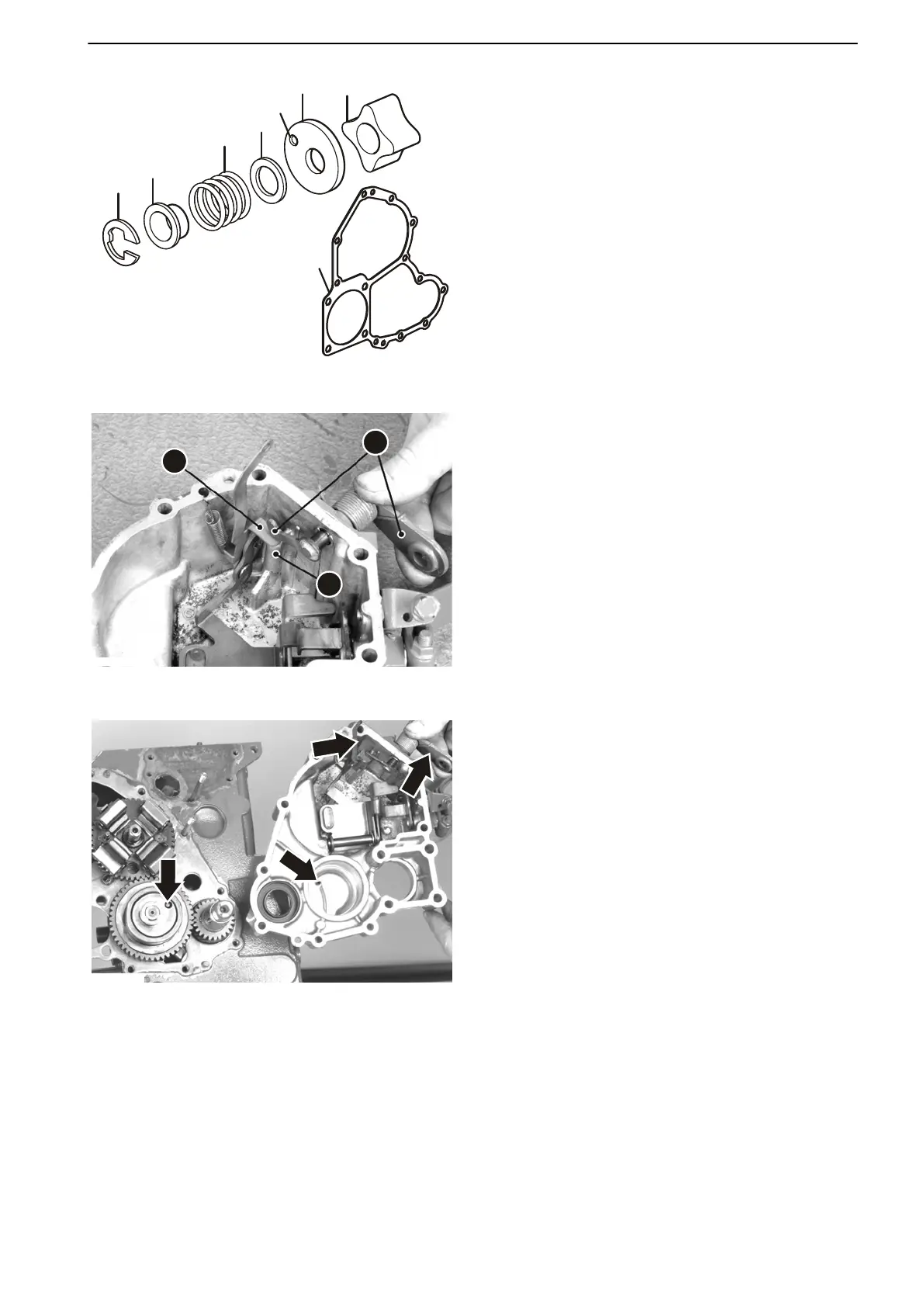

4 Install the pump rotor (1), end washer (2), shim
(3), spring (4) and bush (5) in the oil pump gear
wheel. Install the retainer ring (6) on the shaft.
NOTICE! Note
that the end washer (2) has a hole
(7) that must mate up with the guide pin in the
timing gear cover.
Install a new gasket on the timing cover.
NOTICE! If the gasket has a center section (8),
this must be cut away.
5 Put the control rod (1) on the heel (2) in the timing
gear cover. Turn the stop arm (3) round so that
the control rod is held against the heel.
6 Install the timing gear cover at the same time as
the control rod (1) is held fast by the stop arm (2).
Put the timing gear cover in place. Make sure that
the control rod ends up in the correct position and
that the pin (3) engages in the hole (4) in the oil
pump end washer.
Bolt on the timing gear cover.
21-5 Timing Gears and Shaft
47701798 05-2013 © AB VOLVO PENTA 81
