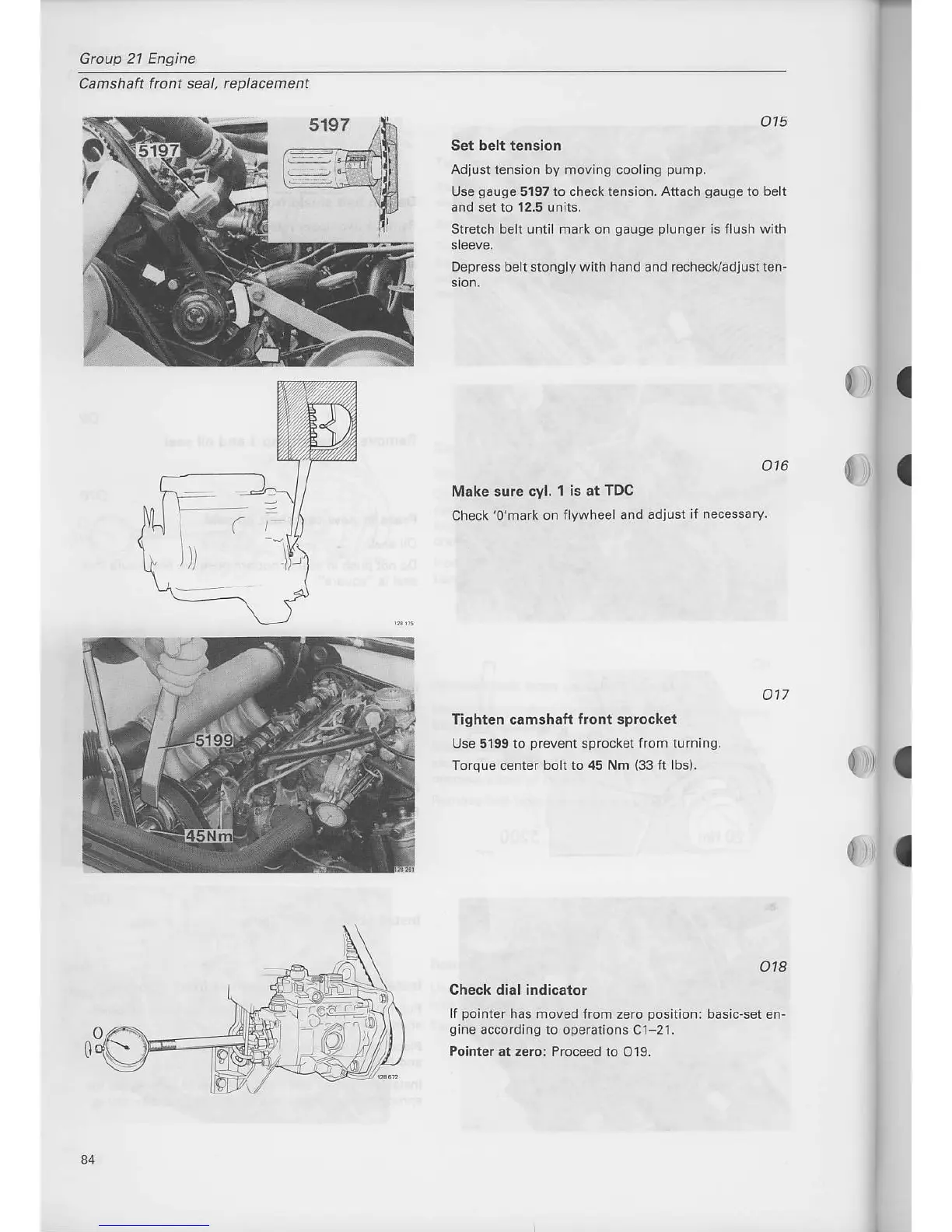

Group 21 Engine
Camshaft front seal, replacement
015
Set
belt
tension
Adjusl tension by moving cooling
pump.
Use
gauge
5197 to check tension. Attach
gauge
10 belt
and set to 12.5 units.
Stretch belt until mark on
gauge plunger
is flush with
Depress beit stongly with hand and rechecuadju st ten-
{r
|0i
(
(
o16
Make sure
cyl. 1
is ai TDC
Check'o'mark on
flywheel and
adjust if necessarv
o17
Tighten
camshaft
front sprocket
LJse 5199 to
prevent
sprocket fiom
turning.
TorqLre center bolr to 45 Nm
(33
ft lbs).
o18
Check dial indicator
lf
poinler
has moved
from zero
position:
basic'set en'
gine
accofding to operalions C1-21.
Pointer at zeror Proceed to
O19.
{,r
I
tl
t,
I
il
