SECTION 7 TECHNICAL SPECIFICATIONS

7-10 DD-29/31HF/38HF Vibratory Asphalt Compactors

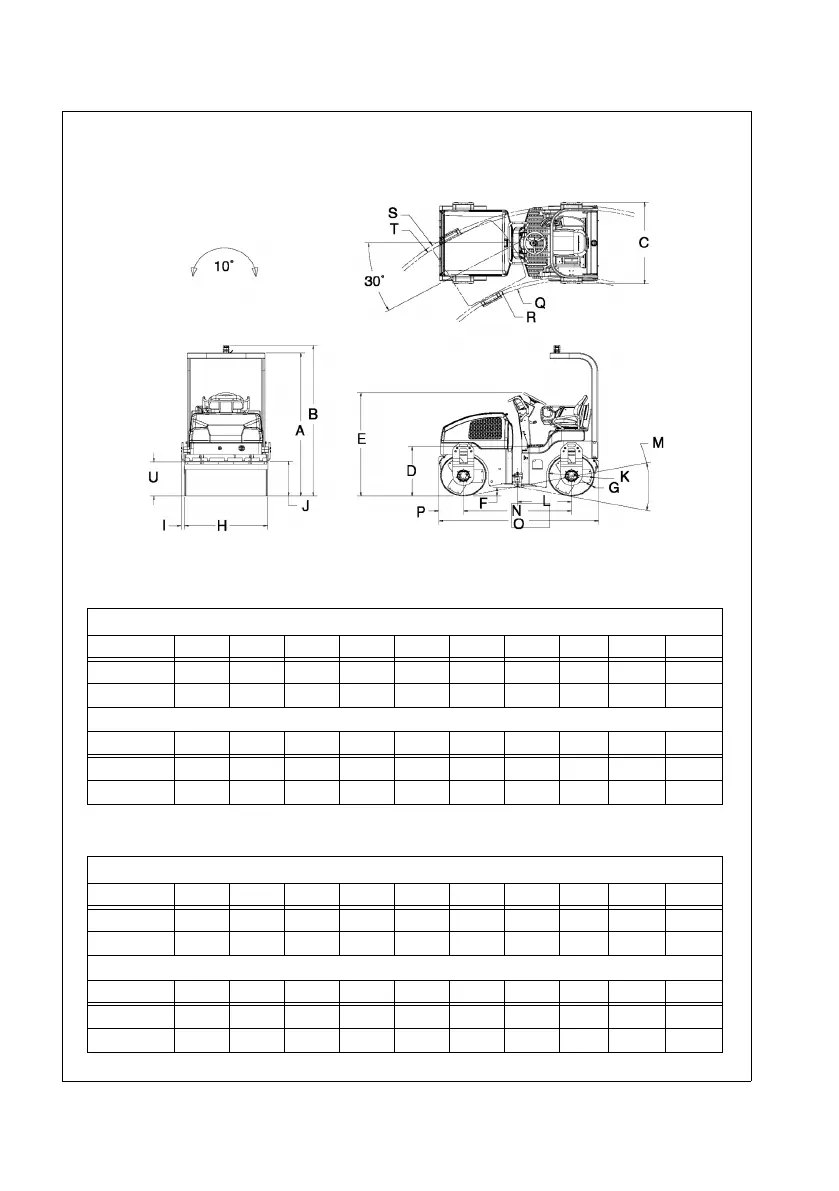

MACHINE DIMENSIONS DD-29 and DD-31HF

Figure 7-1

DD-29

Units ABCDEFGHI J

Millimeters 2531 2663 1313 897 1824 152 12 1200 57 612

Inches 99.7 104.8 51.7 35.3 71.8 5.9 .47 47.2 2.2 24.1

Units KLMNOPRSTU

Millimeters 732 862 23° 1725 2556 392 2619 -- 3819 481

Inches 28.8 33.9 68.9 100.6 15.4 103.1 -- 150.4 18.93

DD-31HF

Units ABCDEFGHI J

Millimeters 2533 2665 1313 899 1826 105 14 1200 57 614

Inches 99.7 104.9 51.7 35.5 71.9 4.13 .55 52 2.24 24.17

Units KLMNOPQST U

Millimeters 736 483 23° 1725 2556 392 2559 3879 -- 483

Inches 29 19 23° 67.9 100.6 15.4 103 150.4 -- 19
