MAINTENANCE INSTRUCTIONS SECTION 5
DD-29/31HF/38HF Vibratory Asphalt Compactors 5-17

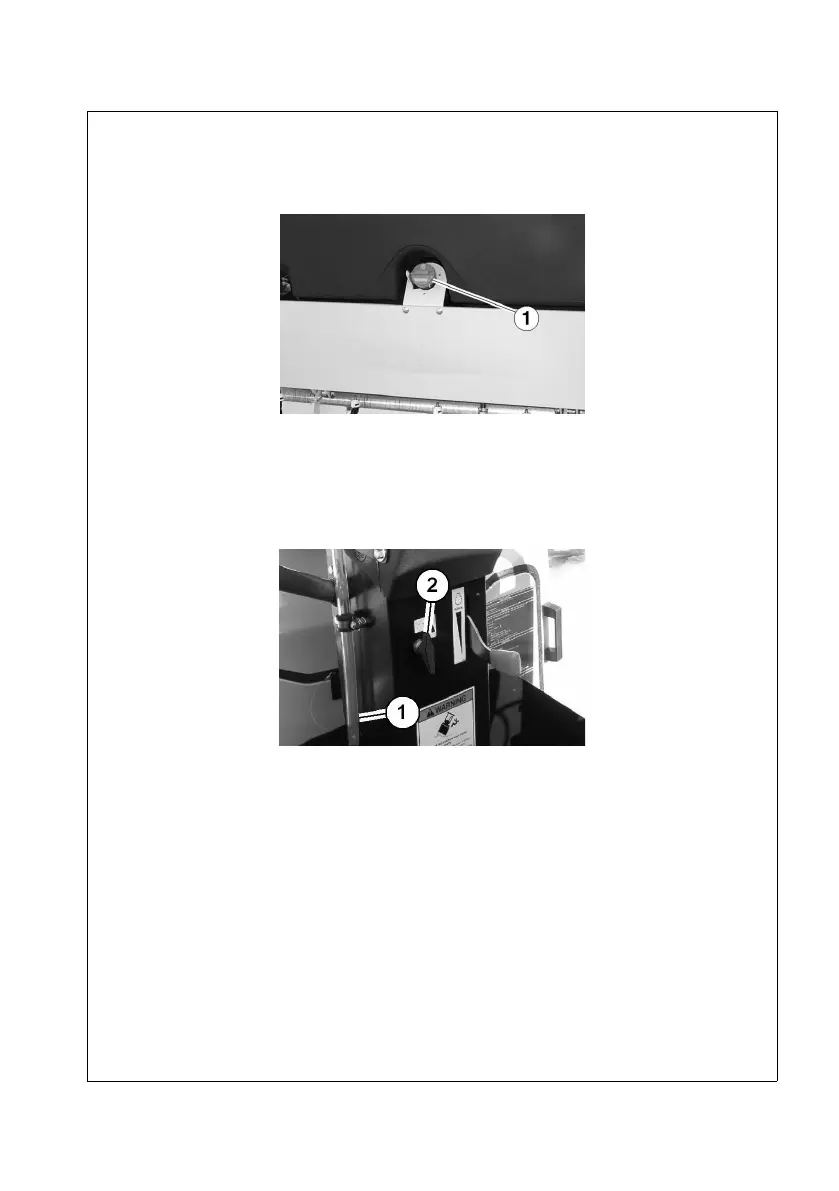

2. If fuel is required, remove fuel cap (1, Figure 5-17) and add No. 2 diesel to the
tank.
Figure 5-17
Check Water Tank Level
1. Check the water level using sight gauge (1, Figure 5-18).
Figure 5-18
NOTE: During normal operation, maintain the tanks full of clean water at
all times. Do not allow the tanks to become empty for any reason other
than for cleaning.
The water supply for the water spray system is held in tank
(1, Figure 5-19). The water tank also functions as the operator platform.
