MAINTENANCE INSTRUCTIONS SECTION 5
DD-29/31HF/38HF Vibratory Asphalt Compactors 5-23
Check Air Cleaner System Integrity and Filter Elements
To verify that the air cleaner system is functioning properly, refer to Page 5-5 through
Page 5-9 for checks and procedures.
Check Eccentric Oil Level
1. Park the machine on a level surface with the drum indexes (1, Figure 5-28) in
the Twelve o'clock and Six o'clock positions. This places the check plug (2) and
fill plug (3) in the proper orientation.

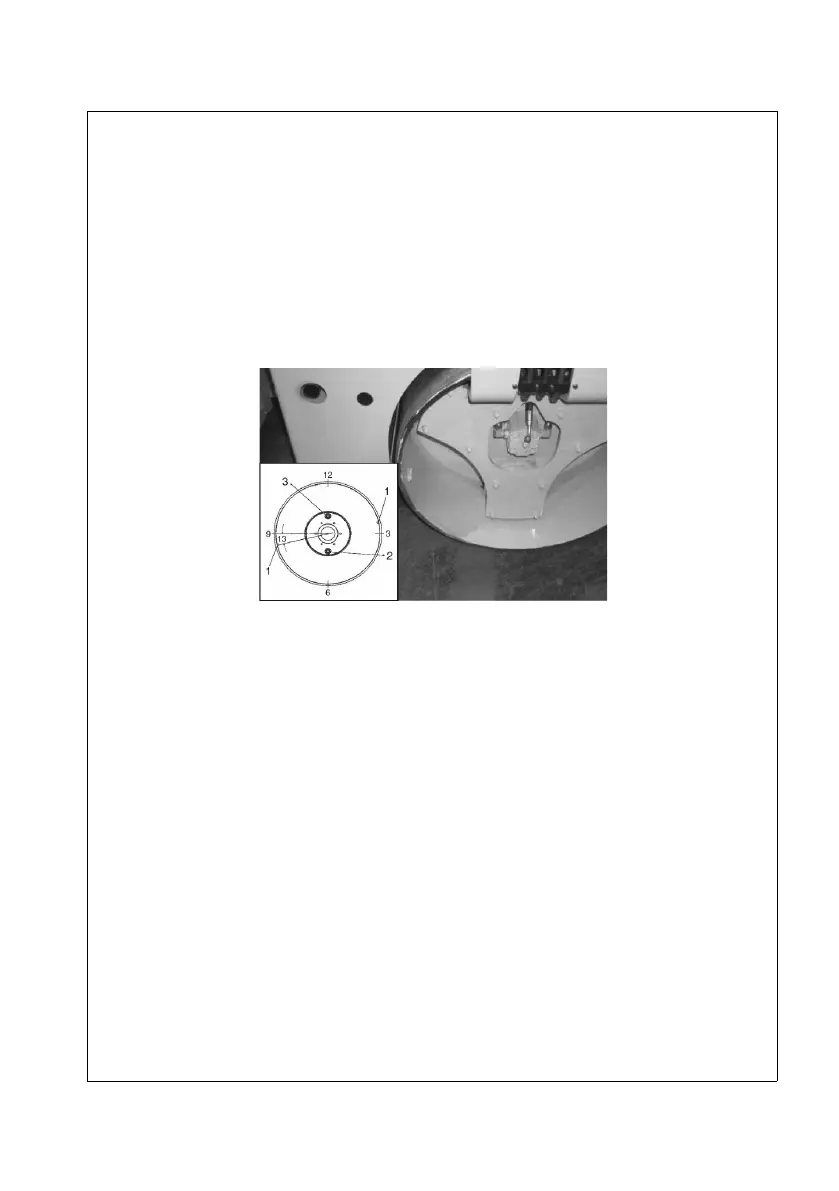

Figure 5-28
2. Remove check plug (2, Figure 5-28). Oil should be level with the bottom of the
hole.
3. If additional oil is required, remove fill plug (3, Figure 5-28) and add Synthetic
Component Lubricant oil as required until oil flows from the check hole.
4. Install plugs and wipe up excess oil.
