MAINTENANCE INSTRUCTIONS SECTION 5
DD-29/31HF/38HF Vibratory Asphalt Compactors 5-13
Check all Shock Mounts
1. Check all shock mounts periodically for looseness or deterioration. Item 1 in
Figure 5-11 shows the Vibration motor side shock mounts.

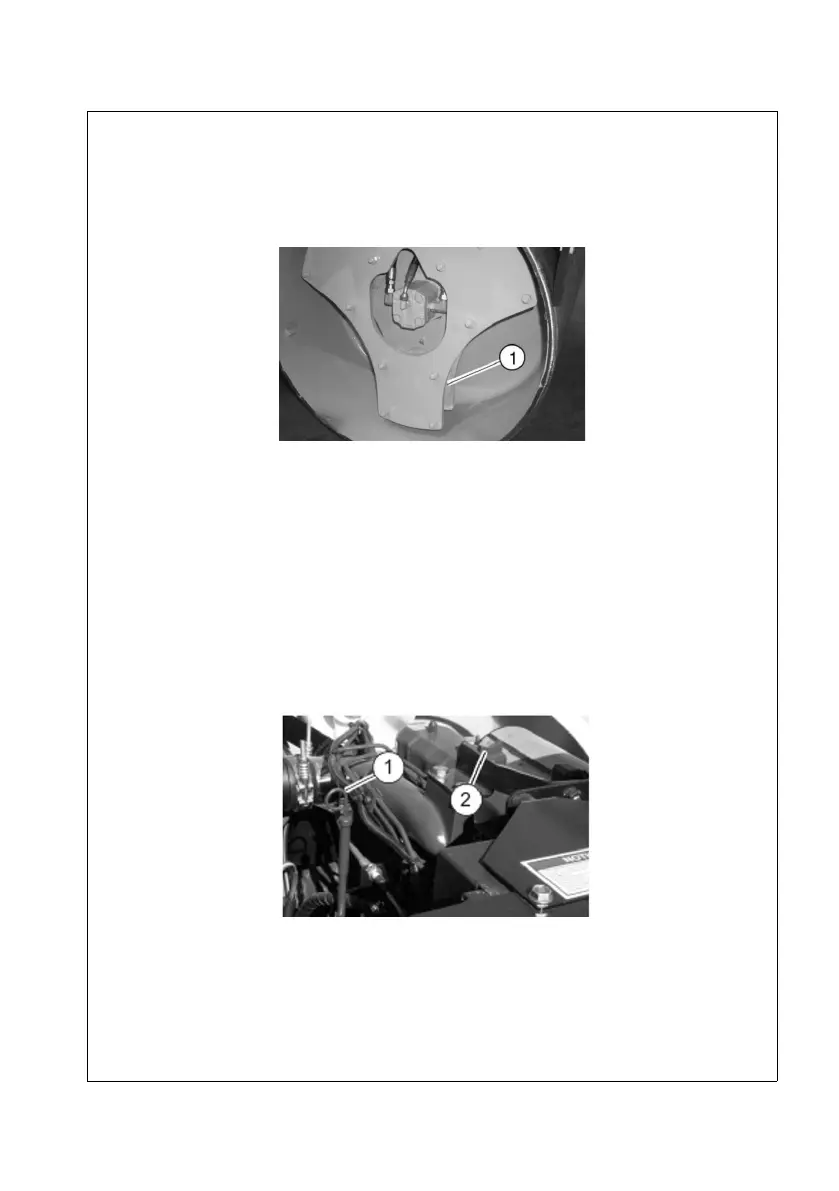

Figure 5-11
2. Replace shock mounts (one at a time) that have torn or excessively cracked
rubber. Torque all capscrews and nuts as necessary.
10 HOUR OR DAILY ROUTINE MAINTENANCE
Check Engine Oil Level
1. Park machine on stable, level surface and shut down engine.
2. Pull out dipstick (1, Figure 5-12) and wipe it clean with a lint-free, dry cloth.
Push dipstick back into engine.
Figure 5-12
3. Pull out the dipstick again. The oil level must be between the full - top mark and
low-bottom mark.
4. If oil level is low, add SAE 15W-40 oil through the fill area (2, Figure 5-12) to
bring oil to the proper level.
5. Check oil level again after engine has run for about 1 minute. Add oil if
necessary.
