TECHNICAL SPECIFICATIONS SECTION 7

DD-29/31HF/38HF Vibratory Asphalt Compactors 7-11

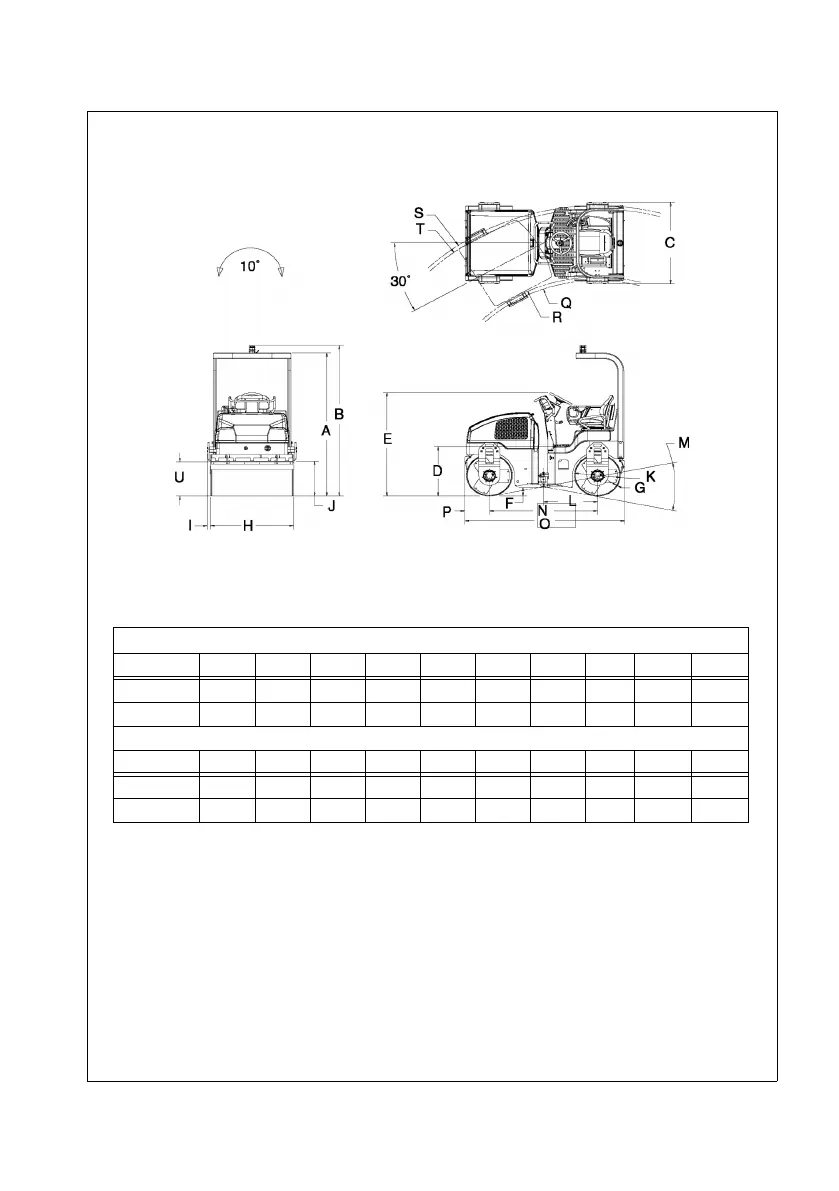

MACHINE DIMENSIONS DD-38 HF

Figure 7-2

DD-38HF

Units ABCDEFGHI J

Millimeters 2536 2668 1435 901 1828 107 16 1320 57 616

Inches 99.8 105 56.5 35.5 72 4.2 .63 52 2.2 24.25

Units KLMNOPRSTU

Millimeters 740 862 19° 1725 2556 392 2559 -- 3879 608

Inches 29.13 33.9 19° 67.9 100.6 15.4 100.75 -- 152.7 23.9
