SECTION 4 OPERATING INSTRUCTIONS
4-6 DD-29/31HF/38HF Vibratory Asphalt Compactors

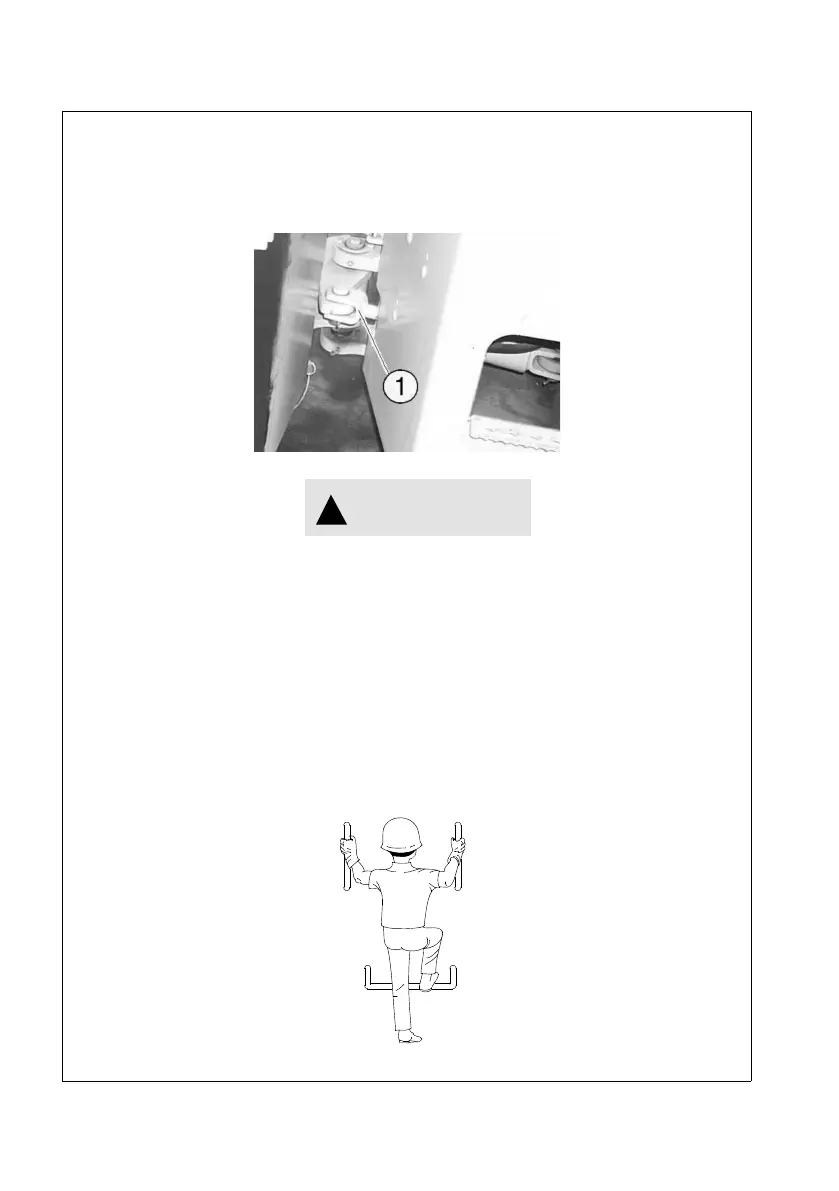

11. Check wear conditions on mounting pins and bushings of the steering cylinder
(1, Figure 4-7). Any wear in the pins and bushings should be noted and proper
personnel notified.
Figure 4-7
CAUTION
!
Any machine defects should be reported to the proper personnel.
Defects must be corrected before operating the machine.
Checks and verifications of machine controls must be performed prior to
operating the machine.
12. Mount the compactor maintaining a three-point contact, as shown in Figure 4-8.
NOTE: The machine contains a circuit that will allow machine to start only
if the propulsion control (13, Figure 4-9) is in neutral, the brakes are
applied, and the Emergency Stop switch is reset.
Figure 4-8
OM3_point_man
