OPERATING INSTRUCTIONS SECTION 4
DD-29/31HF/38HF Vibratory Asphalt Compactors 4-13

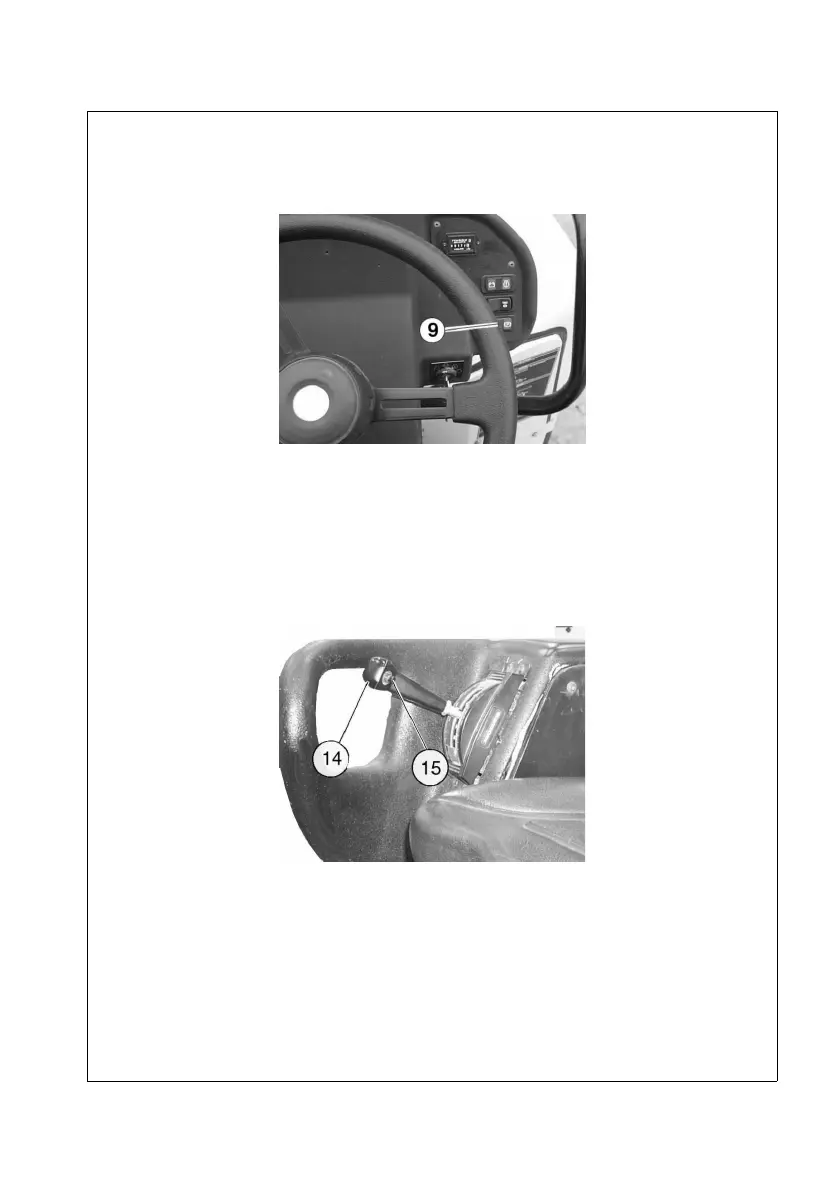

4. Release the parking brake by pushing inward on the left side of switch
(9, Figure 4-19). Observe that the switch indicator light goes out.
Figure 4-19
NOTE: Operator must be seated when Park Brake is released or engine
will stop after approximately two seconds.
5. Slowly move propulsion control (14, Figure 4-20) to achieve desired direction
and safe speed of travel as determined by the conditions. The further the
control is moved from the STOP position the greater the speed in that direction.
Figure 4-20
