OPERATING INSTRUCTIONS SECTION 4
DD-29/31HF/38HF Vibratory Asphalt Compactors 4-21
1. Chock the drums.

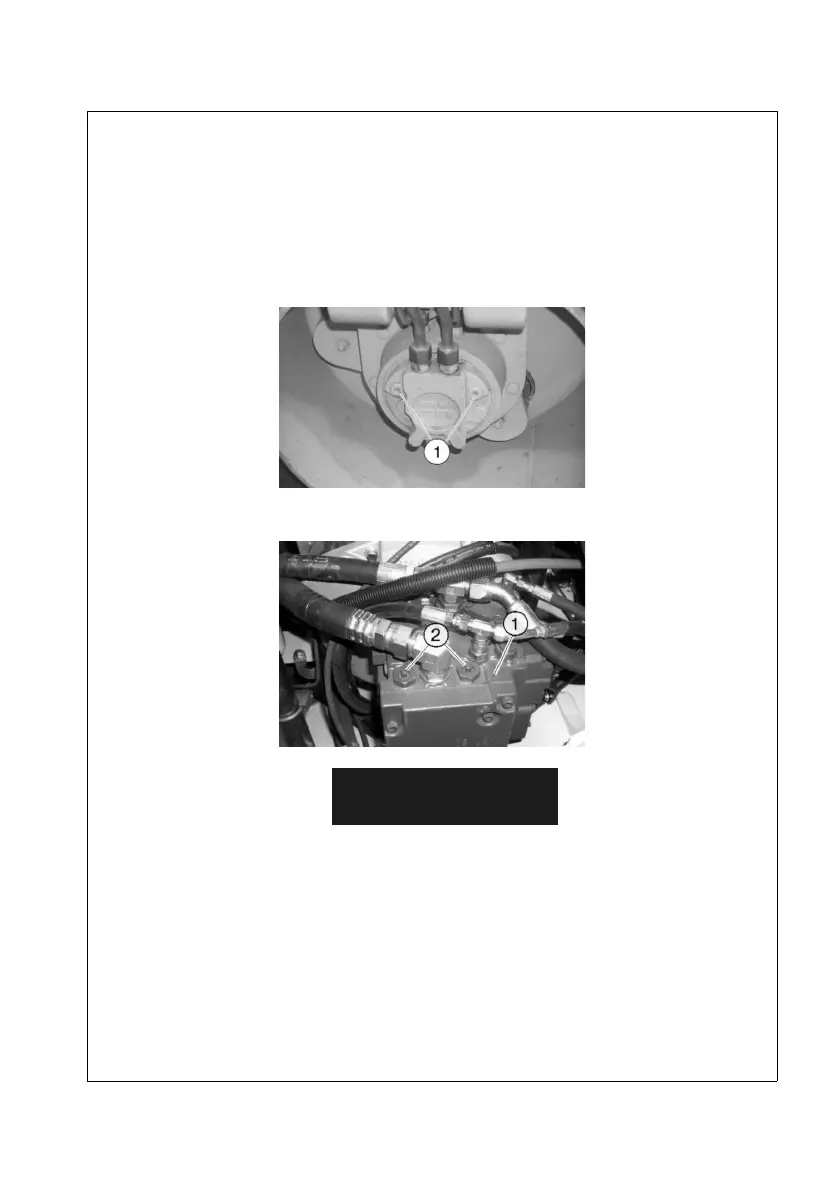

2. Remove plugs (1, Figure 4-29) to access the brake release screws. Turn the
release screws clockwise alternately, ½ turn each, until the brake releases.
Repeat this procedure for the remaining drum.
3. Open the hood and disengage the propulsion pump (1, Figure 4-30) by
pressing down on buttons (2).
Figure 4-29
Figure 4-30
NOTICE
Use only appropriate drawbars for towing requirement.
Maximum towing speed is 2.5 km/h (1.5 mph) and maximum towing
distance is 300 meters (984 feet).
4. Attach an appropriate towing vehicle using appropriate chains/drawbar which
can be secured in position at the selected tow points on the machine. Remove
the chocks.
5. Tow machine off site at a very slow speed for a short distance (maximum
300 meters [984 feet]).
