| Start-up
30 | CO2 Incubator Basic VWR
Chapter 5
Support rail installation/removal:

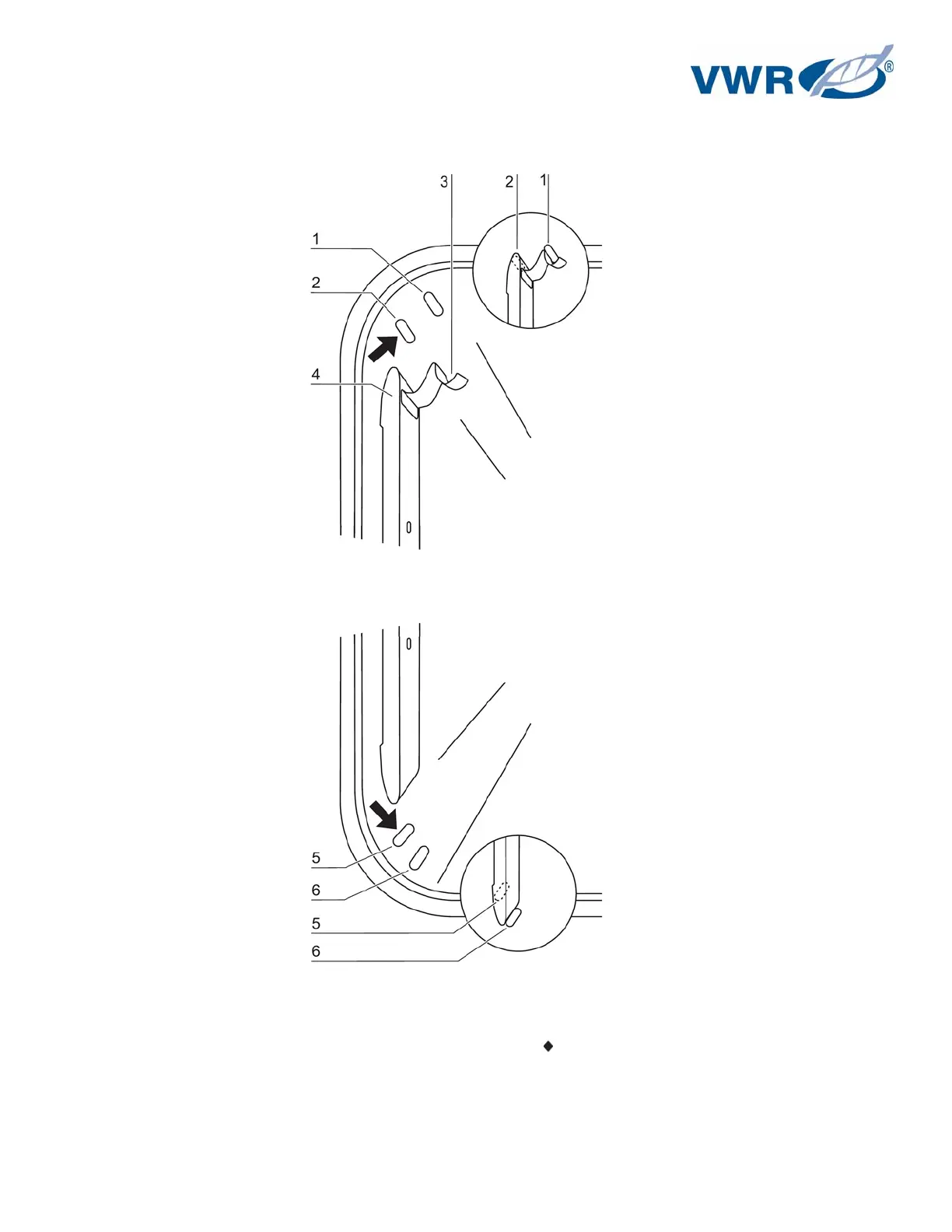

Figure 10 – Support rail installation/removal
The support rails are held at the sides by embossing [2] and [5] and secured by the embossing [1]
and [6]. The support rails marked with ( ) are inserted at the rear panel of the device with the
locksprings [3] facing upward.
