Components
Function
The external sensor, which is fastened to the existing wheel bolts, enables a wheel change without the
need to recongure the system. The external sensor is also predestined for retrotting due to the way
it is installed. Please note that special external sensor and PA tube variants must be used for different
rims and installation locations.
With twin wheels and Super Single rims, problems may occur with the radio transmission due
to the immersion depth. To ensure a good quality of reception, T-shaped external sensors
should be used (WABCO part numbers: 960 731 031 0 or 960 731 041 0).
"External sensors WM2" variants

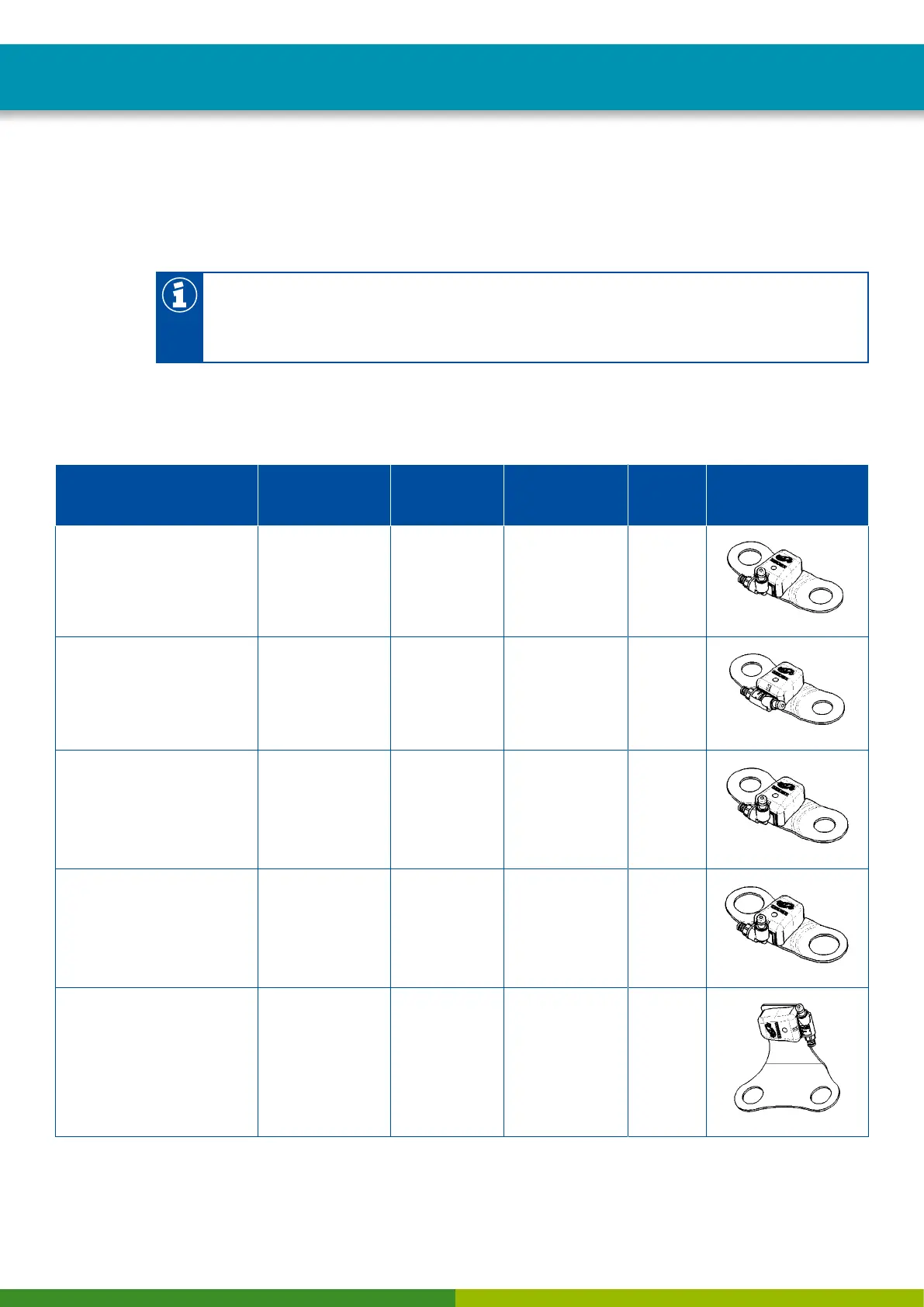

The various types of external sensors are illustrated in the table:
APPLICATION
WABCO PART
NUMBER
HOLE,
WHEEL
BOLT BOLT HOLE Ø ANGLE FIGURE
Trailer: Independent wheel
(no Super-Single)
960 731 011 0 26 mm 335 mm 0°
Trailer: Independent wheel
(no Super-Single), 20°
for special purposes (e.g.
Iveco)
960 731 013 0 23 mm 335 mm 0°
Trailer: Independent wheel
(no Super-Single), 23 mm
pitch circle diameter
960 731 017 0 23 mm 335 mm 0°
Trailer: Independent wheel
(no Super-Single)
960 731 021 0 32 mm 335 mm 0°
Twin tires, Super-Single 960 731 031 0 26 mm 335 mm 70°
