3-64 BA 1404 en – Edition 2.7 * * 1404b340.fm
Operation
Swiveling the boom to the left:
☞ Press the left-hand pedal 4 to the left
➥ Boom swivels to the left
Swiveling the boom to the right:
☞ Actuate the left foot pedal 4 to the right
➥ Boom swivels to the right
Auxiliary hydraulics
The pedal is not locked by folding up the control lever base!
Risk of injury due to unintentional actuation of the pedal.
☞ Actuate the pedal carefully, otherwise the boom is swivelled earlier than
required.
☞ In order to avoid unintentional actuation of the auxiliary hydraulics, release
the pedal once swivelling is over.
Actuating the auxiliary hydraulics:
Oil flow in 1st direction:
☞ Actuate the right foot pedal 3 to the left
Oil flow in 2nd direction:
☞ Actuate the right foot pedal 3 to the right

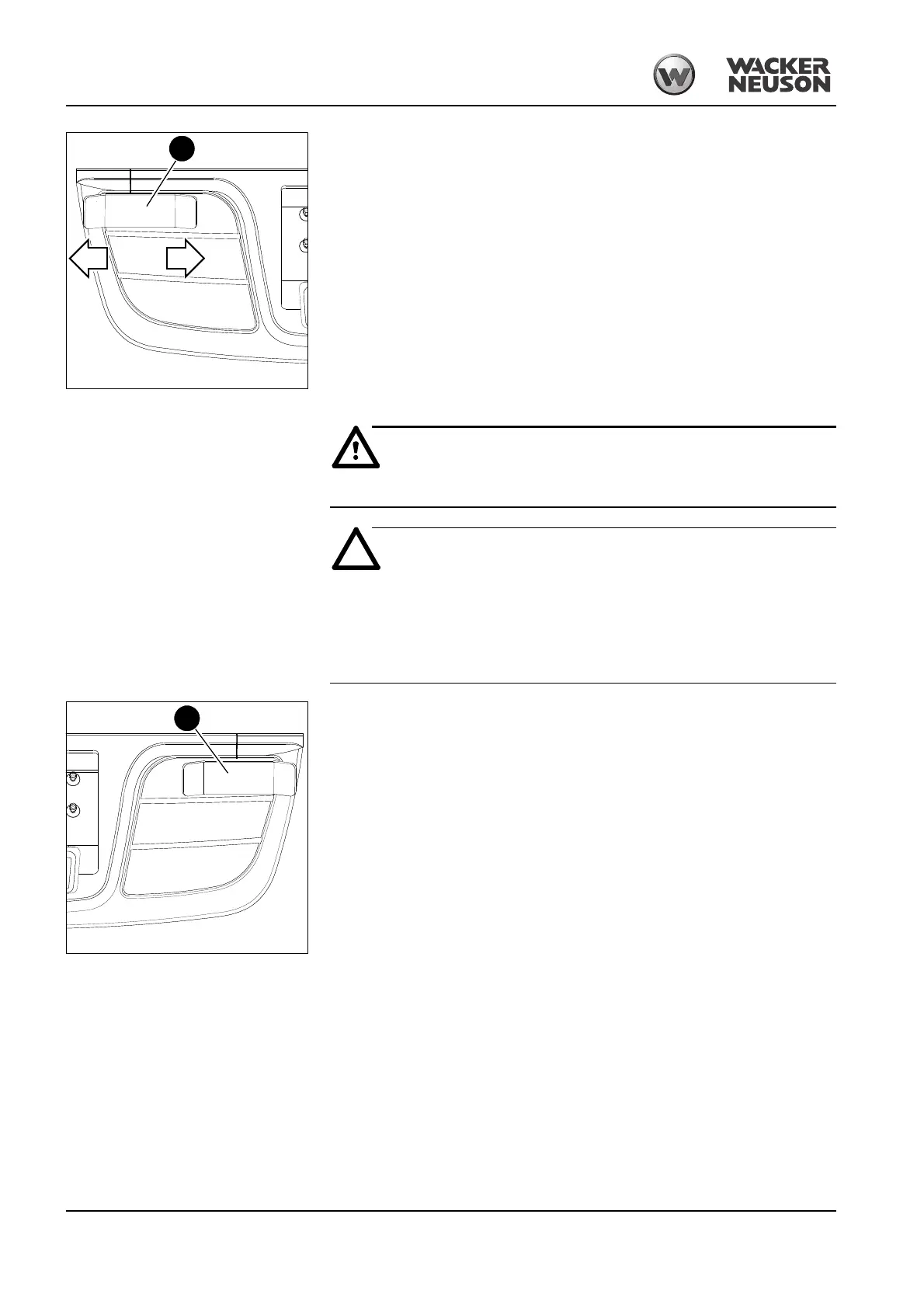

Abb. 132: Swivel controls
4
Abb. 133: Auxiliary hydraulics
3
