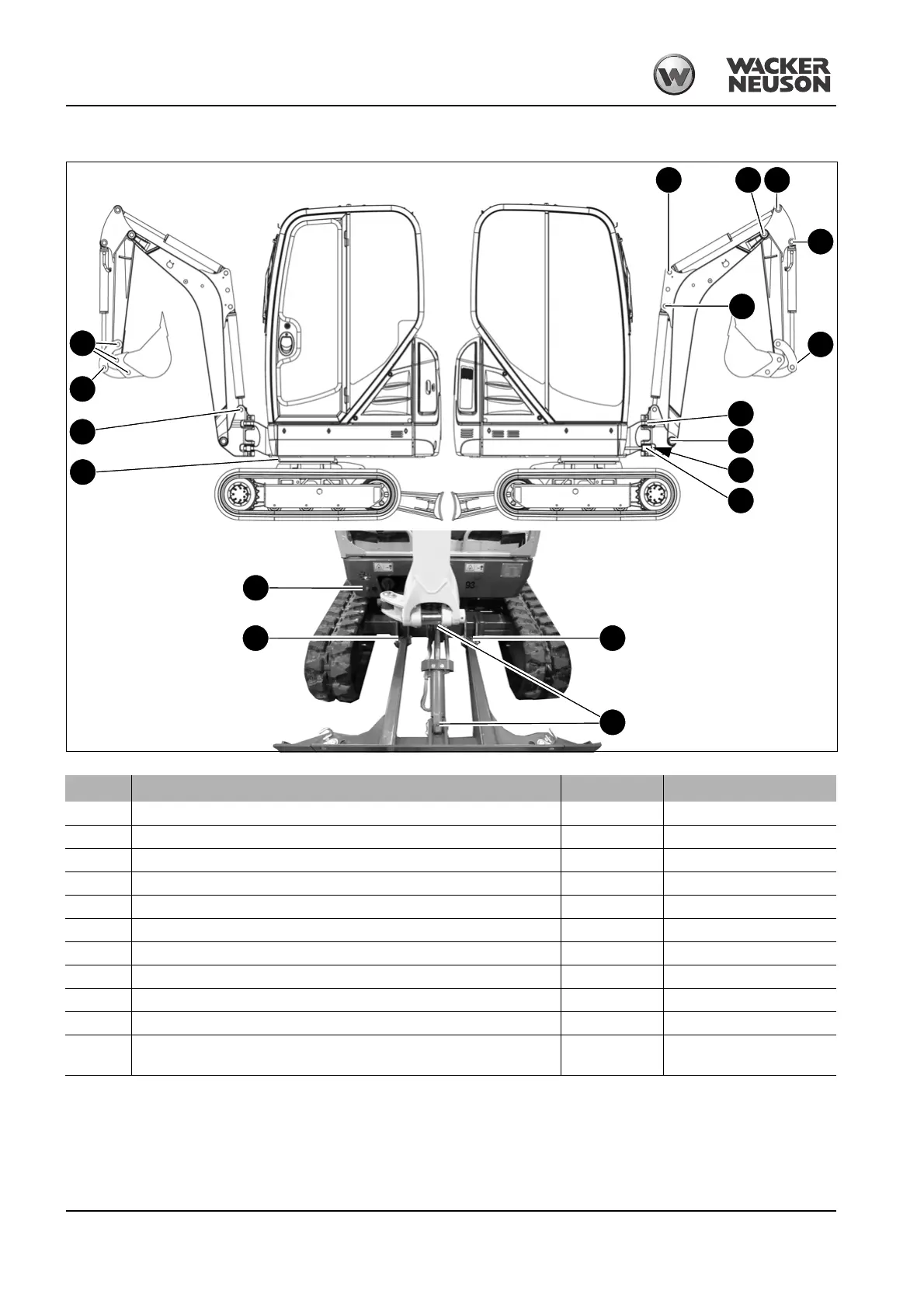

5.10 Overview of lubrication points
11
5
66
1
3
2
4
1
2
3
4
9
9
10
7
8
11
Pos. Lubrication point Quantity Interval
1
Bucket cylinder
2 Daily
2
Stick cylinder
2 Daily
3
Boom cylinder
2 Daily
4
Boom
2 Daily
5
Stabilizer blade cylinder
2 Daily
6
Stabilizer blade
2 Daily
7
Stick
3 Daily
8
Joint rod
1 Daily
9
Swiveling console
2 Daily
10
Swiveling cylinder
2 Daily
11
Ball bearing race of live ring – see chapter Lubricating the ball bearing
race of the live ring on page 5-25
