Operation
Front window (from serial number AG02423)
Opening and closing the front window:
Crushing hazard!
☞ Stay clear (extremities, clothing) of the window run and of the window.
☞ Always open and close the front window by means of both handles!
☞ Always make the window lock into the recesses as you open and close it!
☞ Raise the control lever base before opening or closing the front window, in
order to avoid any unintentional operation or movement of the machine!
Opening/closing the front window

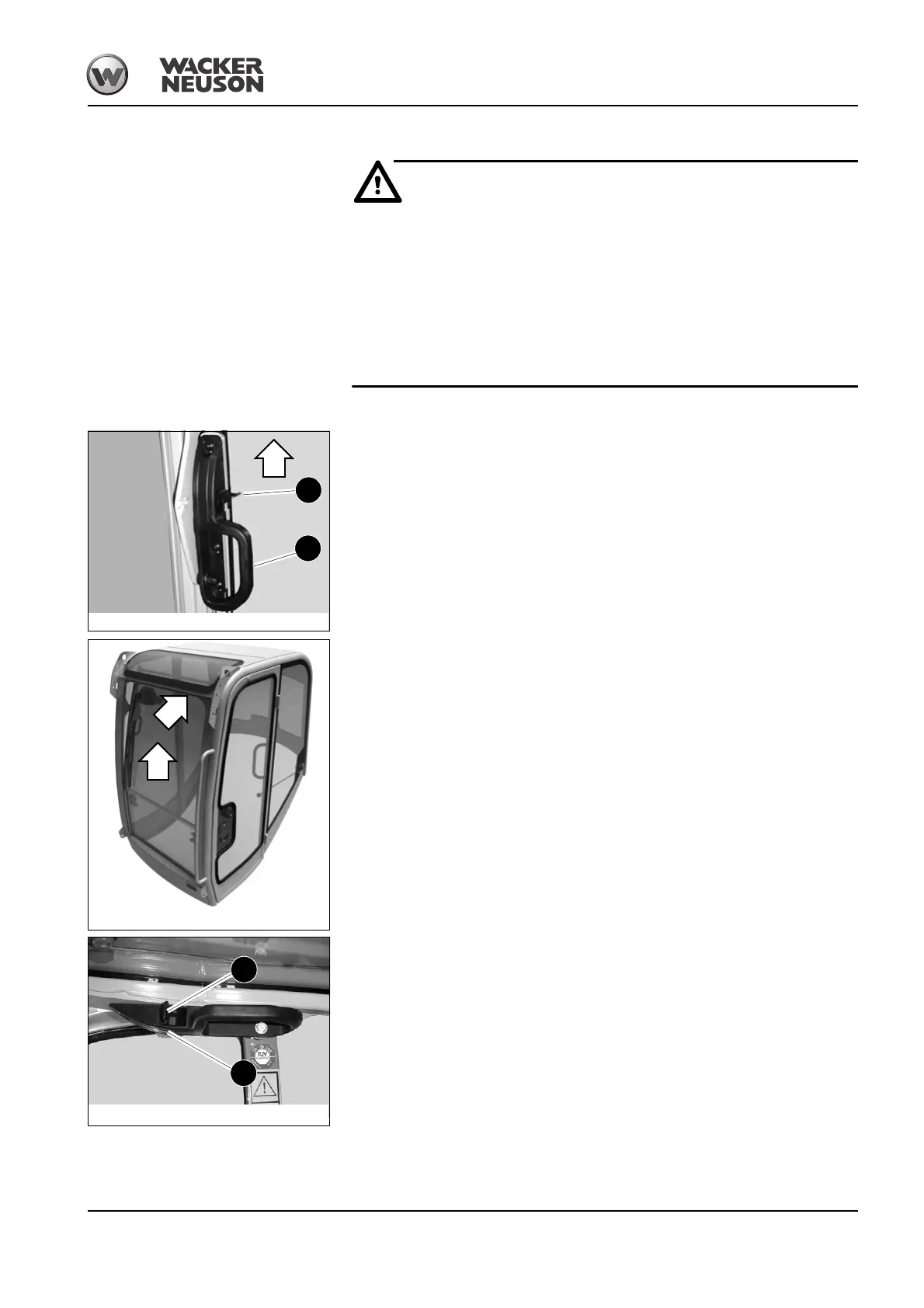

☞ Keep levers A pressed on the left and right, and pull the front window upward with both
handles B.
☞ Release levers A and make them lock into place in both recesses C.
Close the front window in the reverse order.
Abb. 95: Opening the front window
A
B
C
A
Abb. 97: Opening the front window
