Operation
Starting machine travel After starting the engine:
☞ The alternator charge indicator light goes out
☞ Slowly actuate the drive levers or the drive pedals
➥ Machine travel starts
Drive levers
Accident hazard due to incorrectly rotated upper carriage!
If rotated incorrectly, the upper carriage blocks the visibility of the travel path.
☞ Before starting machine travel on a construction site, align the upper car-
riage so that the operator has an unrestricted view of the travel path.
Accident hazard! The machine moves in the opposite direction if the
upper carriage is rotated by 180°!
Can cause serious injury or death.
☞ Slowly and carefully actuate the drive levers/pedals
The stabilizer blade side is the front side.
Raise the attachment and the stabilizer blade.
The machine can be moved either with the drive levers or with the drive pedals. Lock the
upper carriage when traveling over longer distances.
Forward or reverse drive speed depends on the position of the drive levers or drive pedals.
Ensure that both tracks move as you change direction, otherwise the rubber tracks
are subject to increased abrasion.

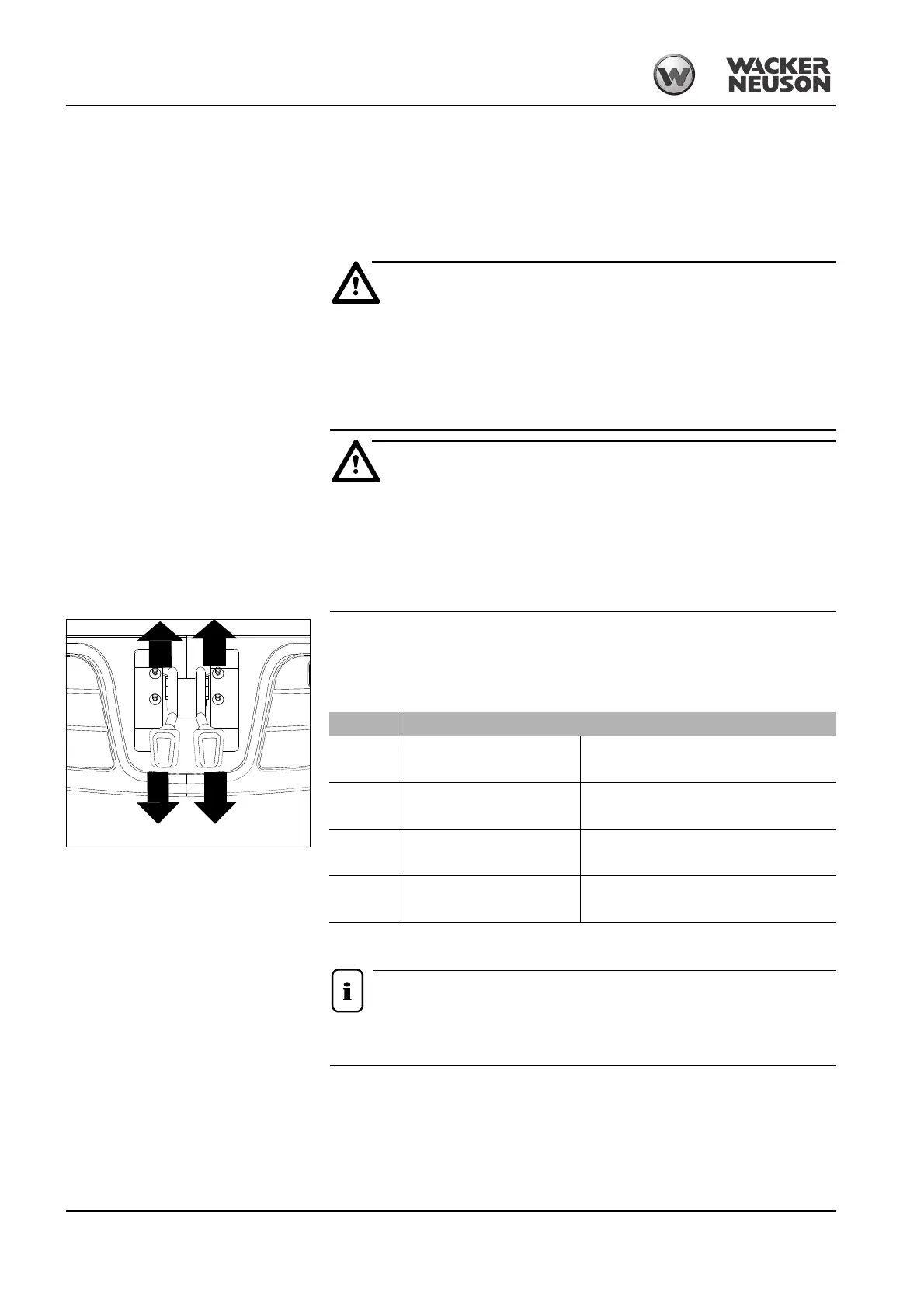

Abb. 54: Drive levers/drive pedals
1
2
3
4
Position Function
1
2
Push forward Push forward Track excavator moves forward
3
4
Pull backward
Pull backward
Track excavator moves backward
3
2
Pull backward Push forward Track excavator turns to the left
1
4
Push forward Pull backward Track excavator turns to the right
