Introduction
Meaning (from serial number AF04707)
Caution, danger of unintentional taking into service of the vehicule!
Danger of serious or fatal injury!
• Stop the engine before performing maintenance and repair work, and remove the
ignition key. The key must be kept by the operator.
Location
Inside the cab, on the side.
Caution, danger of serious or fatal injury!
• Lower the boom and the stabilizer blade to the ground before leaving the machine, stop
the engine, remove the ignition key and raise the armrest.
Location
Inside the cab, on the side.
Meaning
Caution, danger of serious or fatal injury!
Stay clear of the machine’s work range during operation.
Location
On either side of the boom.
Meaning
Bear in mind the permissible (pay)load according to the table.
– see chapter 6.13 Lift capacity table (standard chassis and canopy) on page 6-11
– see chapter 6.14 Lift capacity table with long stick (Standard chassis and canopy)
(option) on page 6-12
– see chapter 6.15 Lift capacity table with cabin (option) and telescopic undercarriage
(option) on page 6-13
– see chapter 6.16 Lift capacity table with cabin (option), long dipper arm (option) and tele-
scopic undercarriage (option) on page 6-14
Location
On the headliner

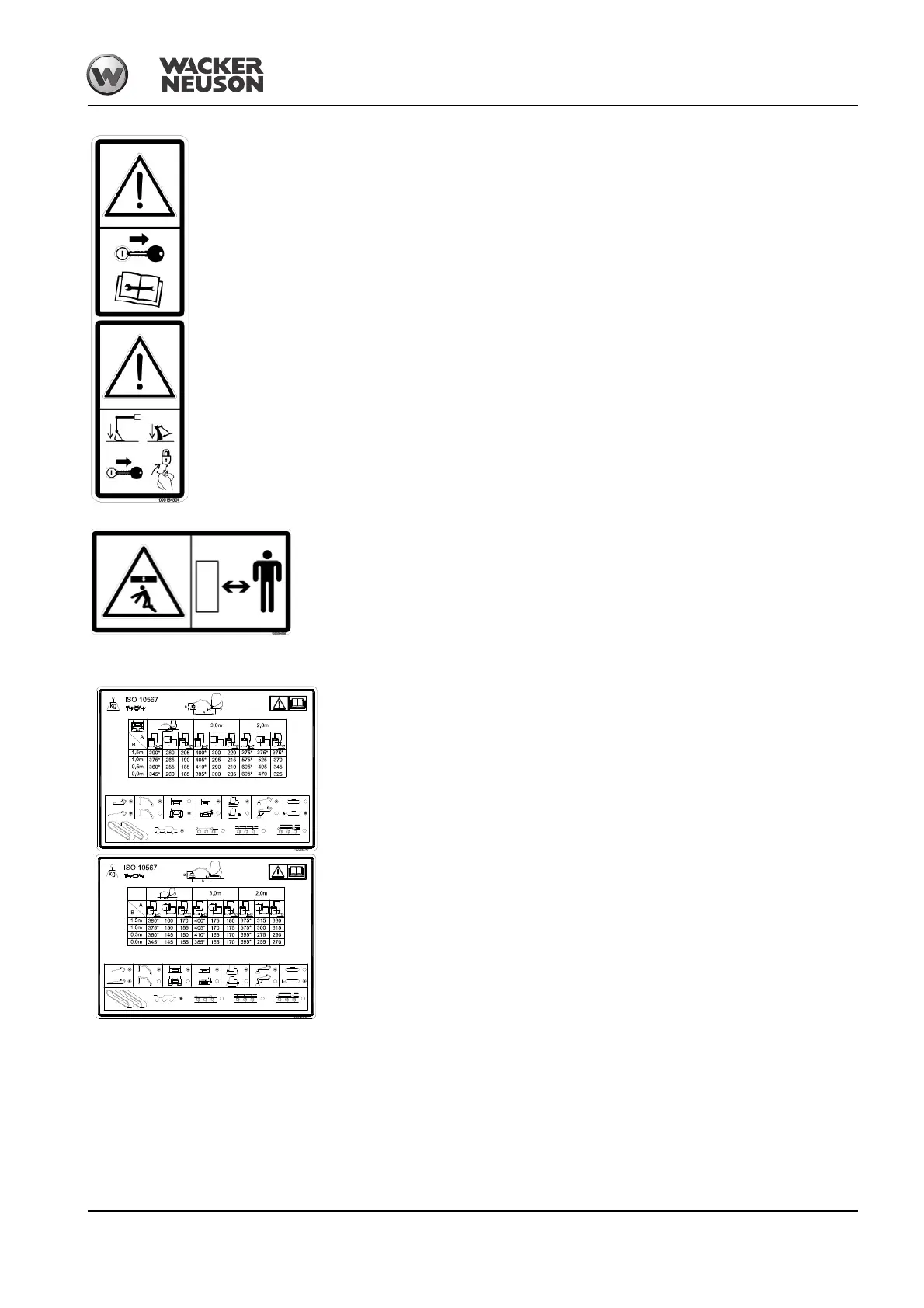

Abb. 34: Warnings
Abb. 35: Boom operation
Abb. 36: Lift capacity table
