Wacker Neuson RC70 User Manual

Auxiliary equipment
Padfoot shells
208
BA RC50_RC70 en 00
At the front of the drum, insert a short fastening screw [1] from above
into the hole on the clamp connections [2] in the middle of the drum.
Put on the fastening nut, and lightly tighten by hand.
Tighten the clamp connection [2] on the front of the drum with the
fastening screw [1] on the screw head. Hold the nuts still with a
wrench.
Replace the long mounting screws in the clamp connections [3] with
the short fastening screws [1] and tighten them.
Start the diesel engine and drive the machine slowly forwards again
until the rear clamp connections [2] are at the front of the drum.
Switch off the diesel engine and remove the ignition key.
Complete the clamp connections as described under points 1 to 3.

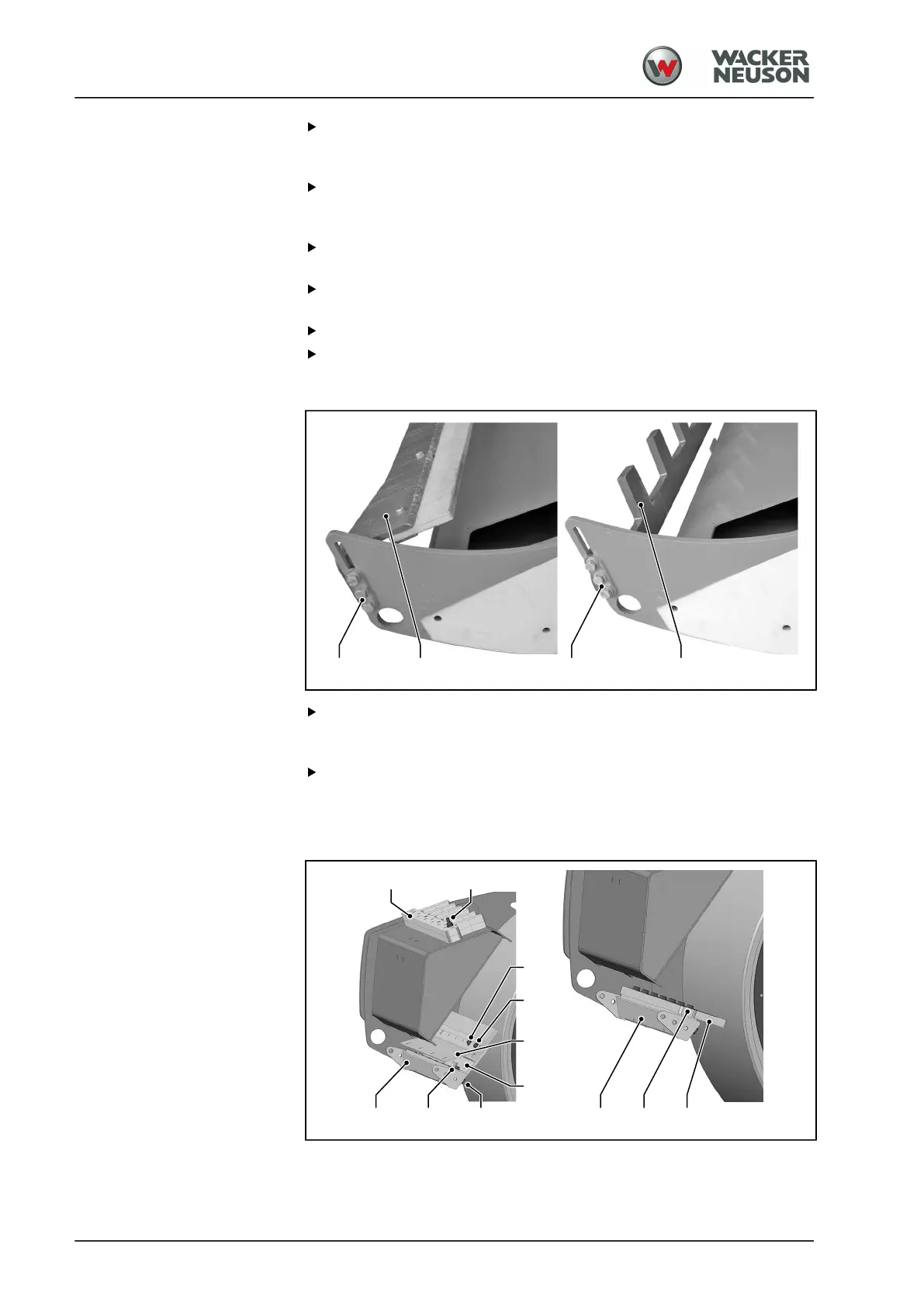

Fitting the padfoot drum scrapers – method 1
2 1 31
Loosen the clamp connection [1] and replace the
smooth drum scrapers [2] with the padfoot drum scrapers [3] in the
front crossbeam (observe lateral spacer plates).
Tighten the clamp connection [1] on both sides.
Perform this work on the front and rear scrapers.
Fitting the padfoot drum scrapers – method 2
9
8
6 4 8 6 7
7
3
1
2
5
