Operation
Loading and transporting
BA RD18 en 01
63

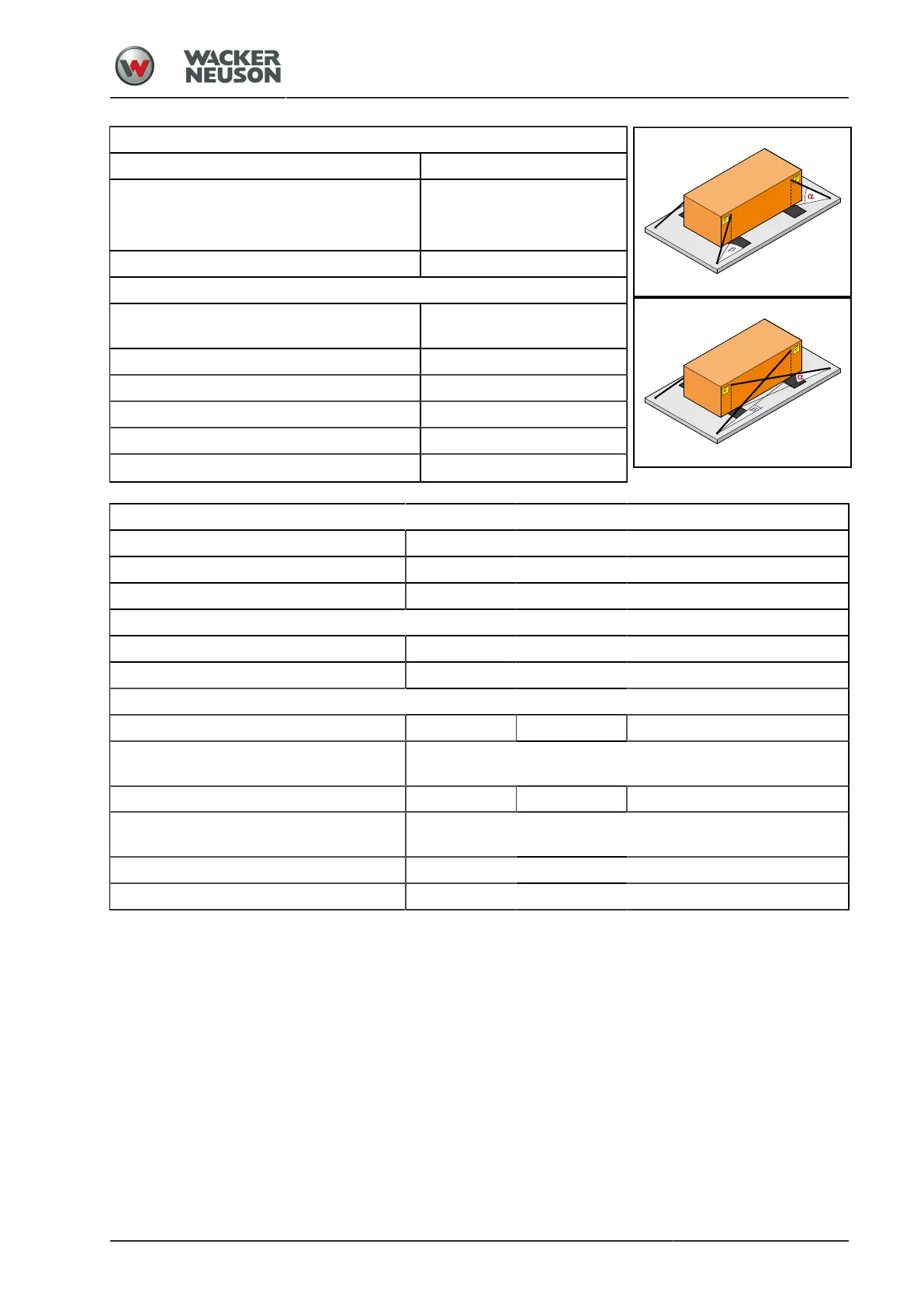

Machine parameters
Weight of machine [t] 1,5 t < m < 5,7 t
Area of centre of gravity [mm] X
CoG
= 778–1048
Y
CoG
= 428–753
Z
CoG
= 650–1030
Identification reference point: Centre drum, front left
Interface parameters:
Type of contact: Anti-slip
Material
Frictional force [μ]: 0.6
Heavy load capacity: yes
Contact points: under contact pair
Vertical lashing angle α: 30° < α < 50°
Longitudinal, horizontal angle β
x
: 15° < β
x
< 50°
Specification of attachment points on the load:
Tensile capacity of lashing point [daN]: 2000
Marking of lashing point: Symbol ISO 6405-1
Number of lashing points: 4
Specification of lashing points on the means of transport:
Tensile capacity of lashing point [daN]: ≥ 2000
Number of lashing points: 4
Load securing equipment:
Wedge blocks: no Quantity: 0 Miscellaneous:
Other types of blocking: Positive blocking longitudinally/transversely to the direction of
travel
Lashing equipment capacity [daN]: 10000 Quantity: 4 Miscellaneous:
Recommended type of lashing equip-
ment:
Chain (6/8 2200 daN),
Belt (2000 daN) as an alternative
Connecting pieces to the lashing point: Hook with safety latch
