WAGNER Cobra 40-10 Original Operating Manual

21
VERSION 01/2018
ORDER NUMBER DOC 2340851
Cobra 40-10 / 40-25

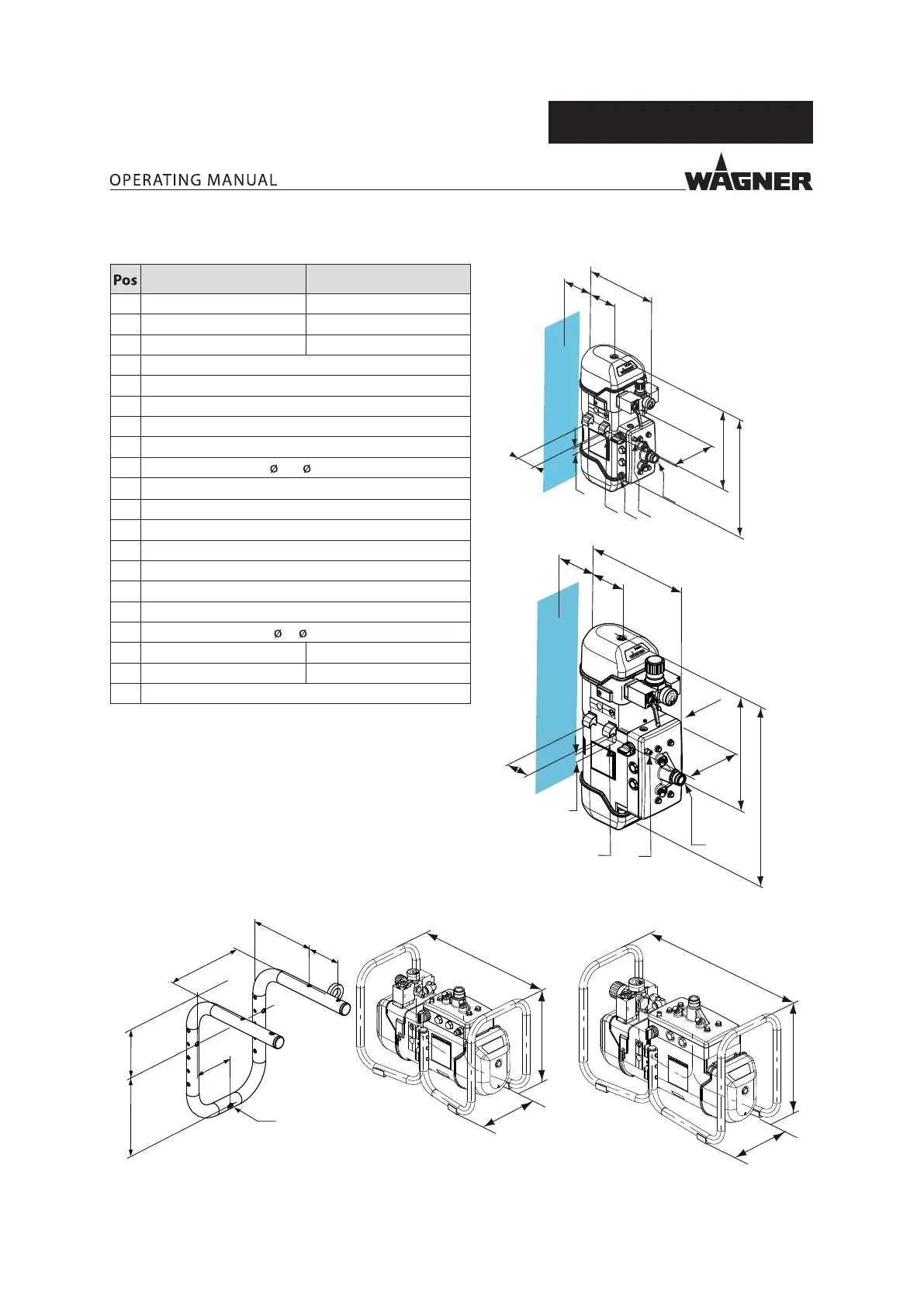

5.5.3 DIMENSIONS AND CONNECTIONS
Cobra 40-10 mm; inch Cobra 40-25 mm; inch
B_04236
B
D
E
F
H
I
L
G
A
C
Cobra 40-25
K
M
B
D
E
F
H
I
K
L
M
G
A
C
B_04235
Cobra 40-10
A 505; 19.88 605; 23.82
B 313; 12.32 379; 14.92
C 322; 12.68 373; 14.69
D 134; 5.28
E 55; 2.16
F 182; 7.16
G 80; 3.15
H M6
I 25; 0.98
K G1/4"
L M36×2
M G 3/8"A
N 149; 5.87
O 91; 3.58
P 107; 4.21
Q 175; 6.89
R 7; 0.28
S 525; 20.67 644; 25.35
T 367; 14.45 417; 16.42
U 275; 10.83
B_06937
S
U
T
Cobra 40-25
Cobra 40-10
S
U
T
B_02943
G
P
Q
N
O
R
F
