WAGNER Cobra 40-10 Original Operating Manual

67
VERSION 01/2018
ORDER NUMBER DOC 2340851
Cobra 40-10 / 40-25

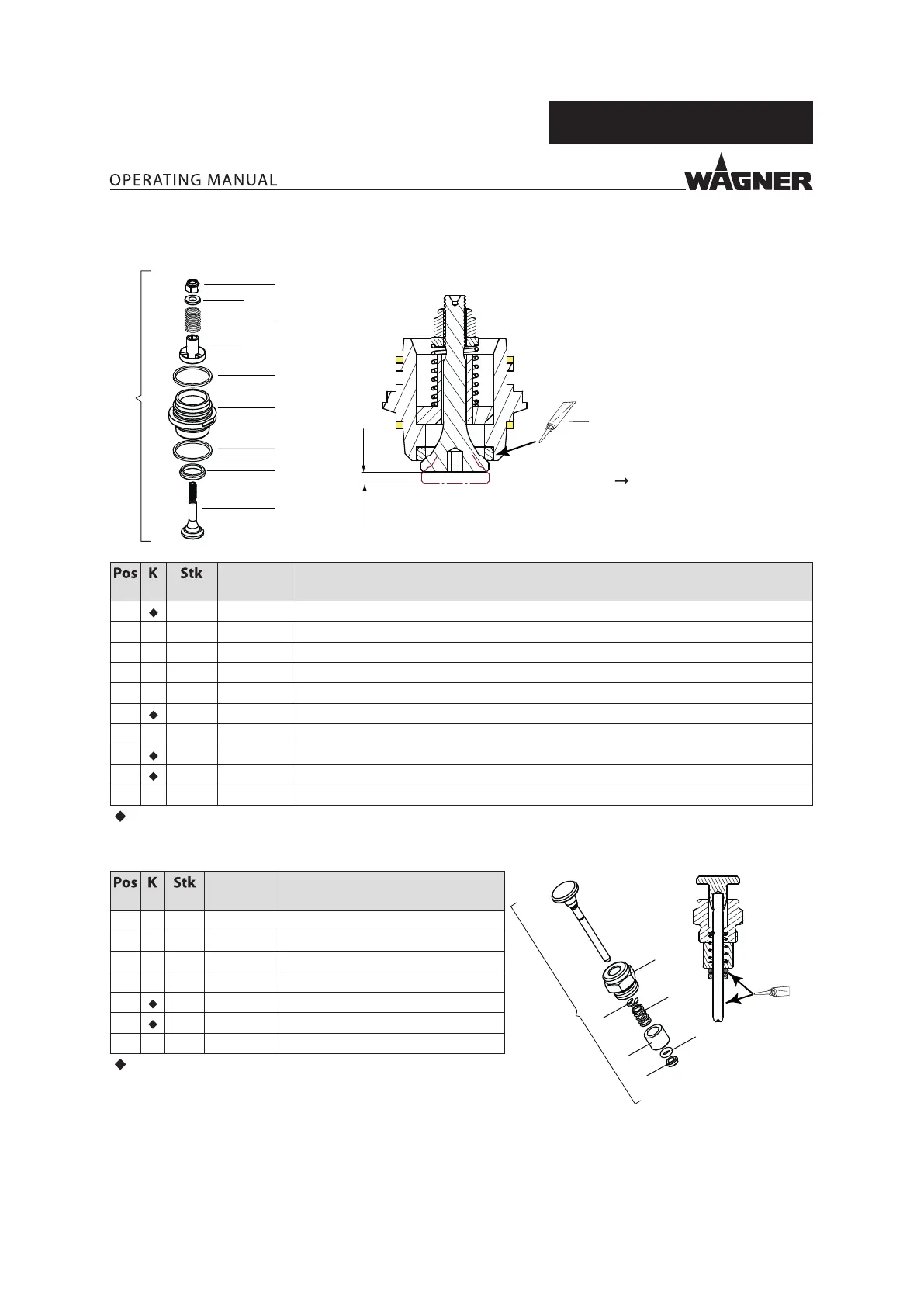

14.8 COBRA 4010 INLET VALVE
2
3
4
5
6
7
11
6
8
1
10
1.9 ±0.1
B_01230
Note:
Item 8 adhesive area:
Pretreated with fast cleaner
Loctite type 7063.
Order
No.
Designation
1 1 322914 Complete Cobra 40-10 inlet valve set
2 2 9912100 Hexagon nut with clamp
3 2 344334 Spring guide
4 2 190304 Pressure spring
5 2 158333 Guide
6 4 341331 Sealing ring
7 2 344322 Valve housing
8 2 340346 Valve seat
10 1 9992528 Loctite 270 50 ml; 50 cc
11 2 340342 Valve cone
= Wearing part.
14.9 INLET VALVE DEPRESSOR
Order
No.
Designation
B_01232
7
4
5
6
3
2
1
Grease with
Vaseline.
1 1 341241 Inlet valve depressor, complete
2 1 9922724 Lock washer 3.2
3 1 341377 Sleeve
4 1 9994275 Pressure spring
5 1 9971486 O-ring, 4x2
6 1 341316 Scraper
7 1 341375 Screw plug
= Wearing part.
