WAGNER Cobra 40-10 Original Operating Manual

40
VERSION 01/2018
ORDER NUMBER DOC 2340851
Cobra 40-10 / 40-25
8.2.7 MAINTENANCE HYDRAULIC STAGE

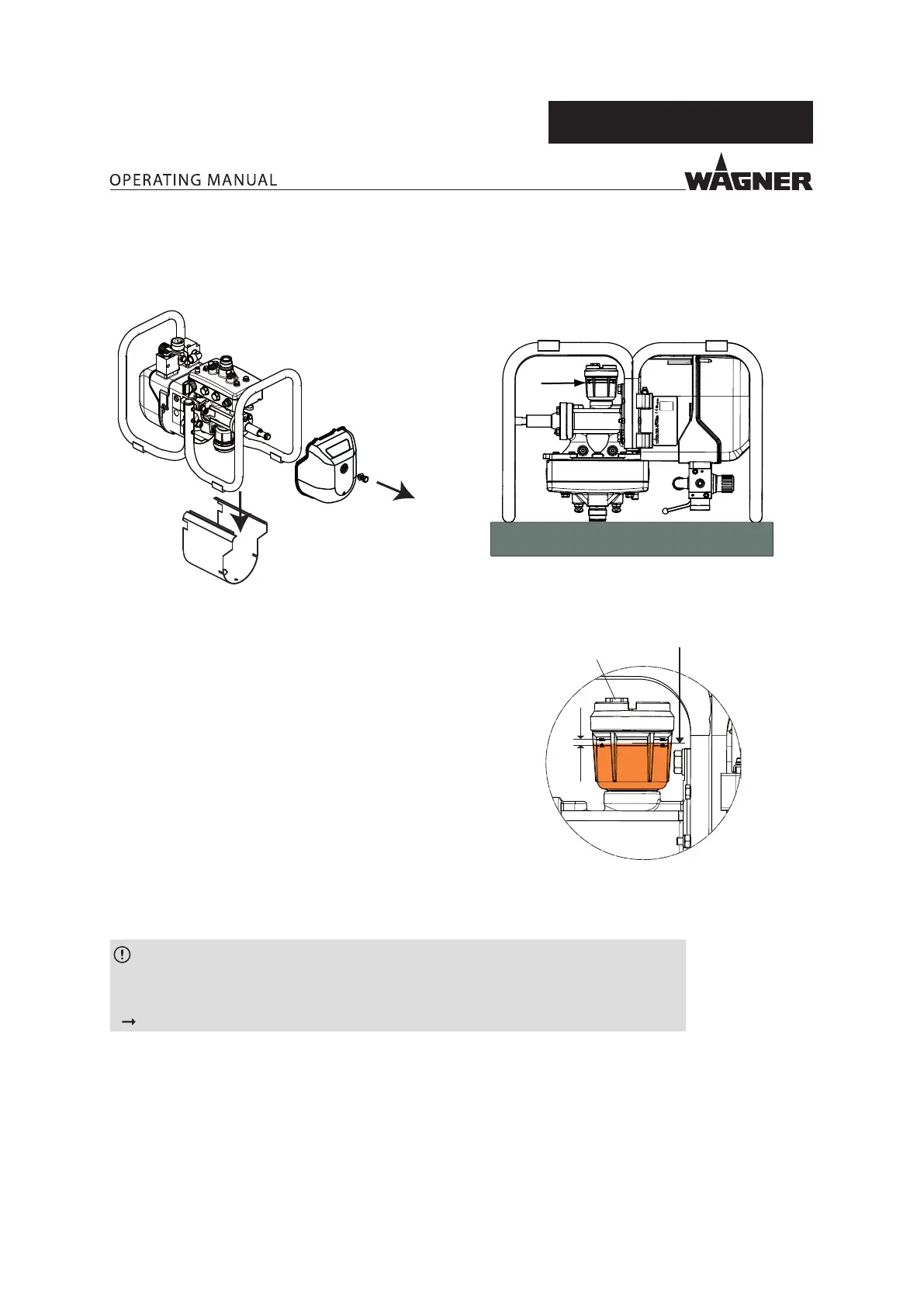

Dismount the device onto a frame as shown in the picture and turn it upside down.
Observe the ll level marking (X) on the oil tank.
B_04241
1
B_04242
8.2.8 CHECKING THE OIL LEVEL
1. Start up the pump for a short time without any product.
B_04243
A5
X
max.
min.
2. Then read oil level A.
Dismount the device onto a frame as shown in the picture and
turn it upside down.
Observe the ll level marking (X) on the oil tank.
Oil level A in the oil tank (1) has to be within the specied
markings (X).
If the level deviates from these markings, the hydraulic oil must
be topped up.
Procedure
1. Unscrew and remove threaded plug (5).
2. Top up oil to level A = middle of marking X.
3. Start up the pump for a short time without any product and
check for air bubbles.
4. Screw in threaded plug (5) and tighten with 2 Nm; 1.5 lbft.
NOTICE
Using hydraulic oil
Using the wrong hydraulic oil can cause a malfunction.
Use only original hydraulic oil - Wagner order no. 322912 (250 ml or 15 cu inch).
