Cobra 40-10 / 40-25

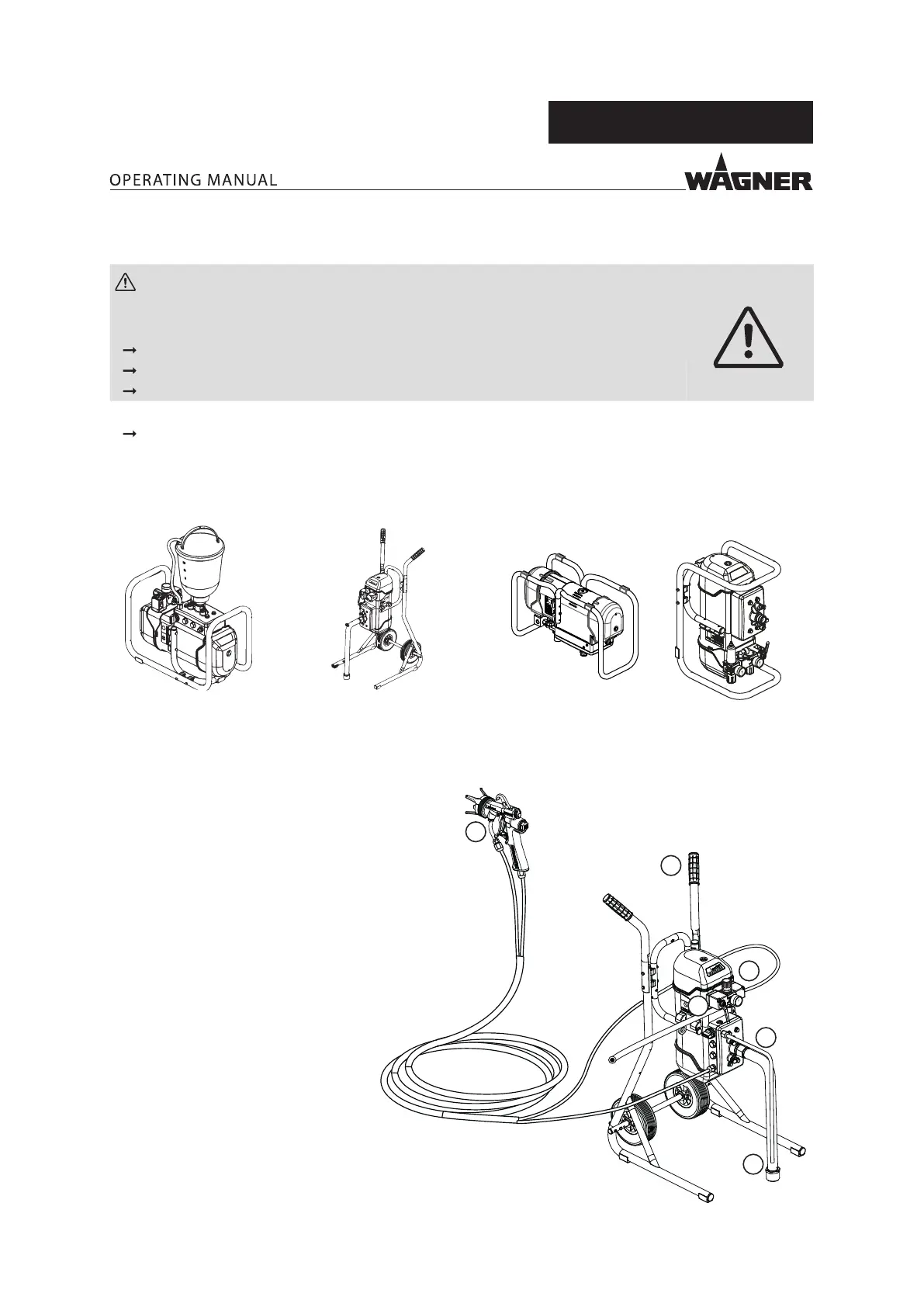

6.5 ASSEMBLY AND INSTALLATION
WARNING
Inclined ground!
Risk of accidents if the device rolls away/falls.
Position the trolley with the double diaphragm pump horizontally.
If the surface is inclined, position the feet of the trolley towards the gradient.
Secure the trolley.
National regulations
Ensure that the national explosion prevention rules and regulations are observed
when setting up the device.
Positioning
The Cobra pump may only be operated in a horizontal or vertical position as shown in the
diagrams. Overhead operation is not permitted.
Horizontal positioning
Vertical positioning
B_06832
Overhead positioning
This pump can be used as part of a spraying system for Airless or AirCoat applications. The
components can be found in the accessories list, provided that the system was not obtained
as a spray pack. The nozzles must be selected according to the spray gun instructions.
Procedure
B_04239
1
6
7
2
4
5
1. Mount the pump on a frame,
trolley (6), or wall mount.
2. For AirCoat systems: Mount the
additional lter pressure regulator
(7) (option).
3. Mount suction system (5).
4. Mount return hose (4) (option).
5. Connect high-pressure hose and
spray gun (2) according to the
operating manual.
