WAGNER Cobra 40-10 Original Operating Manual

68
VERSION 01/2018
ORDER NUMBER DOC 2340851
Cobra 40-10 / 40-25

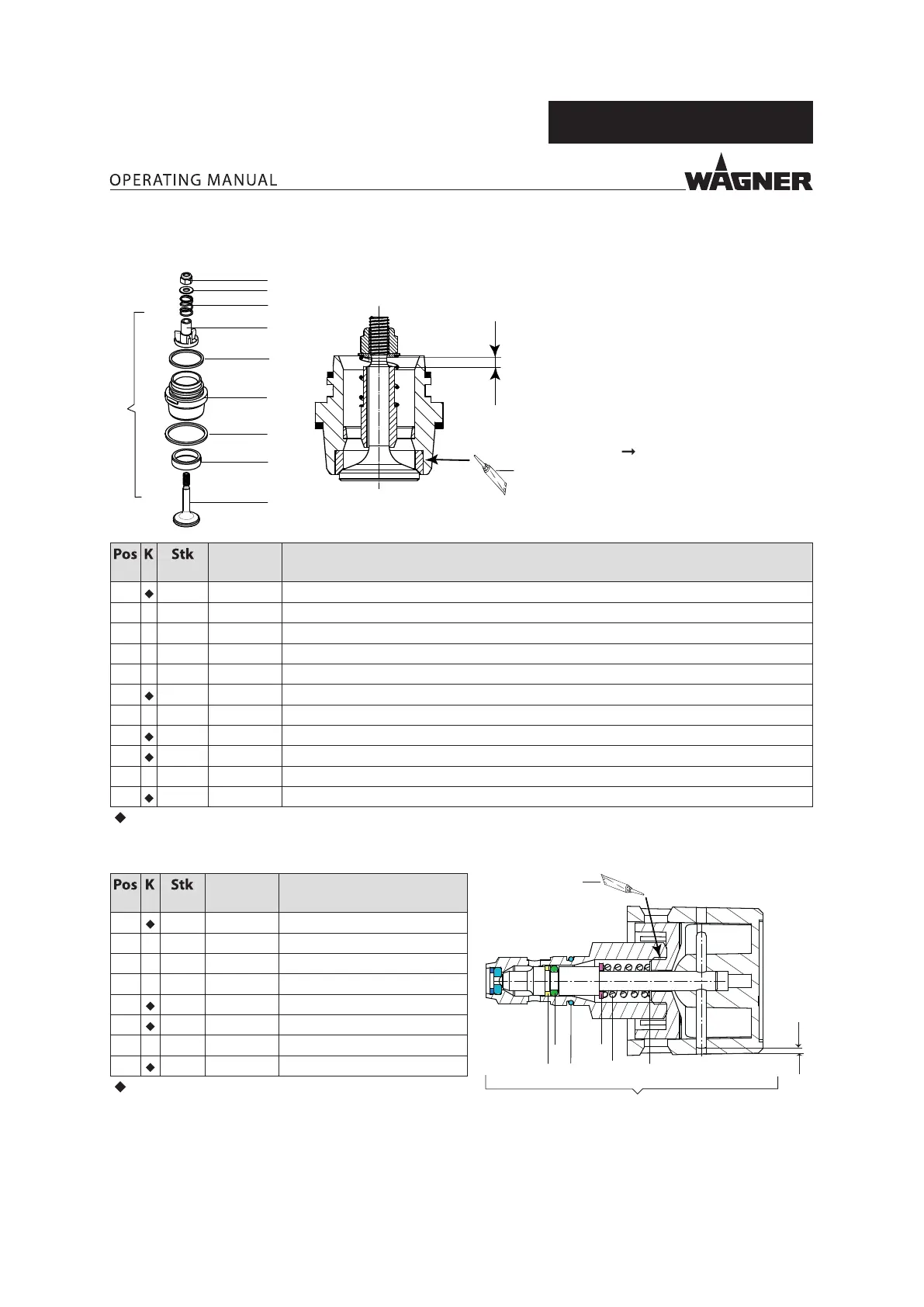

14.10 COBRA 4025 INLET VALVE
B_02942
2
2.3
4
7
6
1
5
9
11
8
3
10
0
-0.1
Note:
Item 8 adhesive area:
Pretreated with fast cleaner Loctite
type 7063.
Order
No.
Designation
1 1 2308753 Complete Cobra 40-25 inlet valve set
2 2 9912100 Hexagon nut with clamp
3 2 253324 Spring guide
4 2 9994304 Pressure spring
5 2 341344 Valve guide
6 2 341330 Sealing ring
7 2 -- Valve housing
8 2 341385 Valve seat
9 2 341331 Sealing ring
10 1 9992528 Loctite 270 50 ml; 50 cc
11 2 341395 Valve cone
= Wearing part.
14.11 RELIEF VALVE
8
5
7
3
6
4
1
2
1.5
B_01231
Thread: Pretreated with
fast cleaner Loctite
type 7063.
Order
No.
Designation
1
1 169248 Relief valve, complete
2 1 9920602 Adjusting washer
3 1 169346 Pressure spring
4 1 9920202 Washer
5
1 9971395 O-ring, 10x1.25
6
1 9971486 O-ring, 4x2
7 1 9992528 Loctite 270, 50 ml; 50 cc
8
1 9971367 Spiral baking ring 4.78x1.78
= Wearing part.
