WAGNER Cobra 40-10 Original Operating Manual

74
VERSION 01/2018
ORDER NUMBER DOC 2340851
Cobra 40-10 / 40-25

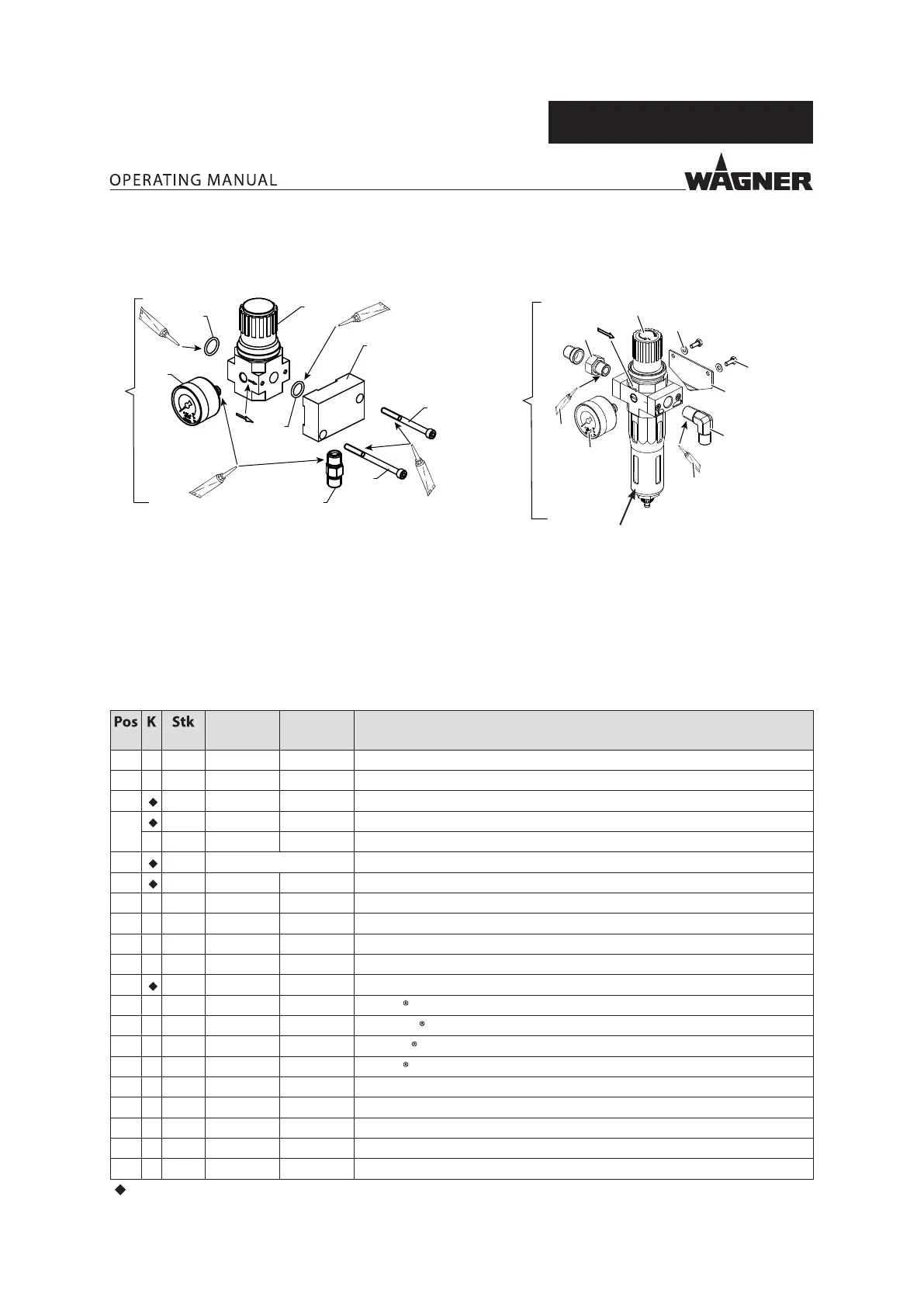

14.15 AIRCOAT REGULATOR AND AIRCOAT FILTER REGULATOR
B_05400
1
8
3
5
6
7
9
10
11
*
13
14
12
14
Pos 3 or 4:
*
Observe the ow direction (direction of arrow to the housing)
Pos 5:
Screw in the pressure gauge until the white sealing ring is completely in the lter control valve.
Thereafter continue turning the pressure gauge only to align the display scale.
AirCoat regulator
AirCoat lter regulator
B_06938
2
5
*
4
15
15
16
17
18
19
20
Remove protective container. Mount contact plate.
Screw on / unscrew protective container three times
(provides contact point via container coating)
Order
No.
Order
No.
Designation
1 1 2328611 / AirCoat regulator set
2 1 / 2382997 AirCoat lter regulator set
3 1 2309972 / Pressure regulator, LR-1/4-D-O-l-Mini
4 1 / 2331950 Filter control valve (manual drain)
/ 2360259 Option: lter pan (automatic drain)
5 1 9998677 Pressure gauge, 0-10 bar RF40 (d40)
6 1 9974166 / O-ring
7 1 2325527 / Holding plate
8 1 9906021 / Hexagon socket cylinder head screw
9 1 9900320 / Hexagon socket cylinder head screw
10 1 9994627 / Double tting R1/4-R1/4
11 1 9971313 / O-ring
12 1 9992831 / Loctite 542
13 1 9992616 / Molykote DX grease
14 1 9998808 / Mobilux EP 2 grease
15 1 / 9992528 Loctite 270
16 1 / 2366466 Contact plate
17 1 / 2389277 Fitting, EF-MM-G1/4-R1/4-530 bar
18 2 / 9900152 Hexagon screw without shaft
19 3 / 9920104 Washer
20 1 / 9998719 Double nipple, detachable
= Wearing part.
