WAGNER Cobra 40-10 Original Operating Manual

78
VERSION 01/2018
ORDER NUMBER DOC 2340851
Cobra 40-10 / 40-25

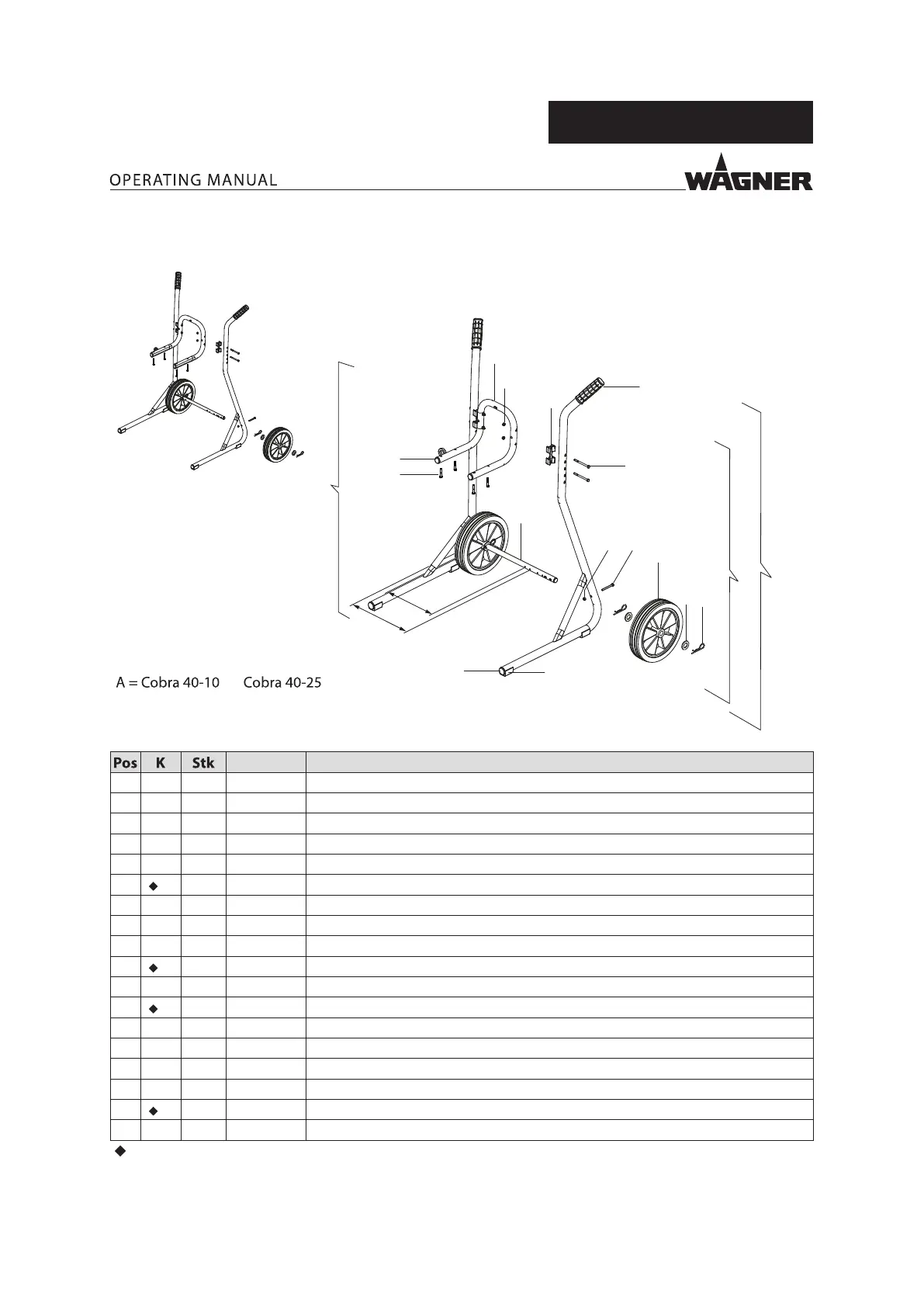

14.19 SLIDING TABLES
4
1
2
17
15
10
6
5
9
7
8
5
13
11
12
B_03932
3
14
16
A
B
Distance:
and
Order No. Designation
1 1 2325901 Trolley, complete
2 1 -- Frame, left, 4"-6" (welded)
3 1 -- Frame, right, 4"-6" (welded)
4 4 9907140 Hexagon screw DIN931 M6x75
5 6 9910204 Self-locking hexagon nut, M6
6 2 2304440 Wheel, D250
7 4 340372 Washer
8 4 9995302 Cotter pin
9 1 -- Wheel axle 4"-6"
10 2 367943 Connecting part 4"-6"
11 2 -- Tube plug, ribbed
12 2 9998685 Saddle feet for round tubes
13 2 -- Plug
14 4 9900218 Hexagon screw
15 1 2332143 Wall mount
16 2 3061695 Hexagon screw without shaft, M6x55
17 2 9998747 Handle
18 1 2329546 Assembly manual of trolley
= Wearing part.
