VERSION 01/2018
ORDER NUMBER DOC 2340851

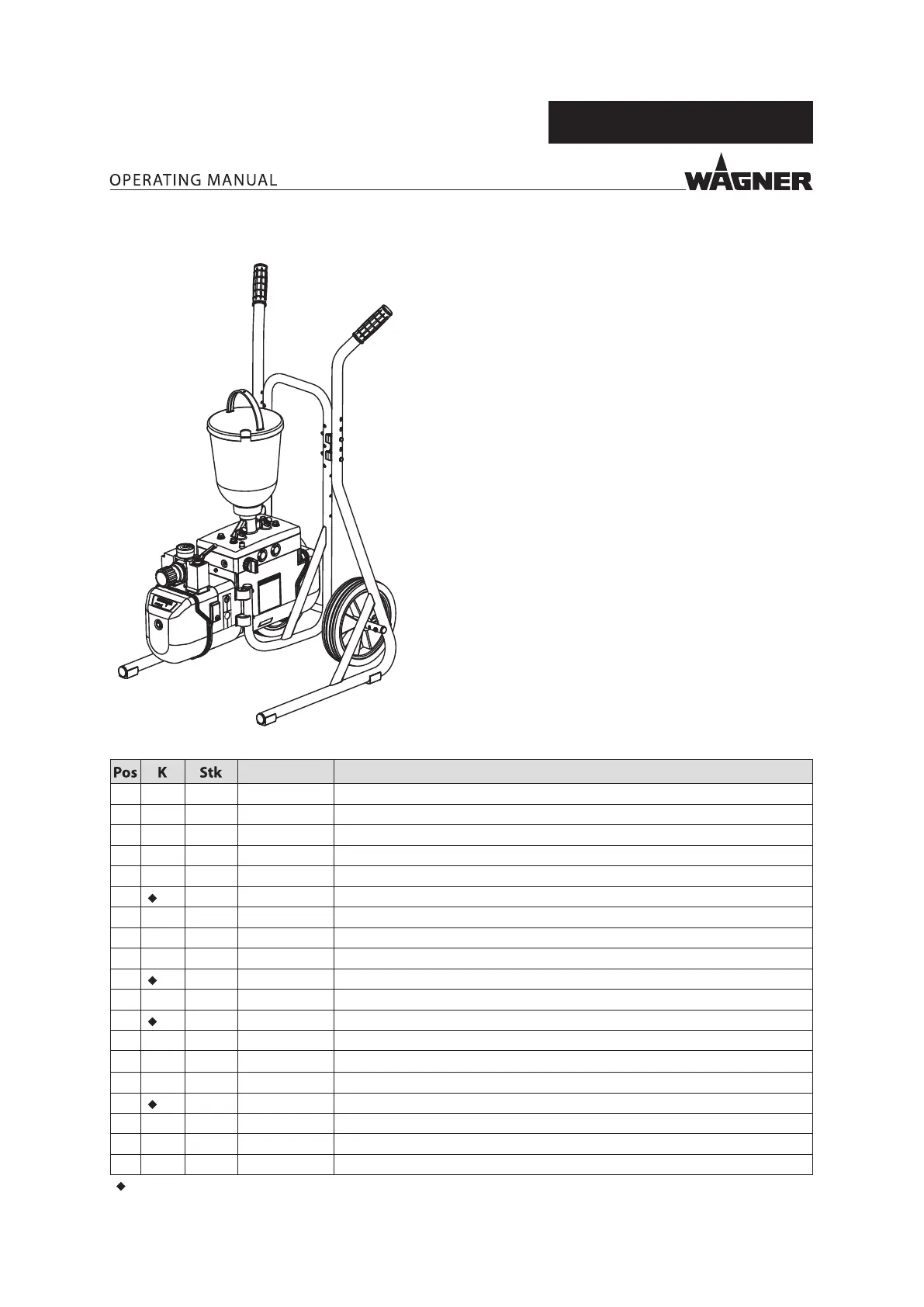

Cobra 40-10 / 40-25
Trolley and pump tted
B_05002
Order No. Name
1 1 2341375 Cobra trolley complete
2 1 -- Frame, left 4"-6"
3 1 -- Frame, right 4"-6"
4 4 9907140 Hexagon screw
5 6 9910204 Self-locking hexagon nut, M6
6 2 2304440 Wheel, D250
7 4 340372 Washer
8 4 9995302 Cotter pin
9 1 -- Wheel axle 4"-6" complete
10 2 367943 Connecting part 4"-6"
11 2 -- Tube plug, ribbed
12 4 9998685 Saddle feet for round tubes
13 2 -- Plug
14 1 -- Frame pipe long
15 2 3061695 Hexagon screw without shaft
16 2 9998747 Handle
17 4 3051666 Hexagon screw M6x40
18 4 9922017 Serrated lock washer, externally toothed
19 1 2341412 Assembly manual of Cobra trolley horizontal
= Wearing part.
