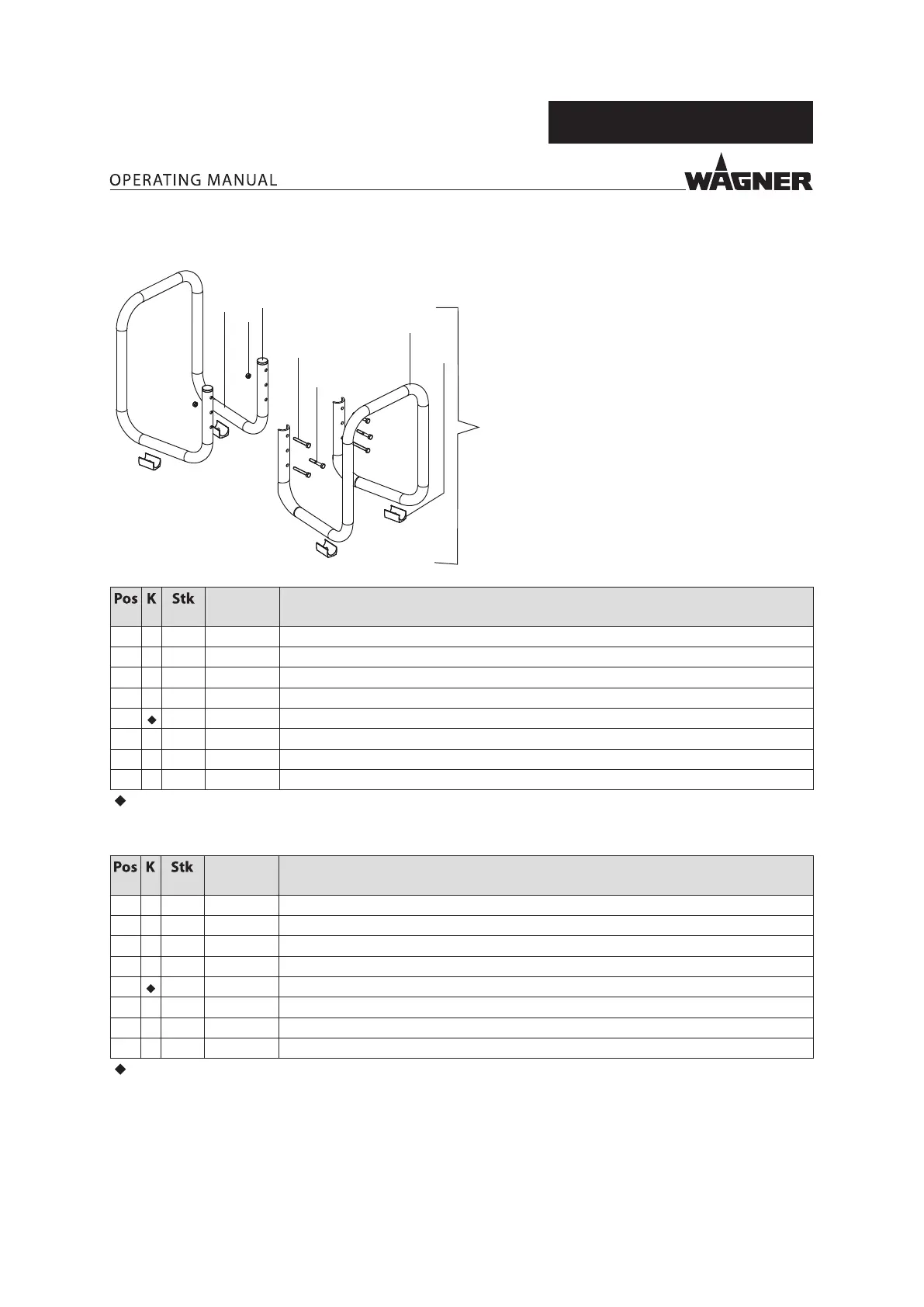

14.16 COBRA 4010 FRAME, COMPLETE
B_06841
1
2
3
4
6
7
8
5
Order
No.
Designation
1 1 322052 Cobra 40-10 frame
2 1 -- Frame pressed
3 1 -- Frame pipe
4 2 9990861 Plug
5 4 9999209 Saddle feet for round tubes
6 2 9910204 Self-locking hexagon nut, M6
7 2 9900202 Hexagon screw M6x40
8 4 9900126 Hexagon screw M6x45
= Wearing part.
14.17 COBRA 4025 FRAME, COMPLETE
Order
No.
Designation
1 1 2308732 Cobra 40-25 frame
2 1 -- Frame pressed
3 1 -- Frame pipe
4 2 9990861 Plug
5 4 9999209 Saddle feet for round tubes
6 2 9910204 Self-locking hexagon nut, M6
7 2 9900202 Hexagon screw M6x40
8 4 9900126 Hexagon screw M6x45
= Wearing part.
