66
VERSION 01/2018
ORDER NUMBER DOC 2340851

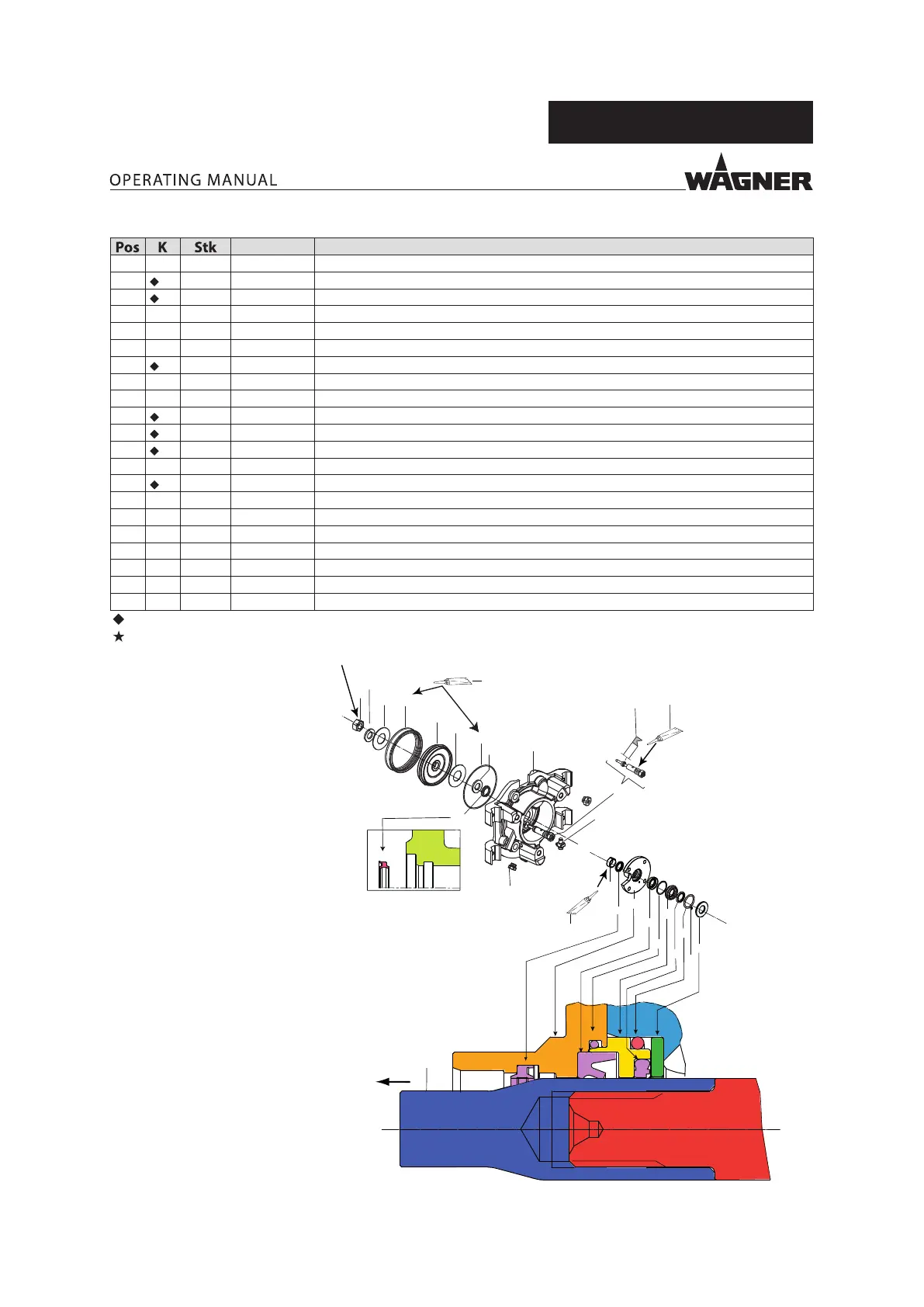

Cobra 40-10 / 40-25
Order No. Designation
81 1 9904311 Locking screws with collar/hexagon socket
91* 1 9974111 Sealing ring for G3/8 thread
91* 1 3051041 Sealing ring for G1/2 thread
92 3 9920106 Washer
93 2 341325 Valve guide
94 2 341328 Clasp
95 2 9971470 O-ring
96 2 341326 Pressure spring
97 2 253405 Spring support ring
98 2 9941501 Ball 11 HM
99 2 2306166 Outlet valve seat
100 2 2306167 Sealing ring
101 1 9994237 Pressure spring
102 2 322408 Oil valve pressure ring
104 1 9992831 Loctite 542 50 ml; 50 cc
105 1 9992528 Loctite 270 50 ml; 50 cc
107 1 2312289 Service set for Cobra 40-25 uid section
108 1 2314671 Service set for Cobra 40-25 piston (incl. items 16, 25, 31‚ 32‚ 33, 59, and 109)
109 1 2314670 Piston rod assembly pin
110 1 9992616 Molykote DX grease
111 1 9998808 Mobilux EP2 grease
= Wearing part.
= Included in service set.
* The internal thread at the
product output of the
uid section (item 14) will
be converted as of 2014
from G1/2" to G3/8", please
use the corresponding
tting and sealing ring (see
chapter "Accessories").
105
109
51
53
54
55
53
57
59
60
61
62
70
63
58
58
B_04256
40 Nm; 29.5 lbft
111
111
29
59
30
31
15
16
32
33
34
35
Note:
The piston rod (25) may only be
mounted with the screwed-on
assembly pin (109).
Grease all o-rings and seals lightly
with grease (111) before mounting
them.
