WAGNER Cobra 40-10 Original Operating Manual

28
VERSION 01/2018
ORDER NUMBER DOC 2340851
Cobra 40-10 / 40-25

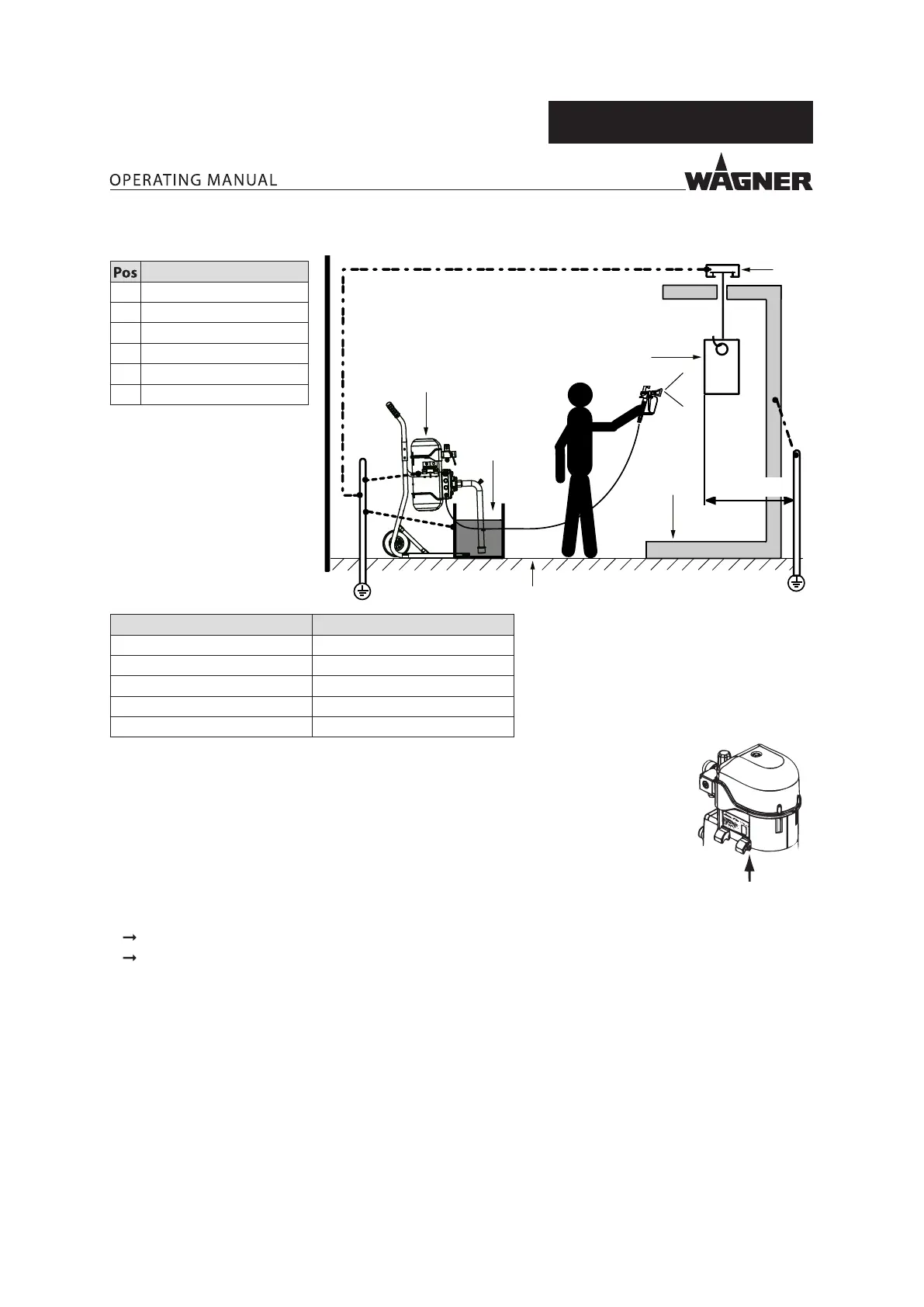

Grounding scheme (example)
B_06818
R max < 1 MΩ
2
1
3
4
5
6
Designation
1 Conveyor
2 Work piece
3 Pump
4 Paint tank
5 Spraying stand
6 Floor, static dissipative
Part / workstation Cable cross section
Pump 4 mm; AWG 12
Paint tank 6 mm; AWG 10
Conveyor 16 mm; AWG 6
Booth 16 mm; AWG 6
Spraying stand 16 mm; AWG 6
Safe operation of the Cobra pump is only guaranteed with a grounding connection.
Connect all ground cables using a short and direct route.
B_01214
Procedure
1. Screw on grounding cable with eye.
2. Clamp the grounding cable clip to a grounding connection on site.
3. Ground the product (paint) tank to an on-site grounding connection.
4. Ground the other parts of the system to an on-site grounding connection.
Ex zone
All devices and equipment must be suitable for use in potentially explosive areas.
All paints, ushing agents and waste tanks have to be electrically conductive.
All tanks must be grounded.
