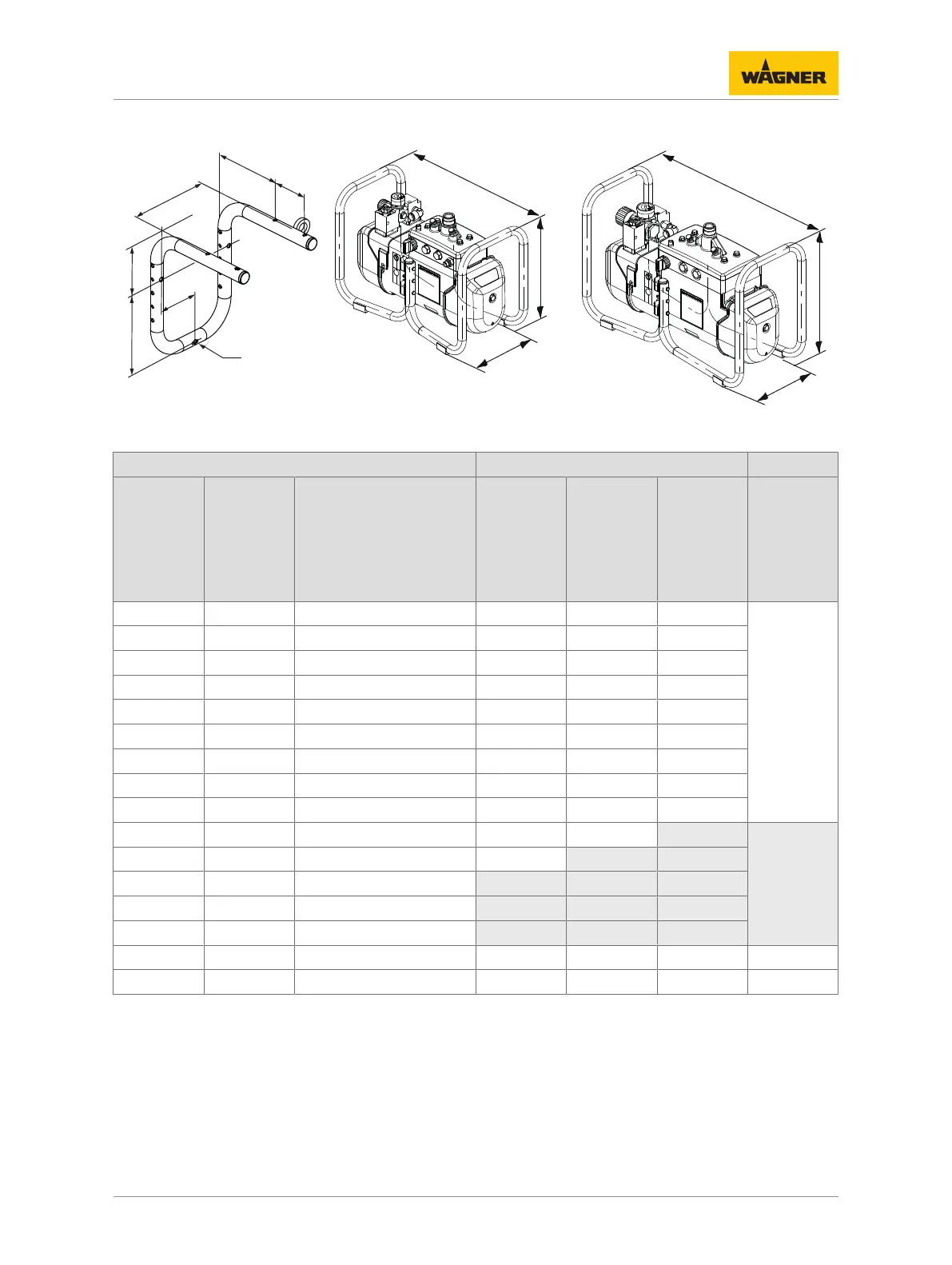

5.5.4 Volume Flow
WAGNER AL nozzles Volume flow* in l/min
Ø inch Ø mm Spray angle 7 MPa
70 bar
1015 psi
10 MPa
100 bar
1450 psi
15 MPa
150 bar
2175 psi
Maximum
ranges for
continuous
operation
at 200 DH/
min.
0.007 0.18 40° 0.17 0.20 0.24 Cobra
40-10
0.009 0.23 20-30-40-50-60° 0.21 0.25 0.30
0.011 0.28 10-20-30-40-50-60° 0.30 0.35 0.43
0.013 0.33 10-20-30-40-50-60-80° 0.45 0.53 0.66
0.015 0.38 10-20-30-40-50-60-80° 0.58 0.67 0.81
0.017 0.43 20-30-40-50-60-70° 0.73 0.79 1.06
0.019 0.48 20-30-40-50-60-70-80° 0.93 1.09 1.37
0.021 0.53 20-40-50-60-80° 1.14 1.36 1.69
0.023 0.58 20-40-50-60-70-80° 1.37 1.59 2.01
0.025 0.64 20-40-50-60-80° 1.62 1.91 2.40 Cobra
40-25
0.027 0.69 20-40-50-60-80° 1.83 2.13 2.68
0.029 0.75 60° 2.19 2.51 3.17
0.031 0.79 20-40-50-60° 2.40 2.77 3.49
0.035 0.90 20-40-50-60° 3.22 3.74 4.69
0.043 1.10 20-50° 5.07 6.04 7.46
0.052 1.30 50° 5.12 6.10 7.52
* Volume flow refers to water.
