Operating manual High-pressure double diaphragm pumps Cobra 40-10; Cobra 40-25
14 Spare Parts
84 Order number 2340851 | Edition 05/2022

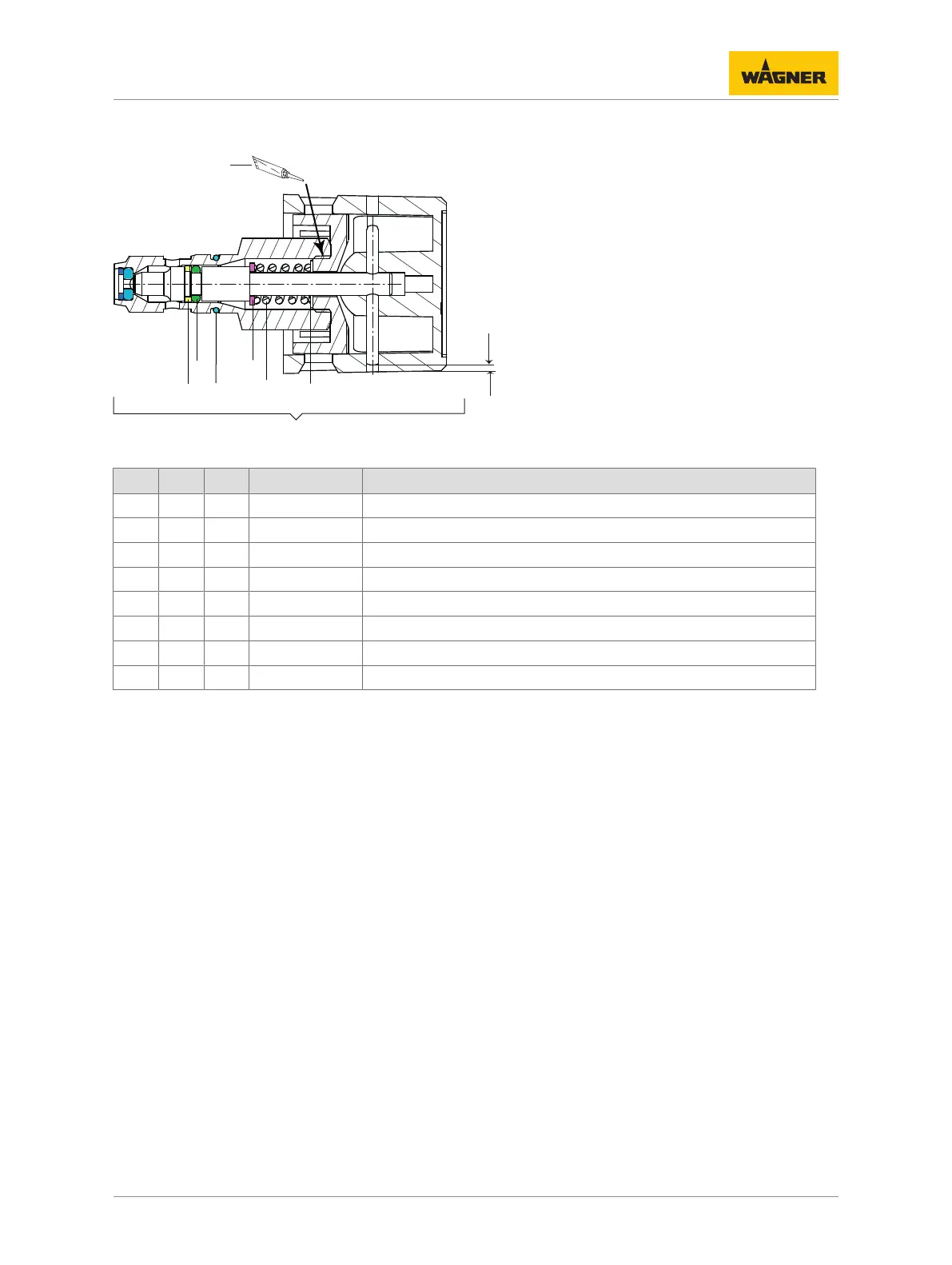

14.12 RELIEF VALVE
8
5
7
3
6
4
1
2
1.5
B_01231
Regarding position 7: Adhesive surface: Pretreated with fast cleaner Loctite ® type 7063.
Pos K Stk Order no. Designation
1 ♦ 1 169248 Relief valve, complete
2 1 9920602 Adjusting washer
3 1 169346 Pressure spring
4 1 9920202 Washer
5 ♦ 1 9971395 O-ring, 10x1.25
6 ♦ 1 9971486 O-ring, 4x2
7 1 9992528 Loctite ® 270, 50ml; 50cc
8 ♦ 1 9971367 Spiral baking ring 4.78x1.78
♦ = wearing parts
