WAGNER Cobra 40-10 - Ventilation of the Spray Booth; Air Supply Lines

Operating manual High-pressure double diaphragm pumps Cobra 40-10; Cobra 40-25
6 Assembly and Commissioning
32 Order number 2340851 | Edition 05/2022
B_04239
1
6
7
2
4
5

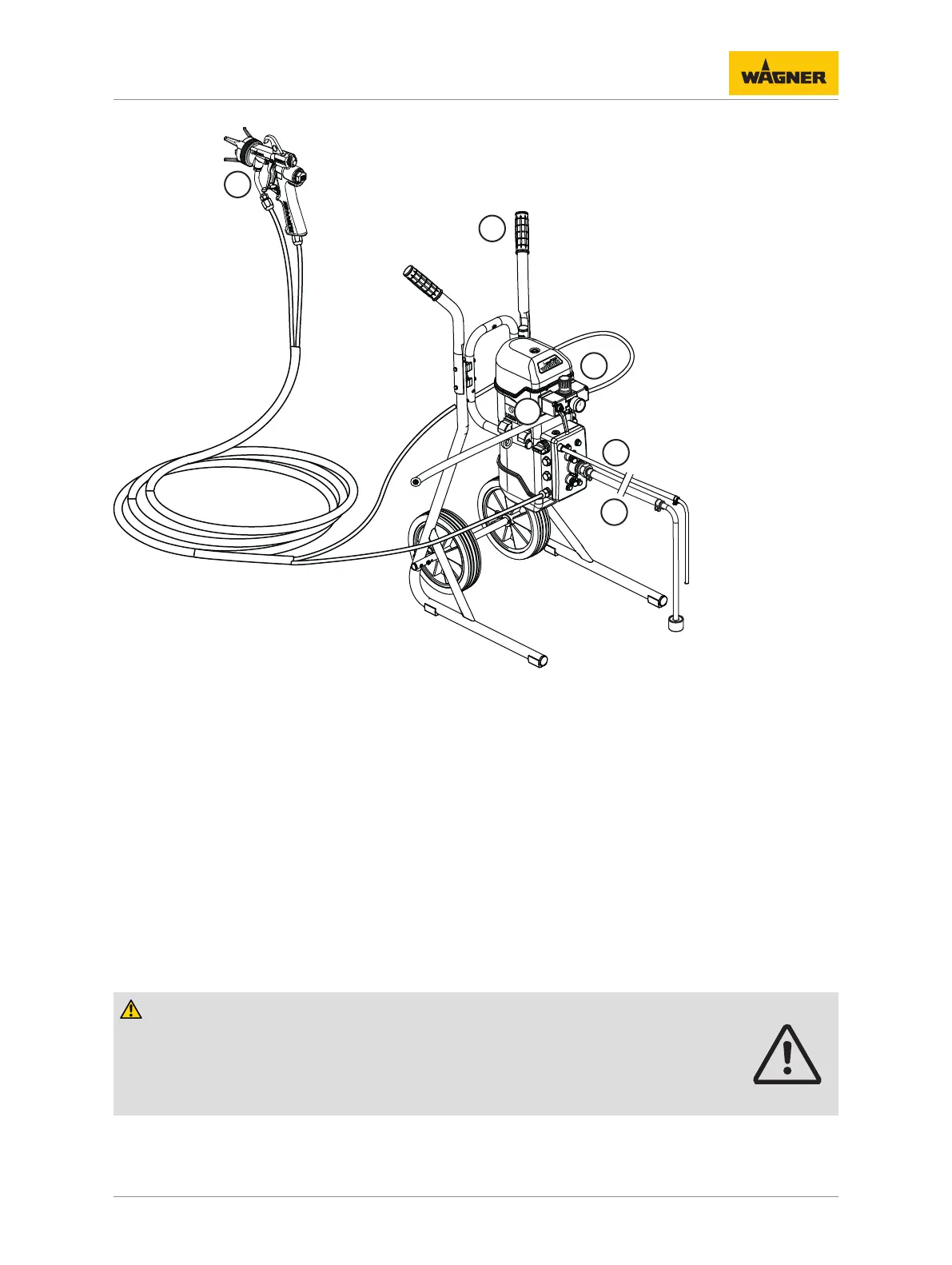

1. Mount the pump on a frame, mobile base (6), or wall mount.
2. For AirCoat systems: Mount the additional pressure regulator with filter (7) (option).
3. Fit suction system (5).
4. Mount return hose (4) (option).
5. Connect high-pressure hose and spray gun (2) according to the operating manual.
6.5.1 Ventilation of the Spray Booth
– Operate the device in a spray booth approved for the respective working materials.
- or -
– Operate the device on an appropriate spraying wall with the ventilation (extraction)
switched on.
– Observe national and local regulations for the exhaust air speed.
6.5.2 Air Supply Lines
WARNING
Hose connections!
Risk of injury and damage to the device.
4 Do not mix up hose connections of product hose and air hose.
4 Ensure that only dry, clean atomizing air is used in the spray gun! Dirt and moisture in
the atomizing air worsens the spraying quality and spray pattern.
