Operating manual High-pressure double diaphragm pumps Cobra 40-10; Cobra 40-25
5 Description
24 Order number 2340851 | Edition 05/2022

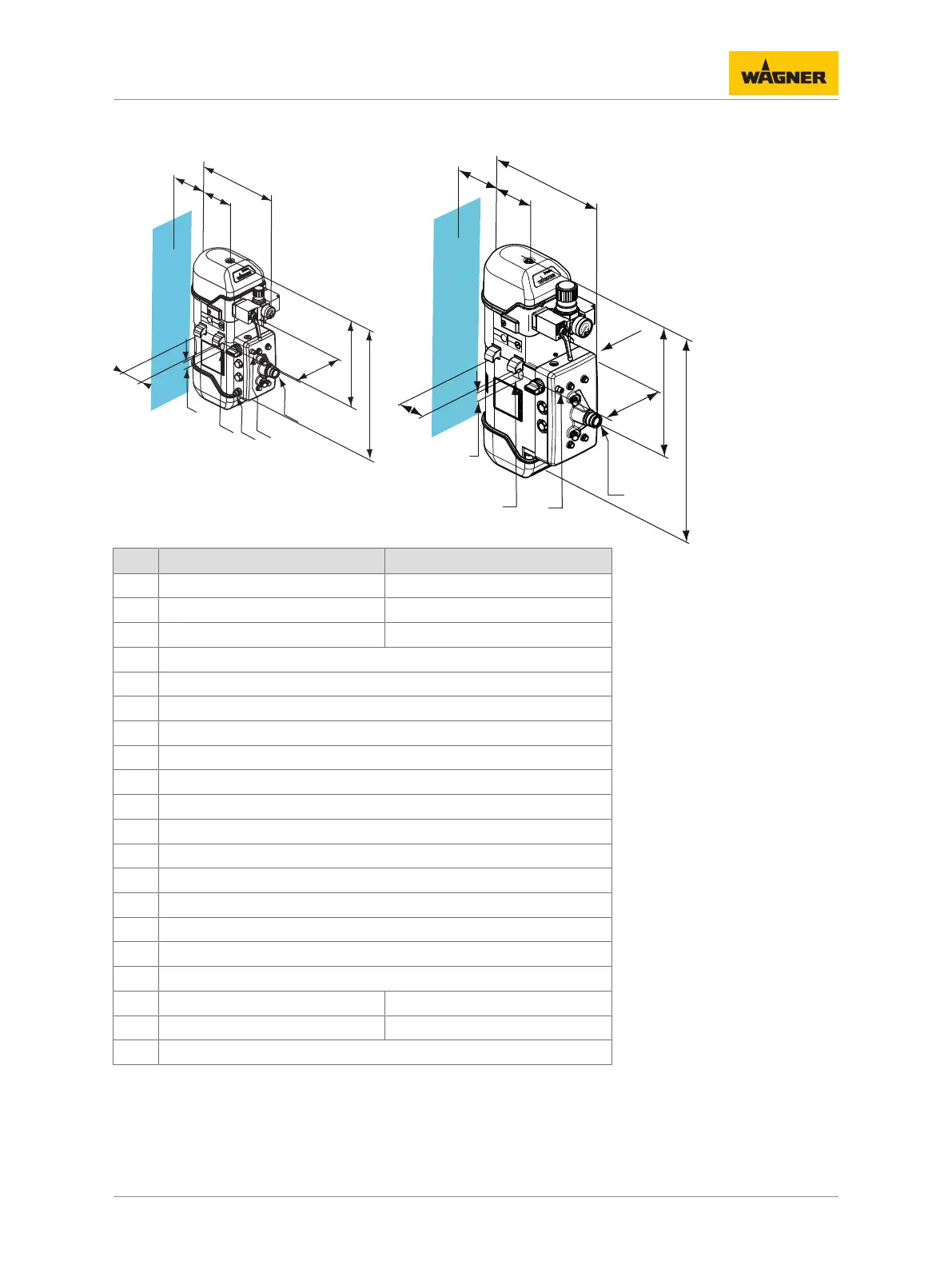

5.5.3 Dimensions and Connections
B
D
E
F
H
I
L
G
A
C
Cobra 40-25
K
M
B
D
E
F
H
I
K
L
M
G
A
C
B_07937
Cobra 40-10
Pos Cobra 40-10 mm; inch Cobra 40-25 mm; inch
A 505; 19.88 605; 23.82
B 313; 12.32 379; 14.92
C 322; 12.68 373; 14.69
D 134; 5.28
E 55; 2.16
F 182; 7.16
G 80; 3.15
H M6
I ⌀ 25; ⌀ 0.98
K G1/4"
L M36×2
M G 3/8"A
N 149; 5.87
O 91; 3.58
P 107; 4.21
Q 175; 6.89
R ⌀ 7; ⌀ 0.28
S 525; 20.67 644; 25.35
T 367; 14.45 417; 16.42
U 275; 10.83
