Operating manual High-pressure double diaphragm pumps Cobra 40-10; Cobra 40-25
8 Cleaning and Maintenance
50 Order number 2340851 | Edition 05/2022
B_07985
1
8.2.10 Checking the Oil Level
1. Start up the pump for a short time without any product.
2. Then read oil level A.

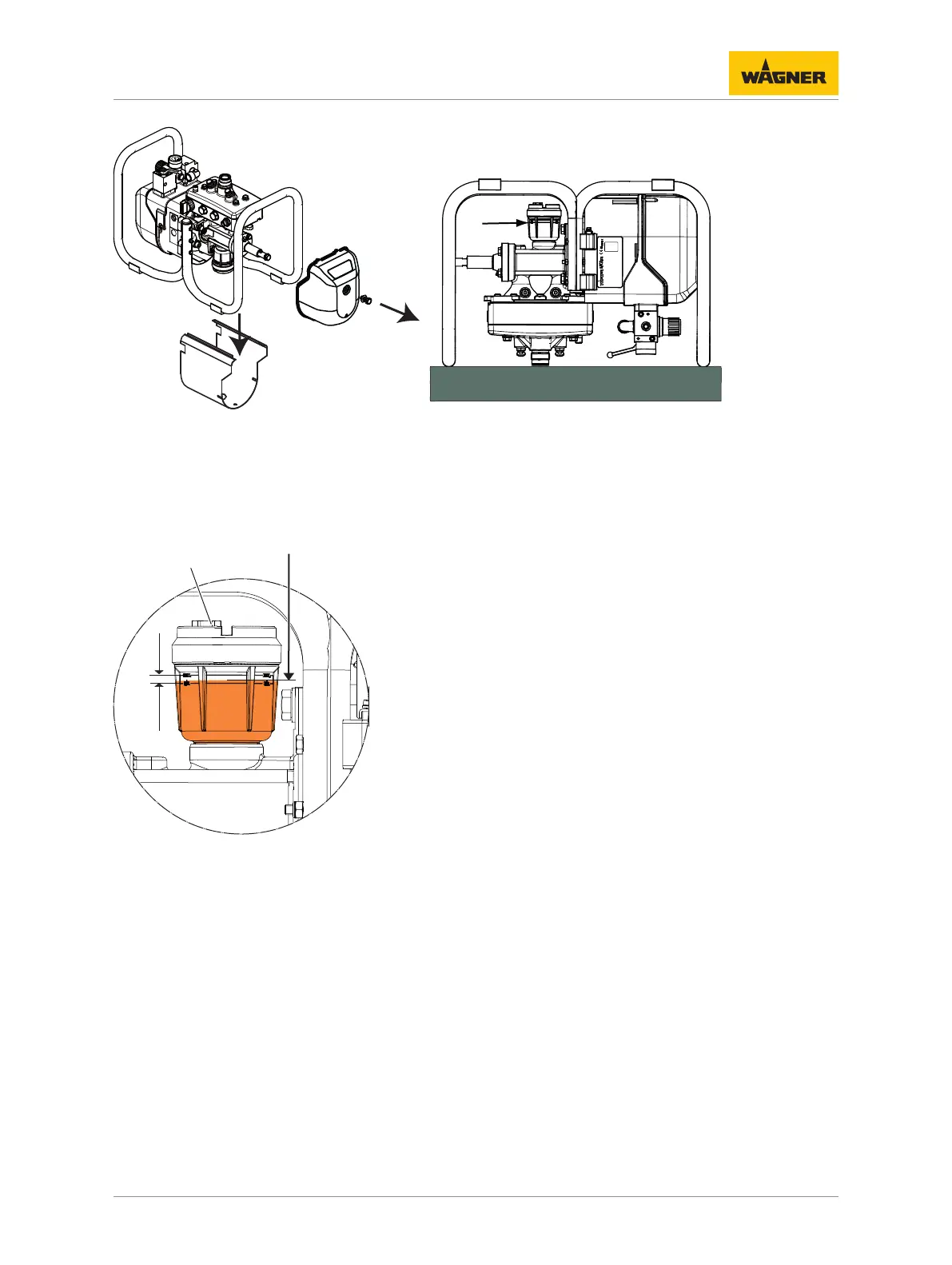

Dismount the pump and place it upside down on a suitable underlay and position it
horizontally.
B_04243
A
5
X
Observe the fill level marking X on the oil tank. Oil level A in the oil tank has to be within the
specified markings (X).
If the level deviates from these markings, the hydraulic oil must be topped up.
1. Unscrew and remove threaded plug (5).
2. Top up oil to level A (middle of marking X).
3. Start up the pump for a short time without any product and check for air bubbles.
4. Screw in threaded plug (5) and tighten with 2 Nm; 1.5 lbft.
