Operating manual High-pressure double diaphragm pumps Cobra 40-10; Cobra 40-25
14 Spare Parts
66 Order number 2340851 | Edition 05/2022

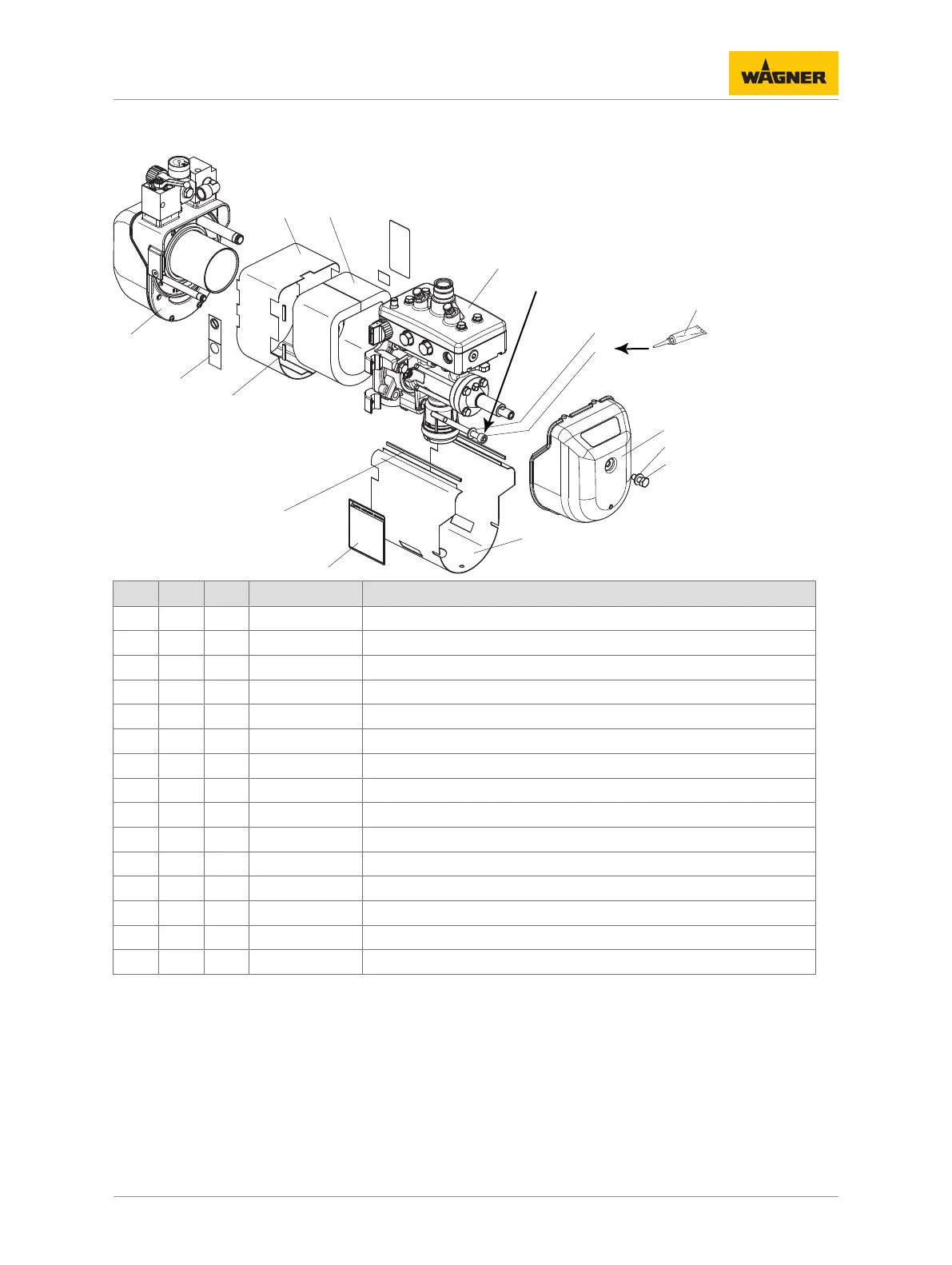

14.3 OVERVIEW OF THE COBRA 40-10 COMPONENTS
13
3
2
6
7
25 Nm; 18 lbft
10
12
11
1
9
5
4
8
7
B_04250
15
Pos K Stk Order no. Designation
1 1 -- Air motor 3/53
2 1 -- Cobra 40-10 fluid section, preassembled
3 1 322436 Air motor casing
4 1 322437 Pressure stage casing
5 1 322235 Hood 4 with air outlet
6 3 9907224 Hexagon socket head cap screw
7 4 9920106 Washer
8 1 9900107 Hexagon screw
9 1 2332077 Warning label
10 4 9999211 Edge protection profile 30 mm; 1.18 inch
11 2 9999211 Edge protection profile 164 mm; 6.46 inch
12 1 2332082 Fluid warning label
13 1 322438 Cylinder noise insulation
14 ♦ 1 9974112 Sealing ring
15 1 9992616 Molykote ® DX grease
♦ = wearing parts
