Operating manual High-pressure double diaphragm pumps Cobra 40-10; Cobra 40-25
14 Spare Parts
88 Order number 2340851 | Edition 05/2022

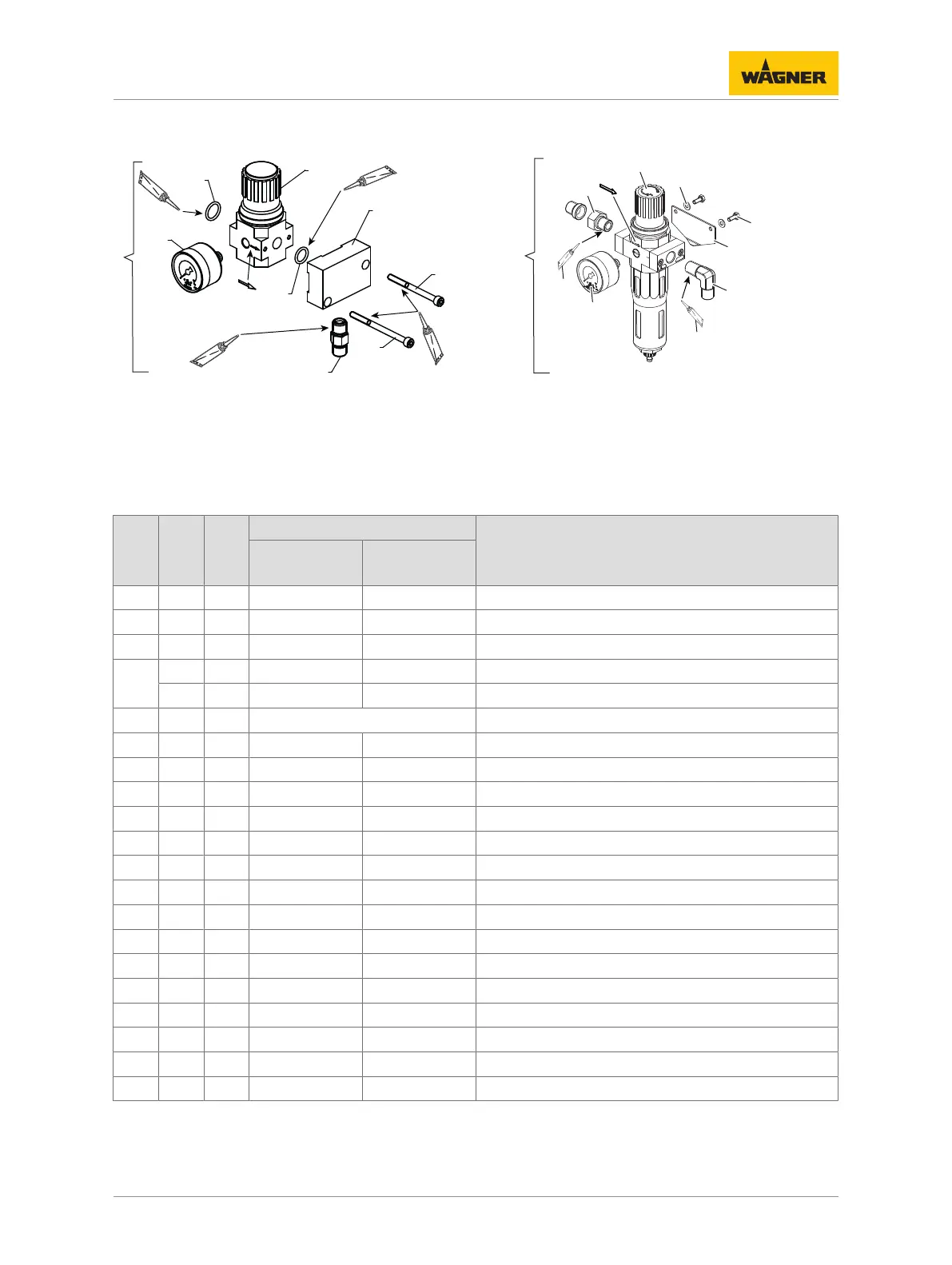

14.16 AIRCOAT REGULATOR AND AIRCOAT FILTER REGULATOR
B_05400
1
8
3
5
6
7
9
10
11
*
2
5
*
20
4
19
18
16
17
15
15
13
14
12
14
Aircoat Regulator and Aircoat Filter Regulator
Pos. 3 and/or 4: *Observe the flow direction (direction of arrow on the housing)
Pos 5: Screw in the pressure gauge until the white sealing ring is completely in the filter
control valve. Thereafter continue turning the pressure gauge only to align the display scale.
Pos. 4: Remove protective container. Mount contact plate (pos. 16). Unscrew/screw on
protective container three times (provides contact point via container coating)
Pos K Stk Order no. Designation
AirCoat regu-
lator
AirCoat filter
regulator
1 1 2328611 / AirCoat regulator set
2 1 / 2382997 AirCoat filter regulator set
3 ♦ 1 2309972 / Pressure regulator valve, LR-1/4-D-O-I-Mini
4 ♦ 1 / 2331950 Filter control valve (manual drain)
/ 2360259 Option: filter pan (automatic drain)
5 ♦ 1 9998677 Pressure gauge, 0-10 bar, RF40 (d40)
6 ♦ 1 9974166 / O-ring
7 1 2325527 / Holding plate
8 1 9906021 / Hexagon socket head cap screw
9 1 9900320 / Hexagon socket head cap screw
10 1 9994627 / Double fitting, R1/4-R1/4
11 ♦ 1 9971313 / O-ring
12 1 9992831 / Loctite® 542
13 1 9992616 / Molykote® DX grease
14 1 9998808 / Mobilux® EP 2 grease
15 1 / 9992528 Loctite® 270
16 1 / 2366466 Contact plate
17 1 / 2389277 Fitting, EF-MM-G1/4-R1/4-530bar
18 2 / 9900152 Hexagon screw without shaft
19 3 / 9920104 Washer
20 1 / 9998719 Detachable double fitting
♦ = wearing parts
