Operating manual High-pressure double diaphragm pumps Cobra 40-10; Cobra 40-25
14 Spare Parts
Order number 2340851 | Edition 05/2022
89

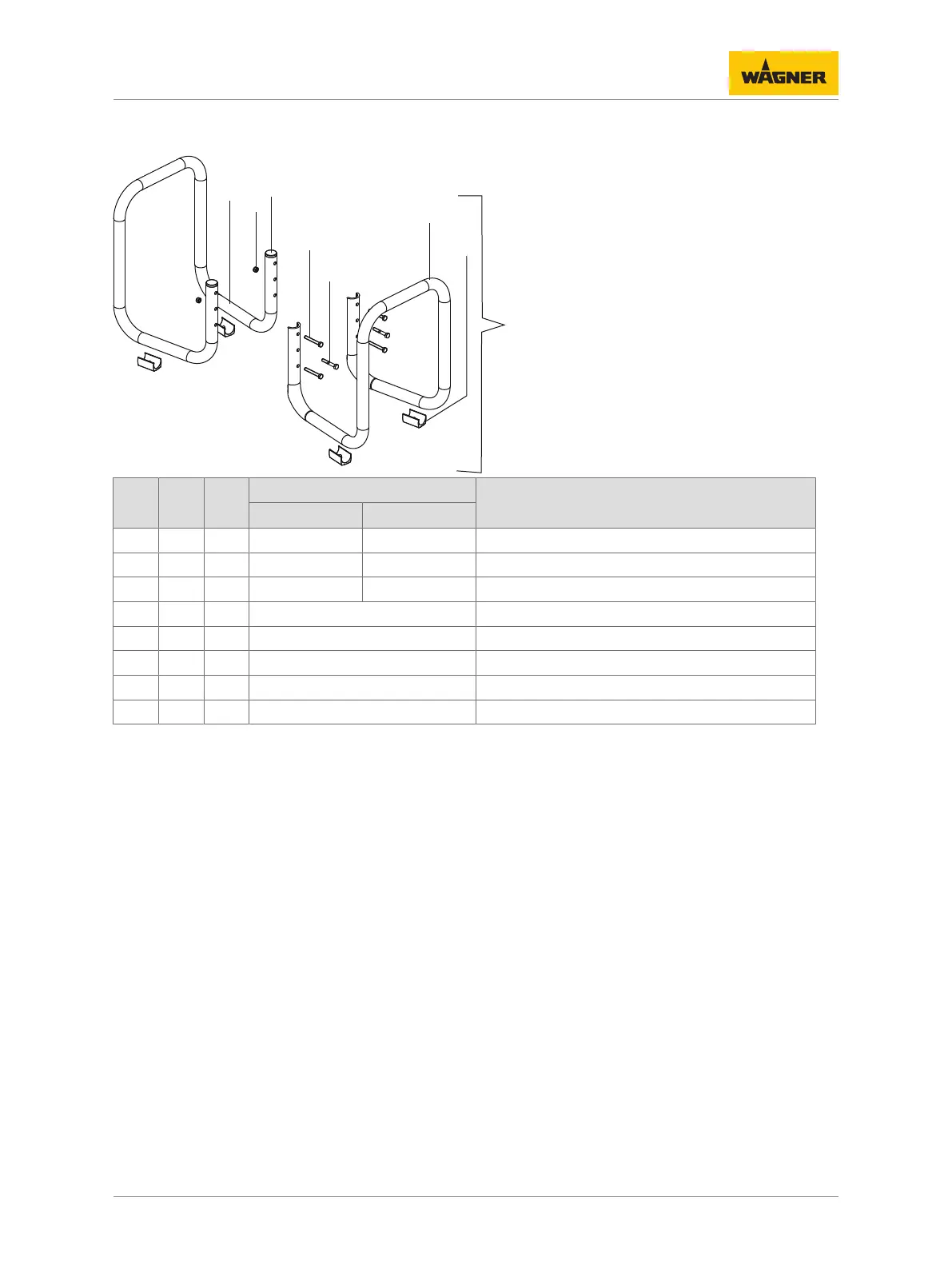

14.17 COMPLETE COBRA FRAME
B_06841
1
2
3
4
6
7
8
5
Pos
K
Stk
Order no.
Designation
40-10
40-25
1
1
322052
2308732
Frame, Cobra
2
1
--
--
Frame, pressed
3
1
--
--
Frame pipe
4
2
9990861
Plug
5
♦
4
9999209
Saddle feet for round tubes
6
2
9910204
Self-locking hexagon nut, M6
7
2
9900202
Hexagon screw, M6x40
8
4
9900126
Hexagon screw, M6x45
♦
= wearing parts
88
90
Table of Contents
Table of Contents
3
About These Instructions
6
Preface
6
Warnings, Notices and Symbols in These Instructions
6
General Characters and Symbols
6
Languages
7
Abbreviations
7
Terminology for the Purpose of this Manual
7
Using in Accordance with the Instructions
9
Device Types
9
Type of Use
9
For Use in Potentially Explosive Areas
9
Processible Working Materials
9
Misuse
10
Identification
11
Explosion Protection Identification
11
Identification "X
11
Type Plates
12
Basic Safety Instructions
14
Safety Instructions for the Operator
14
Electrical Devices and Equipment
14
A Safe Work Environment
14
Personnel Qualifications
15
Safety Instructions for the Personnel
15
Personal Safety Equipment
15
Safe Handling of WAGNER Spray Devices
16
Grounding the Device
16
Product Hoses
17
Cleaning and Flushing
17
Touching Hot Surfaces
18
Maintenance and Repair
18
Protective and Monitoring Equipment
19
Description
20
Components
20
Functioning
20
Air Motor
20
Fluid Section
21
Protective and Monitoring Equipment
21
Extent of Delivery
21
Data
22
Materials of the Parts Transporting Paint
22
Technical Data
22
Dimensions and Connections
24
Volume Flow
25
Performance Diagrams
26
Pressure Regulator Unit
28
High-Pressure Filter (Option)
28
Assembly and Commissioning
30
Training of Assembly/Commissioning Personnel
30
Storage Conditions
30
Installation Conditions
30
Transportation
30
Assembly and Installation
30
Ventilation of the Spray Booth
32
Air Supply Lines
32
Product Supply Lines
33
Grounding
33
Start up
35
Preparation
35
Fill the Pump with Flushing Agent
35
Pressure Tightness Test
36
Verifying a Safe Operational Condition
36
Filling with Working Product
36
Operation
37
Training the Operating Personnel
37
Emergency Stop
37
Tasks
37
Pressure Relief / Work Interruption
38
Basic Flushing
39
Filling with Working Product
40
Cleaning and Maintenance
41
Cleaning
41
Cleaning Personnel
41
Decommissioning and Cleaning
41
Storing for Longer Periods of Time
41
Maintenance
42
Maintenance Personnel
42
Maintenance Instructions
42
Safety Checks and Maintenance Intervals
42
Condensate Drain from the Aircoat Filter Regulator
43
Product Hoses, Pipes and Couplings
43
Emptying Pump
44
Filling the Empty Pump
45
Cleaning and Replacing the Filter
46
Hydraulic Stage Maintenance
49
Checking the Oil Level
50
Oil Change
51
Trouble Shooting and Solution
54
Repairs
56
Repair Personnel
56
Repair Notes
56
Tools
56
Cleaning the Parts after Disassembly
57
Assembly of the Device
57
Function Test after Repair Work
58
Disposal
59
Device
59
Consumable Products
59
Accessories
60
Cobra 40-10 Accessories
60
Cobra 40-25 Accessories
62
Spare Parts
65
How to Order Spare Parts
65
Notes on Using Spare Parts
65
Overview of the Cobra 40-10 Components
66
Cobra 40-10 Air Motor
67
Cobra 40-10 Fluid Section
70
Overview of the Cobra 40-25 Components
74
Cobra 40-25 Air Motor
75
Cobra 40-25 Fluid Section
78
Cobra 40-10 Inlet Valve
82
Inlet Valve Depressor
82
Cobra 40-25 Inlet Valve
83
Relief Valve
84
High-Pressure Filter, 530 Bar
85
Angled Inline Filter, 530 Bar
86
Straight Inline Filter, 270 Bar
87
Aircoat Regulator and Aircoat Filter Regulator
88
Complete Cobra Frame
89
Horizontal Cobra Mobile Base
90
Complete Trolley
92
Liter Tank
93
Liter Tank
94
Declaration of Conformity
95
EU Declaration of Conformity
95
