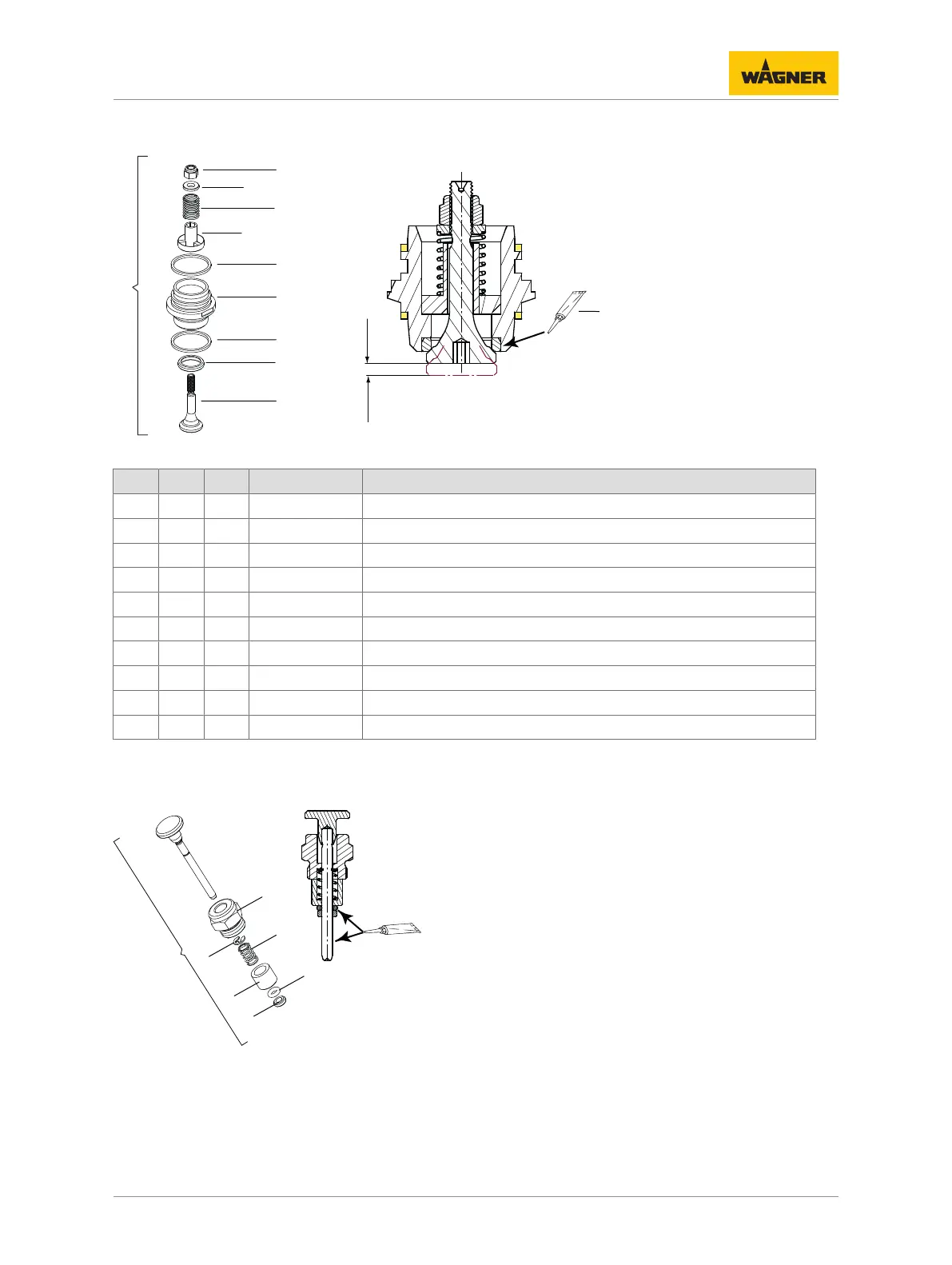

14.9 COBRA 40-10 INLET VALVE
2
3
4
5
6
7
11
6
8
1
10
1.9 ±0.1
B_01230
Regarding items 8 and 10: Adhesive surface: Pretreated with fast cleaner Loctite ® type 7063.
Pos K Stk Order no. Designation
1 ♦ 1 322914 Complete Cobra 40-10 inlet valve set
2 2 9912100 Hexagon nut with clamp
3 2 344334 Spring guide
4 2 190304 Pressure spring
5 2 158333 Guide
6 ♦ 4 341331 Sealing ring
7 2 344322 Valve housing
8 ♦ 2 340346 Valve seat
10 ♦ 1 9992528 Loctite ® 270 50 ml; 50 cc
11 2 340342 Valve cone
♦ = wearing parts
14.10 INLET VALVE DEPRESSOR
B_01232
7
4
5
6
3
2
1
Regarding items 1 and 5: Grease with Vaseline.
