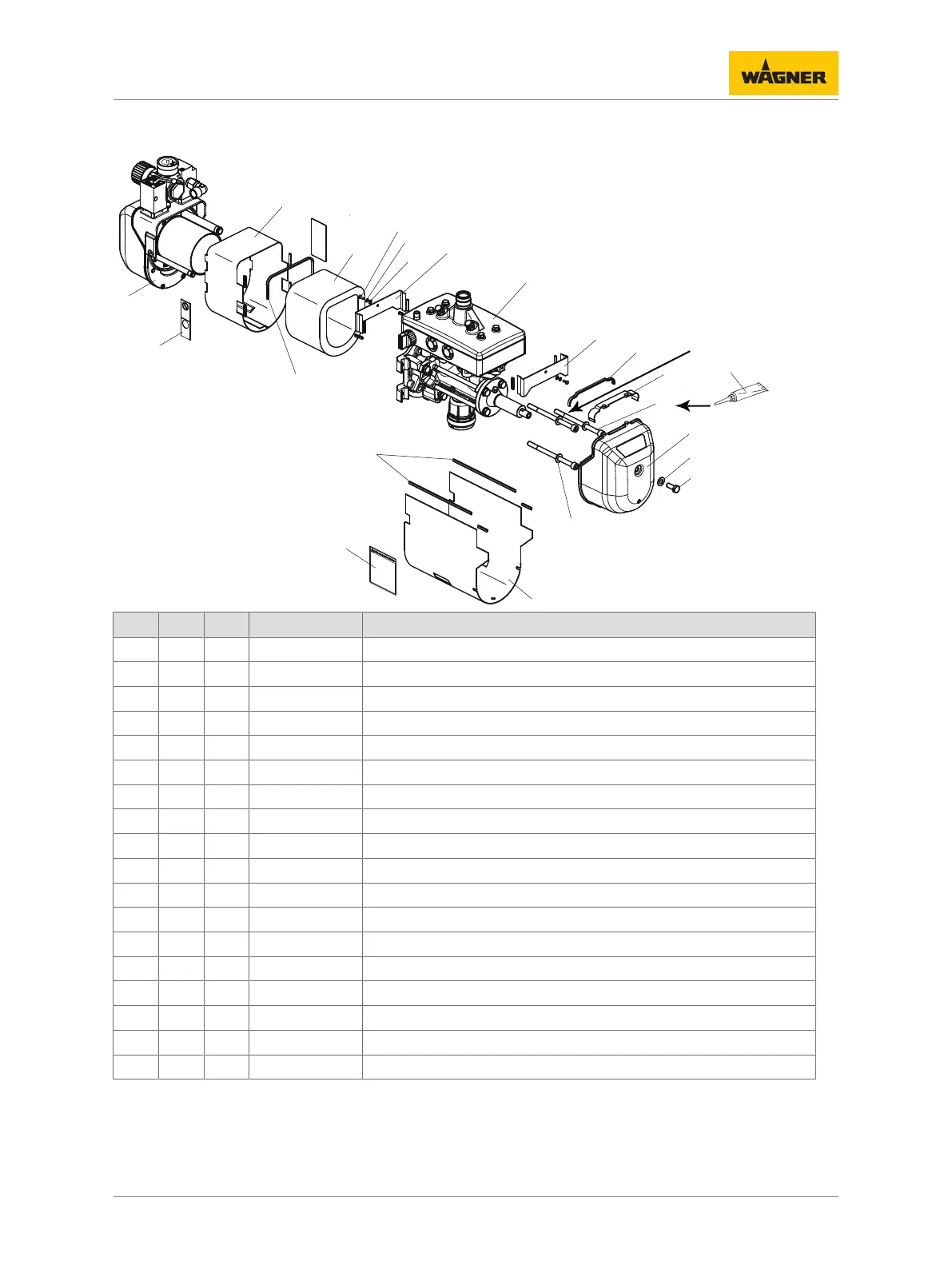

14.6 OVERVIEW OF THE COBRA 40-25 COMPONENTS
20
15
1
8
7
17
5
20
4
3
3
10
14
12
2
9
16
16
B_04254
20
6
13
25 Nm; 18 lbft
21
Pos K Stk Order no. Designation
1 1 -- Cobra 40-25 air motor
2 1 -- Cobra 40-25 fluid section, preassembled
3 4 9920106 Washer
4 1 322235 Hood 4 with air outlet
5 3 2308693 Hexagon socket head cap screw
6 1 9900107 Hexagon screw without shaft
7 1 2332077 Warning label
8 1 2332082 Fluid warning label
9 2 9920104 Washer
10 2 9900152 Hexagon screw
12 2 9922107 Lock washer with internal teeth
13 1 2308646 Cylinder noise insulation
14 1 2306110 Air motor casing
15 1 2306111 Pressure stage casing
16 2 2306114 Fluid section bulkhead
17 1 2308620 Pressure stage casing
20 1 9999211 Edge protection profile (total length: 0.80 m; 2.62 ft)
21 1 9992616 Molykote ® DX grease
♦ = wearing parts
