Operating manual High-pressure double diaphragm pumps Cobra 40-10; Cobra 40-25
14 Spare Parts
Order number 2340851 | Edition 05/2022 83
Pos K Stk Order no. Designation
1 1 341241 Inlet valve depressor, complete
2 1 9922724 Lock washer 3.2
3 1 341377 Sleeve
4 1 9994275 Pressure spring
5 ♦ 1 9971486 O-ring, 4x2
6 ♦ 1 341316 Scraper
7 1 341375 Screw plug
♦ = wearing parts

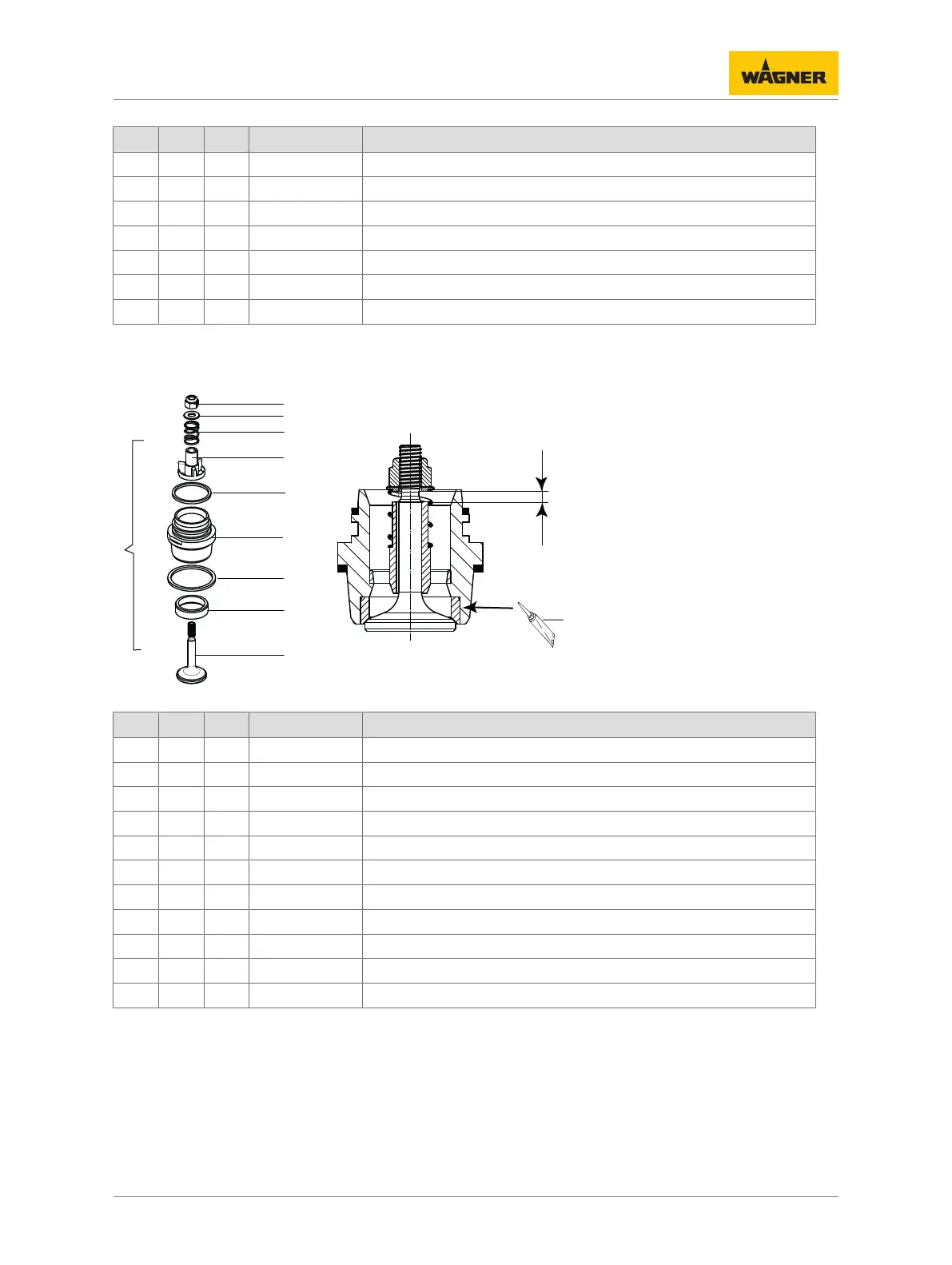

14.11 COBRA 40-25 INLET VALVE
B_02942
2
2.3
4
7
6
1
5
9
11
8
3
10
0
-0.1
Regarding items 8 and 10: Adhesive surface: Pretreated with fast cleaner Loctite ® type 7063.
Pos K Stk Order no. Designation
1 ♦ 1 2308753 Complete Cobra 40-25 inlet valve set
2 2 9912100 Hexagon nut with clamp
3 2 253324 Spring guide
4 2 9994304 Pressure spring
5 2 341344 Valve guide
6 ♦ 2 341330 Sealing ring
7 2 -- Valve housing
8 ♦ 2 341385 Valve seat
9 ♦ 2 341331 Sealing ring
10 1 9992528 Loctite ® 270 50 ml; 50 cc
11 ♦ 2 341395 Valve cone
♦ = wearing parts
