Operating manual High-pressure double diaphragm pumps Cobra 40-10; Cobra 40-25
6 Assembly and Commissioning
34 Order number 2340851 | Edition 05/2022
B_06818
R max < 1 MΩ
2
1
3
4
5
6

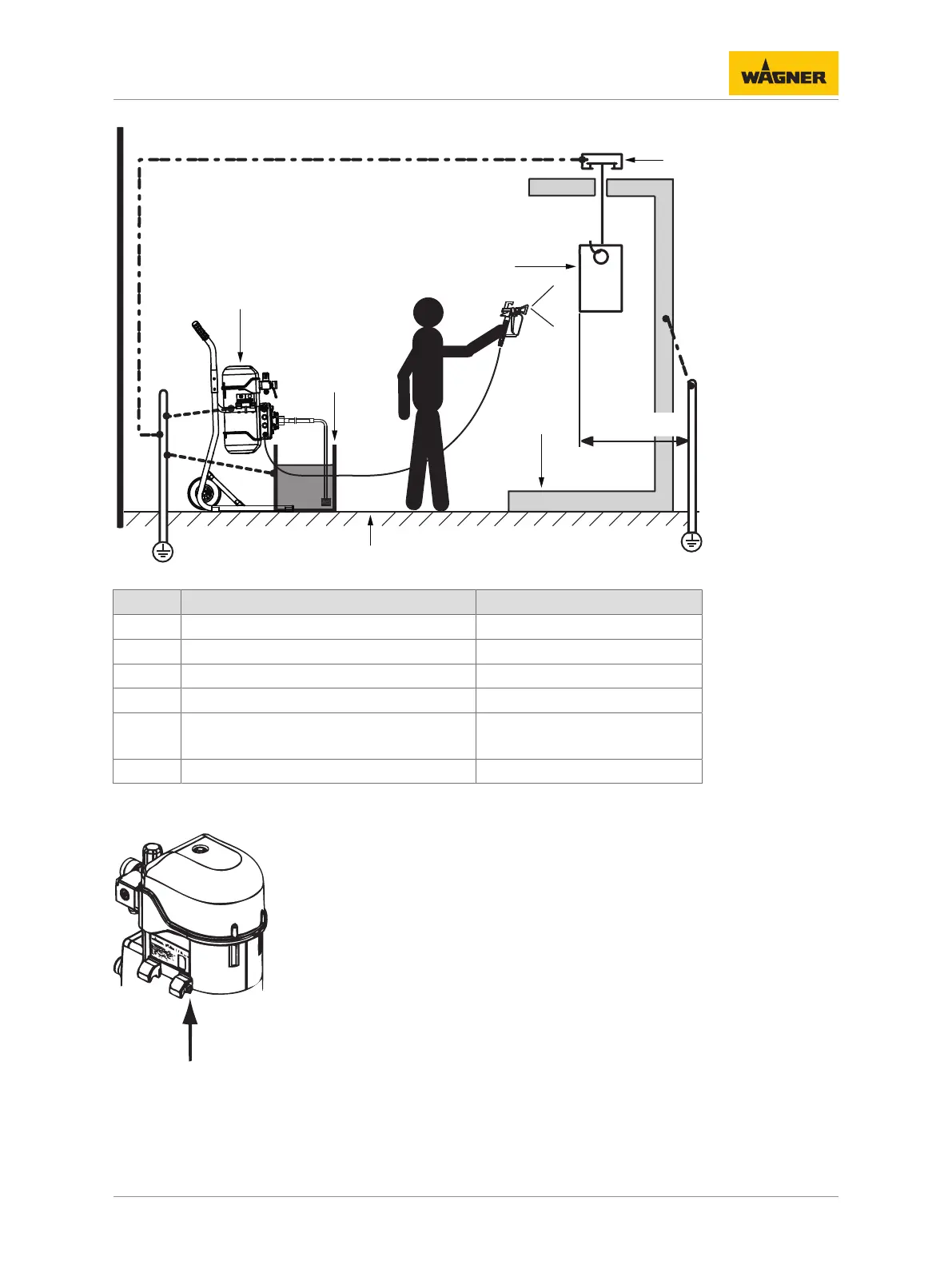

Earthing schema (example)
Pos Part / workstation Cable cross section
1 Conveyor 16mm²; AWG6
2 Work piece --
3 Pump 4mm²; AWG12
4 Product tank 6mm²; AWG10
5 Spraying stand
Alternative: Spray booth
16mm²; AWG6
6 Floor, static dissipative --
Safe operation of the pump is only guaranteed with a grounding connection. connect all
grounding cables using a short and direct route,
B_01214
1. Screw on grounding cable with eyelet.
2. Clamp the grounding cable clip to a grounding connection on site.
3. Ground the product tank to an on-site grounding connection.
