Operating manual High-pressure double diaphragm pumps Cobra 40-10; Cobra 40-25

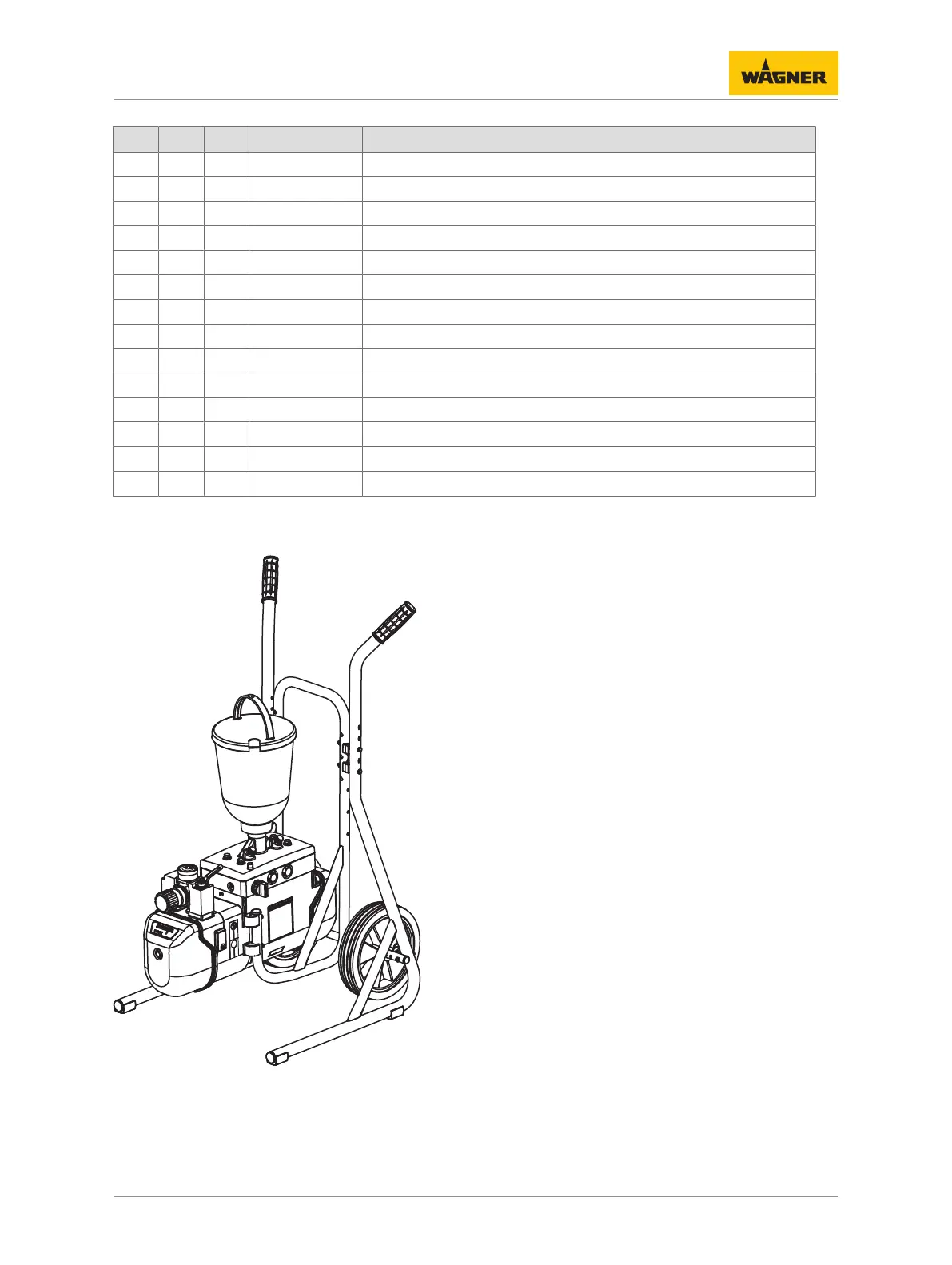

14 Spare Parts
Order number 2340851 | Edition 05/2022 91
Pos K Stk Order no. Designation
6 ♦ 2 2304440 Wheel, D250
7 4 340372 Washer
8 4 9995302 Cotter pin
9 1 -- Wheel axle 4"-6", complete
10 ♦ 2 367943 Connecting part 4"-6"
11 2 -- Tube plug, ribbed
12 ♦ 4 9998685 Saddle feet for round tubes
13 2 -- Plug
14 1 -- Frame pipe, long
15 2 3061695 Hexagon screw without shaft
16 ♦ 2 9998747 Handle
17 4 3051666 Hexagon screw, M6x40
18 4 9922017 Serrated lock washer, externally toothed
19 1 2341412 Assembly manual for Cobra horizontal mobile base
♦ = wearing parts
Mobile base and pump fitted
B_05002
