spare parts and accessorIes
Item order no. desIgnatIon
1 0097 121 High-pressure lter HF- 01 compl.
2 0097 301 Filter block
3 0097 302 Filter housing
4 0097 303 Hollow screw
5 0097 304 Seal ring
6 9970 110 Seal ring
7 9974 027 O-ring 30x2 (PTFE)
8 9971 401 O-ring 16x2 (PTFE)
9 0508 749 Bearing spring
10 0508 603 Bearing ring
11
0508 748
0508 450
0508 449
Filter insert 60 meshes
Optional:
Filter insert 100 meshes
Filter insert 30 meshes
12 9994 245 Pressure spring
11.4 SPARE PARTS LIST HIGHPRESSURE FILTER

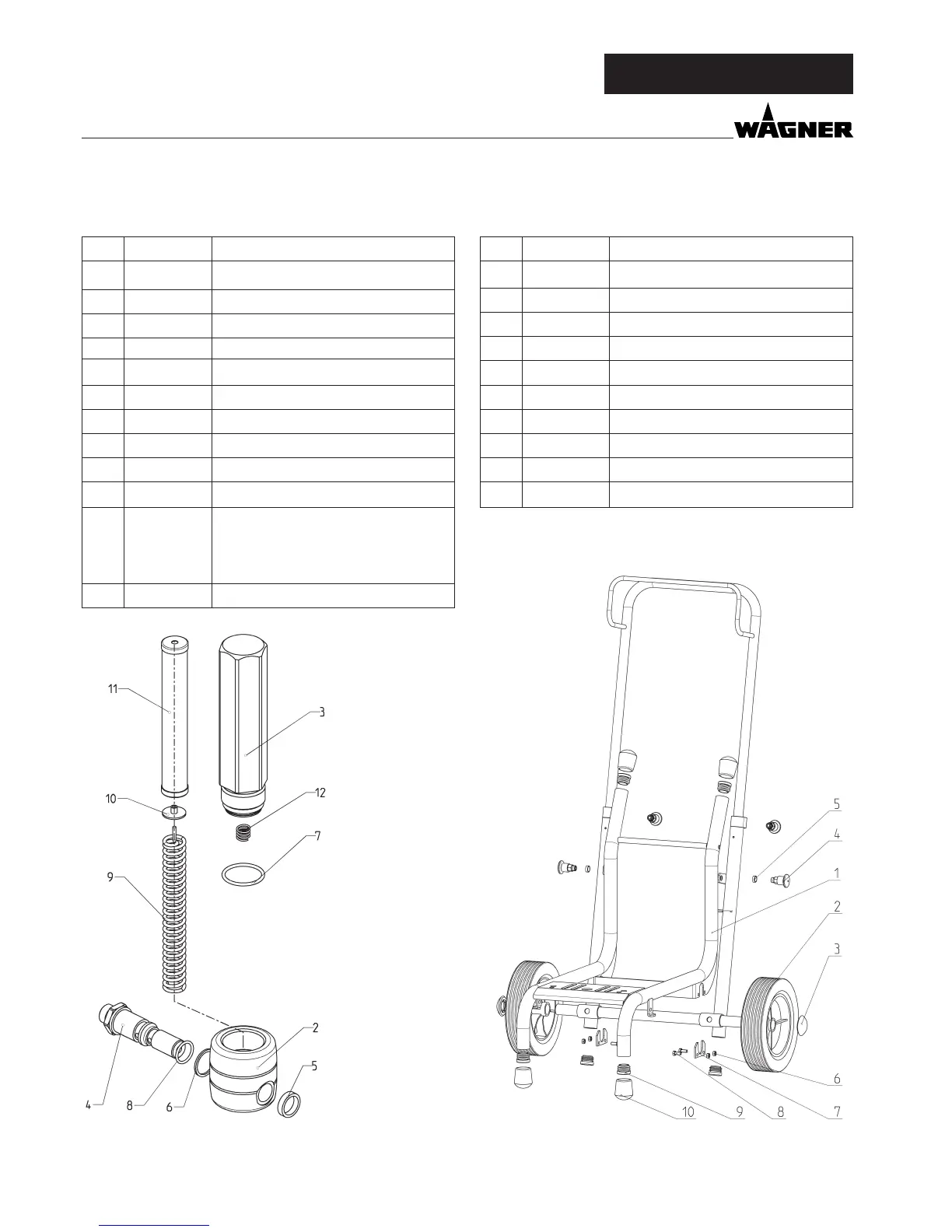

Spare parts diagram high-pressure lter
11.5 SPARE PARTS LIST TROLLEY
Item order-no. desIgnatIon
1 0252 291 Trolley assy. (for F-270)
2 9994 961 Wheel (2)
3 9994 950 Wheel cap (2)
4 0252 455 Locking pin (4)
5 0252 454 Spacer ring (2)
6 9910 106 Hexagon nut M5 (4)
7 0252 464 Sheet (2)
8 9900 142 Hexagon screw M5x12 (4)
9 9990 861 Plug (6)
10 9990 866 Rubber cap (4)
Spare parts diagram trolley F-270
