Finish 270 / 250
GB
Item order-no desIgnatIon
- 0341 265 Hopper 5l, assy.
1 0340 901 Cover
2
0037 607
0003 756
Filter disk, mesh width 0,8 mm
Optional:
Filter disk, mesh width 0,4 mm
3 9902 306 Sheet metal screw 3,9x13 (2)
4 0340 904 Hopper
5 0340 908 Return pipe
11.7 SPARE PARTS LIST HOPPER 5L

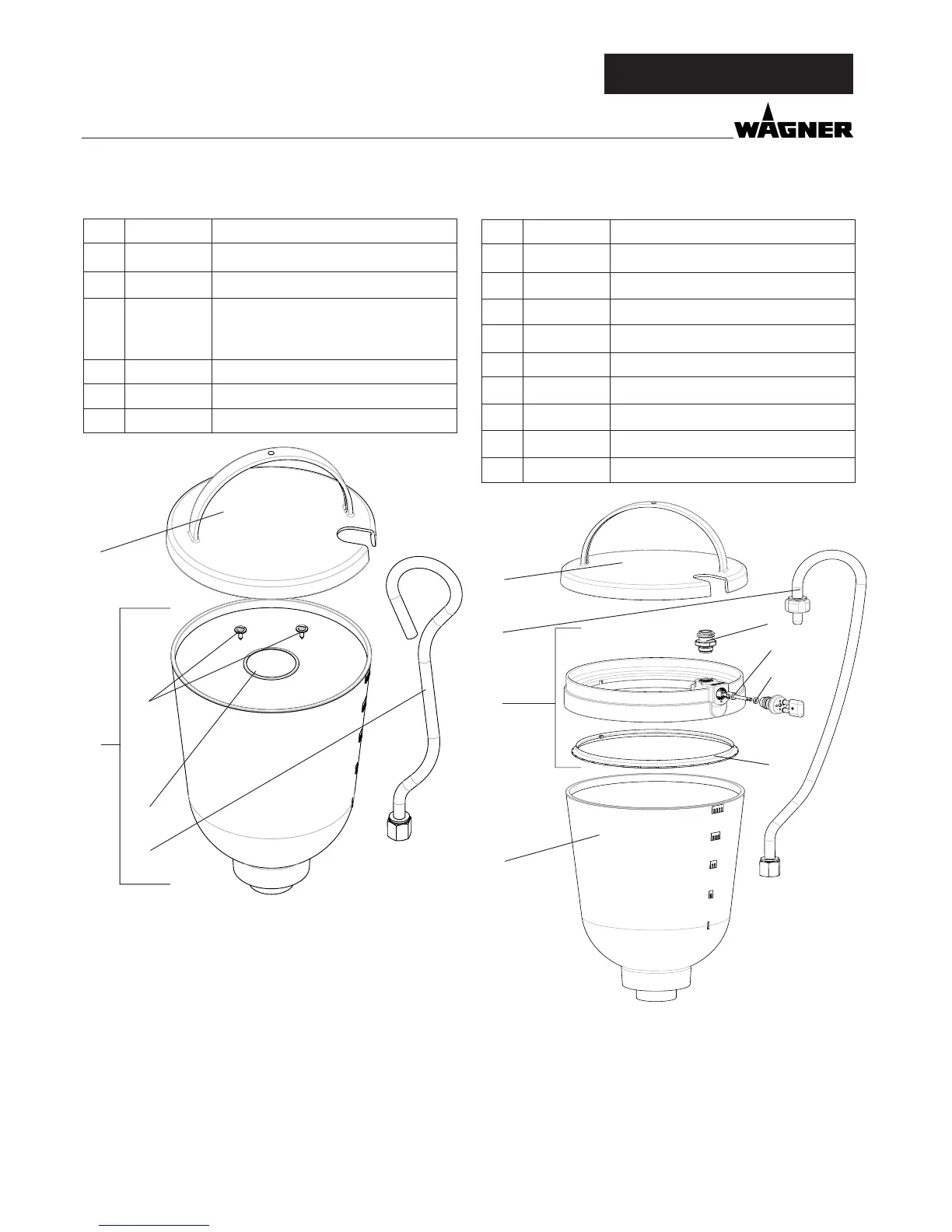

Spare parts diagram hopper
3
2
1
4
5
11.8 SPARE PARTS LIST HOPPER WITH TOPCLEAN
Item order-no desIgnatIon
- 0341 268 Hopper 5l with TopClean, assy.
1 0340 904 Hopper 5l (lter disc see 11.7)
2 0340 901 Cover
3 0340 271 TopClean, assy.
4 0340 270 Return pipe
5 0340 499 Screwing
6 0340 466 Distributor ring
7 0340 500 Rotary valve shaft
8 9971 486 O-ring 4x2 (FFPM)
Spare parts diagram hopper with TopClean
3
4
2
1
5
7
8
6
