OPERATING MANUAL
VERSION 07/2014 ORDER NUMBER DOC 2335144

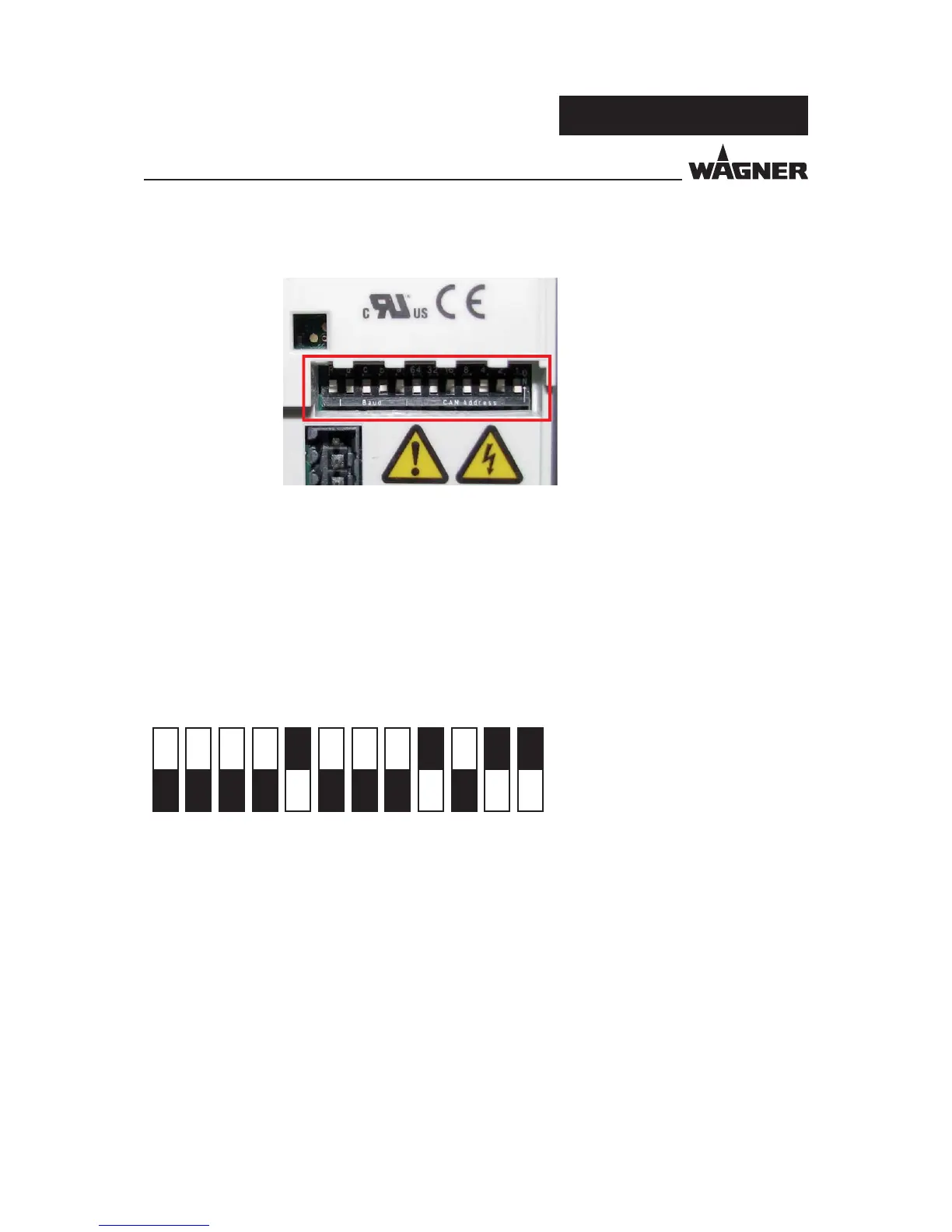

7.15.3 SETTING NODE ID'S AND BAUD RATE ON SLIDING TABLE
The CAN node ID has to be set on the sliding table's frequency converter.
The setting takes place via the DIP switch 1-64.
Setting sliding table 1: Adress 11 (DIP switch 1, 2 ,4 ON)
Setting sliding table 2: Adress 12 (DIP switch 3, 4 ON)
Further sliding tables will be consecutively numbered (13, 14; ...).
on
o
Address: 11
Baud rate: 250
Terminating resistor: OFF
The baud rate can be set with switches a to d.
The value is set to 250 KB (switch a ON) in the factory.
On the last device of the CAN loop, switch R has to be set to ON.
